Phoenix Contact MPT 1.5/S-PE Series Green/Yellow Earth Terminal Block, 1.5mm², Single-Level, Push In Termination
- RS Stock No.:
- 815-8879
- Mfr. Part No.:
- 3248110
- Brand:
- Phoenix Contact
215 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 5)
$6.294
(exc. GST)
$6.923
(inc. GST)
Units | Per unit | Per Pack* |
5 + | $6.294 | $31.47 |
*price indicative |
- RS Stock No.:
- 815-8879
- Mfr. Part No.:
- 3248110
- Brand:
- Phoenix Contact
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PL
Product Details
MPT Series Mini Ground Terminal Blocks
Space saving thanks to compact design and mounting option on a 15 mm DIN rail
Clear arrangement thanks to marking of all terminal points
Tested for railway applications
Easy potential distribution thanks to standardized plug-in bridges
Clear arrangement thanks to marking of all terminal points
Tested for railway applications
Easy potential distribution thanks to standardized plug-in bridges

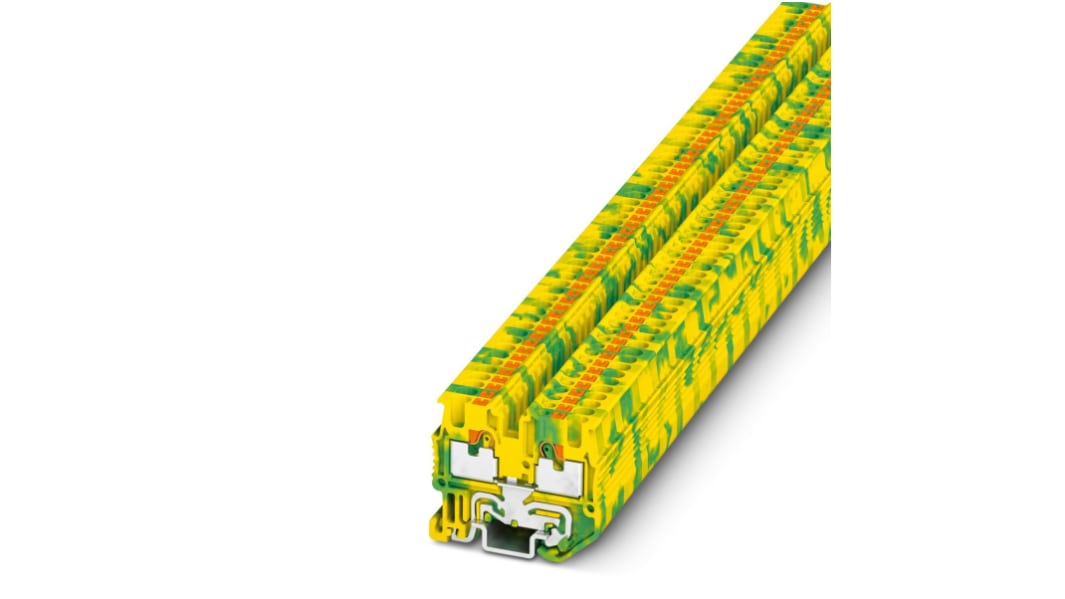

Phoenix Contact Earth Terminal Block, DIN Rail Mounting, Push-in Connection - MPT 1.5/S-PE - 3248110
Keep your electrical installations well grounded with this earth terminal block from Phoenix Contact. It's a mini block, with a compact width of 3.5mm and mounts on a 15mm DIN rail, so it's a nifty solution for busy panels. As you can quickly slot your conductors into the connectors without the need for tools, installation's a breeze. An internal spring keeps wires secure, which means there's less risk of loose connections disrupting your work. Simply hold in the orange button with a standard slotted screwdriver for hassle-free removal.
Green and yellow housing makes this unit easy to spot as an earth terminal, even in complex setups. It's rated with a surge voltage of 6kV to handle high-power applications, such as railway machinery and heavy plant engineering circuits.
Green and yellow housing makes this unit easy to spot as an earth terminal, even in complex setups. It's rated with a surge voltage of 6kV to handle high-power applications, such as railway machinery and heavy plant engineering circuits.
Features & Benefits
• Accepts solid and stranded conductors with cross-sections between 0.14 and 1.5mm² for connection flexibility
• Flame-retardant to UL 94 V-0 safety standards, meaning burning stops in 10 seconds if there's a fire
• Polyamide housing is thermally stable and durable so it's ideal for use in harsh industrial environments
• Flame-retardant to UL 94 V-0 safety standards, meaning burning stops in 10 seconds if there's a fire
• Polyamide housing is thermally stable and durable so it's ideal for use in harsh industrial environments
MPT Series
Specifications
Attribute | Value |
---|---|
Colour | Green/Yellow |
Number of Levels | Single |
American Wire Gauge | 26 → 14AWG |
Series | MPT 1.5/S-PE |
Termination Method | Push In |
Cable CSA | 1.5mm² |
Voltage Rating | 6 kV |
Minimum Operating Temperature | -60°C |
Maximum Operating Temperature | +105°C |
Standards Met | IEC 60947-7-2 |
Model Number | MPT 1,5/S-PE |
