- RS Stock No.:
- 262-4130
- Brand:
- RS PRO
262 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$36.38
(exc. GST)
$40.02
(inc. GST)
Units | Per unit |
1 + | $36.38 |
- RS Stock No.:
- 262-4130
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

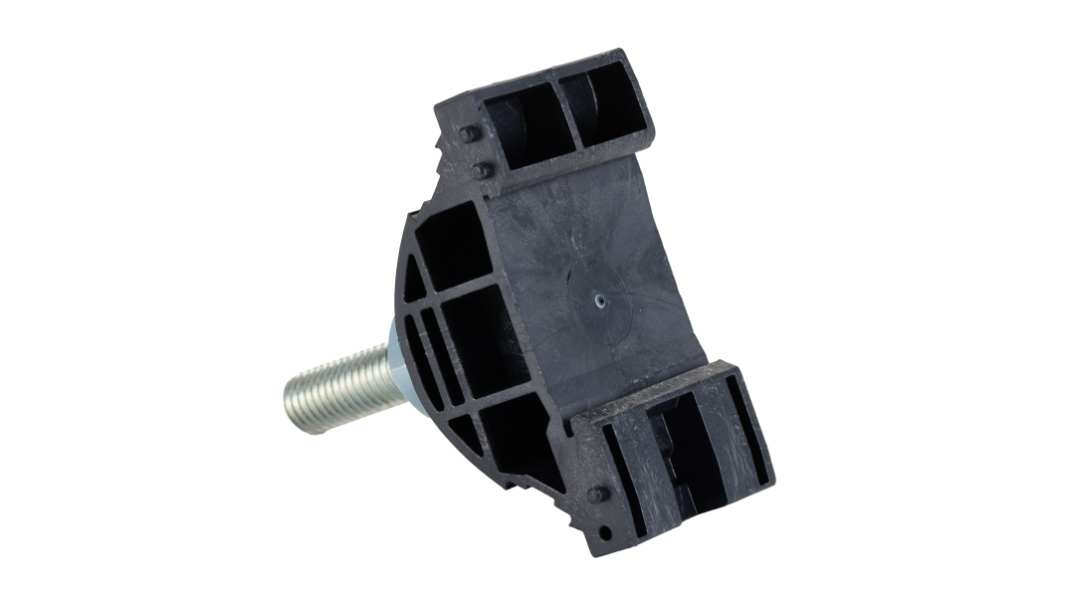

RS PRO High Current Single Bolt Terminal Block – ONE 150
Unlock the power of secure and stable connections with RS PRO ONE 95 din rail unipolar high current line-up terminal blocks. Engineered to perfection, this electrical component is a game-changer for electrical engineering. Whether you're in the industrial, commercial, or residential sector, this versatile and indispensable terminal block is your go-to solution for handling high-current circuits. Ensures reliable connection and offers a new level of efficiency and safety.
Features and Benefits
- Single high current terminal block
- Bolt connection system
- Colour: Grey
- TH35 DIN rail mounting
- Support wire size max 150 mm2, 309A – 1000 V rated
- Ideal in high-current circuits to distribution lines
- Single bolt terminal block to connect four conductors with cable lugs
Specification
- Width: 36 mm
- Height: 70 mm
- Length: 68.5 mm
- Weight: 84.2 g
You May Also Need
- RS PRO Separator – End Row, RS stock no: 262-4138
Applications
- Din rail terminal blocks
Specifications
Attribute | Value |
---|---|
Colour | Grey |
Number of Levels | 1 |
American Wire Gauge | 300 kcmilAWG |
Termination Method | Bolt |
Cable CSA | 150mm² |
Voltage Rating | 1 kV |
Current Rating | 309A |
