RS PRO DIN Rail Terminal Block Grey, 95 mm², 1-Level, Bolt

View all DIN Rail Terminal Blocks

Subtotal (1 box of 2 units)*

$61.78

(exc. GST)

$67.96

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 110 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es)
Per Box
Per unit*
1 +$61.78$30.89

*price indicative

RS Stock No.:
262-4128
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

DIN Rail Terminal Block

Colour

Grey

Number of Levels

1

Voltage

1 kV

Cable CSA

95 mm²

Minimum Wire Size AWG

3/0 AWG

Maximum Wire Size AWG

3/0 AWG

Termination Type

Bolt

Minimum Operating Temperature

-50°C

Maximum Operating Temperature

120°C

Hazardous Area Certification

No

Standards/Approvals

UL1059/EN60947-7-1/EN60068-2-11

COO (Country of Origin):
IT

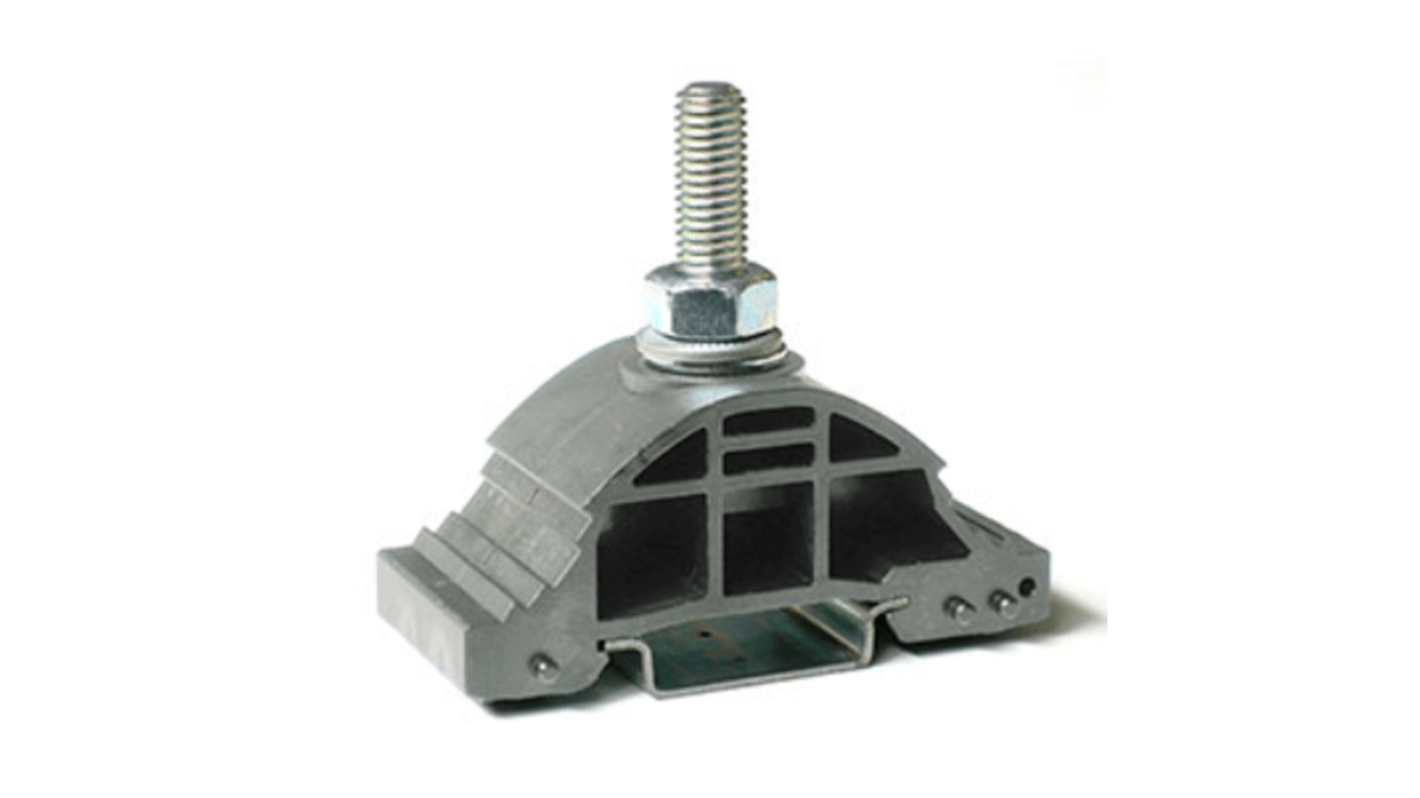

RS PRO High Current Single Bolt Terminal Block – ONE 95


Unlock the power of secure and stable connections with RS PRO ONE 95 din rail unipolar high current line-up terminal blocks. Engineered to perfection, this electrical component is a game-changer for electrical engineering. Whether you're in the industrial, commercial, or residential sector, this versatile and indispensable terminal block is your go-to solution for handling high-current circuits. Ensures reliable connection and offers a new level of efficiency and safety.

Features and Benefits


  • Single high current terminal block

  • Bolt connection system

  • Colour: Grey

  • TH35 DIN rail mounting

  • Support wire size max 95 mm2, 232A – 1000 V rated

  • Ideal in high-current circuits to distribution lines

  • Single bolt terminal block to connect four conductors with cable lugs

    • Specification


  • Width: 30 mm

  • Height: 60 mm

  • Length: 68.5 mm

  • Weight: 47.2 g

    • You May Also Need


  • RS PRO Separator – End Row, RS stock no: 262-4137

    • Applications


  • Din rail terminal blocks
