Siemens LOGO POWER Switched Mode DIN Rail Power Supply 264V ac AC Input 12V dc, 4.5 A Output DC 54 W

View all DIN Rail Power Supplies

Subtotal (1 unit)*

$218.60

(exc. GST)

$240.46

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • Plus 9 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +$218.60

*price indicative

RS Stock No.:
136-5301
Distrelec Article No.:
301-10-796
Mfr. Part No.:
6EP3322-6SB00-0AY0
Brand:
Siemens
Find similar products by selecting one or more attributes.
Select all

Brand

Siemens

Product Type

DIN Rail Power Supply

Series

LOGO POWER

Maximum Output Voltage

12V dc

Sub Type

Switched Mode

Electrical Phase

1

Number of Outputs

1

Input Voltage Type

AC

Power

54W

Output Current

4.5A

IP Rating

IP20

Minimum Operating Temperature

-25°C

Output Voltage Type

DC

Maximum Operating Temperature

70°C

Width

53mm

Hazardous Area Certification

ATEX

Standards/Approvals

UL 60950, UL 508, NEC class 2, FM, File E197259, File E151273, cURus, cULus, CSA C22.2 No. 60950, CSA C22.2 No. 107.1, CE, CB

Height

90mm

Depth

53mm

Maximum Input Voltage

230V ac

Minimum Input Voltage

85V ac

Efficiency

87.1%

COO (Country of Origin):
AT

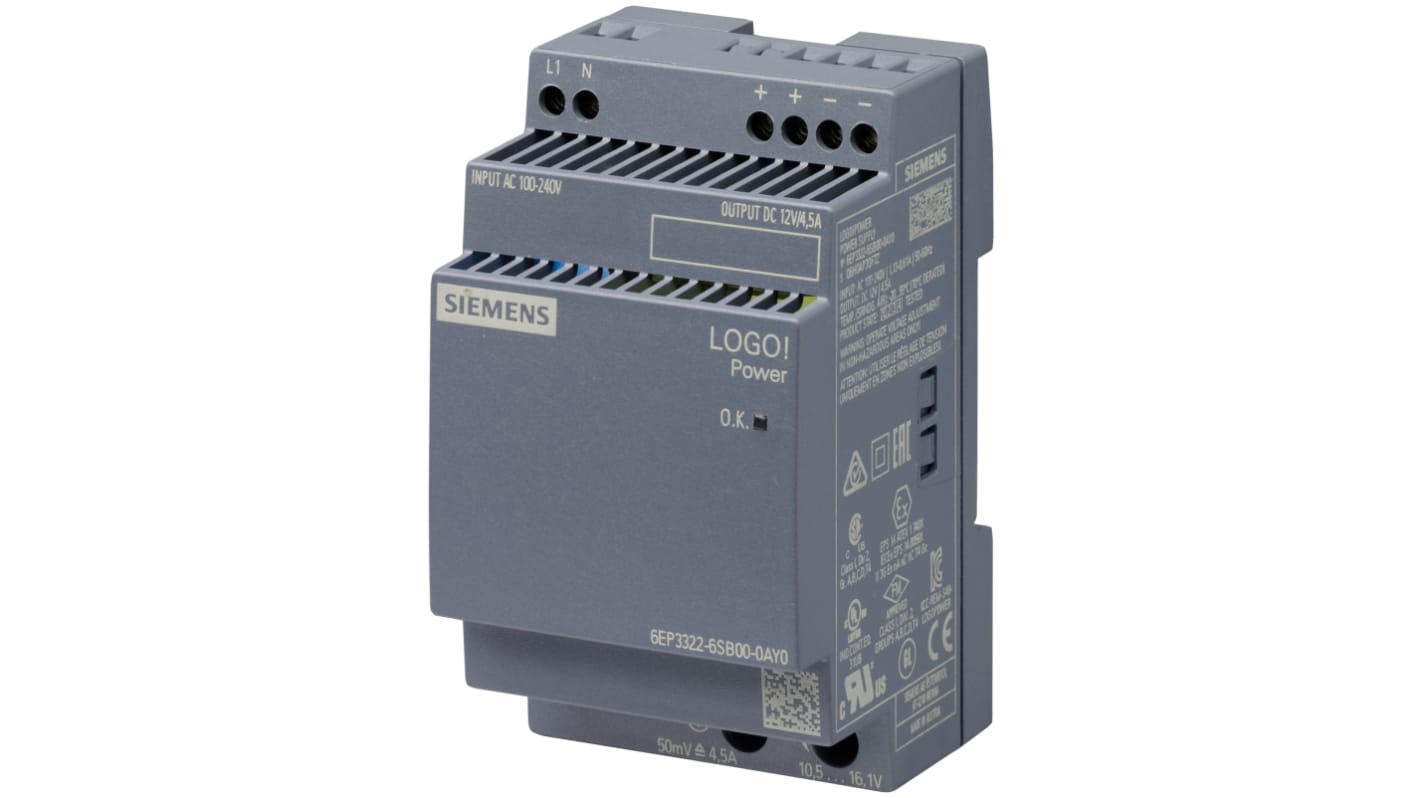

Siemens Switch-Mode Power Supply, 230V AC, 12V DC - LOGO!POWER Series - 6EP3322-6SB00-0AY0


Efficiently transfer power from an alternating current source to a direct current load with this switch-mode power supply from Siemens. It provides a high degree of productivity across an entire load range and is suited to single-phase supply systems and DC (direct current) networks. The miniature unit is designed for use in tight spaces and features a flat, stepped profile that's simple to integrate into your distribution board. Its flexible installation options allow for DIN rail, distribution board or direct wall mounting, so you can set it up according to your needs.

• MTBF (mean time between failures) of 2,566,680h for long-lasting performance

• Compact dimensions of 90 (height) x 54 (width) x 53mm (depth) for use in tight spaces

• Wide operating temperature range of -25°C to +70°C for use in demanding environments

How do you measure the current of this switch-mode power supply?


The device allows for the simple measurement of current using a voltmeter, which means there's no need to disconnect cables. This allows for current measurement without interrupting the supply of direct voltage to the system.
