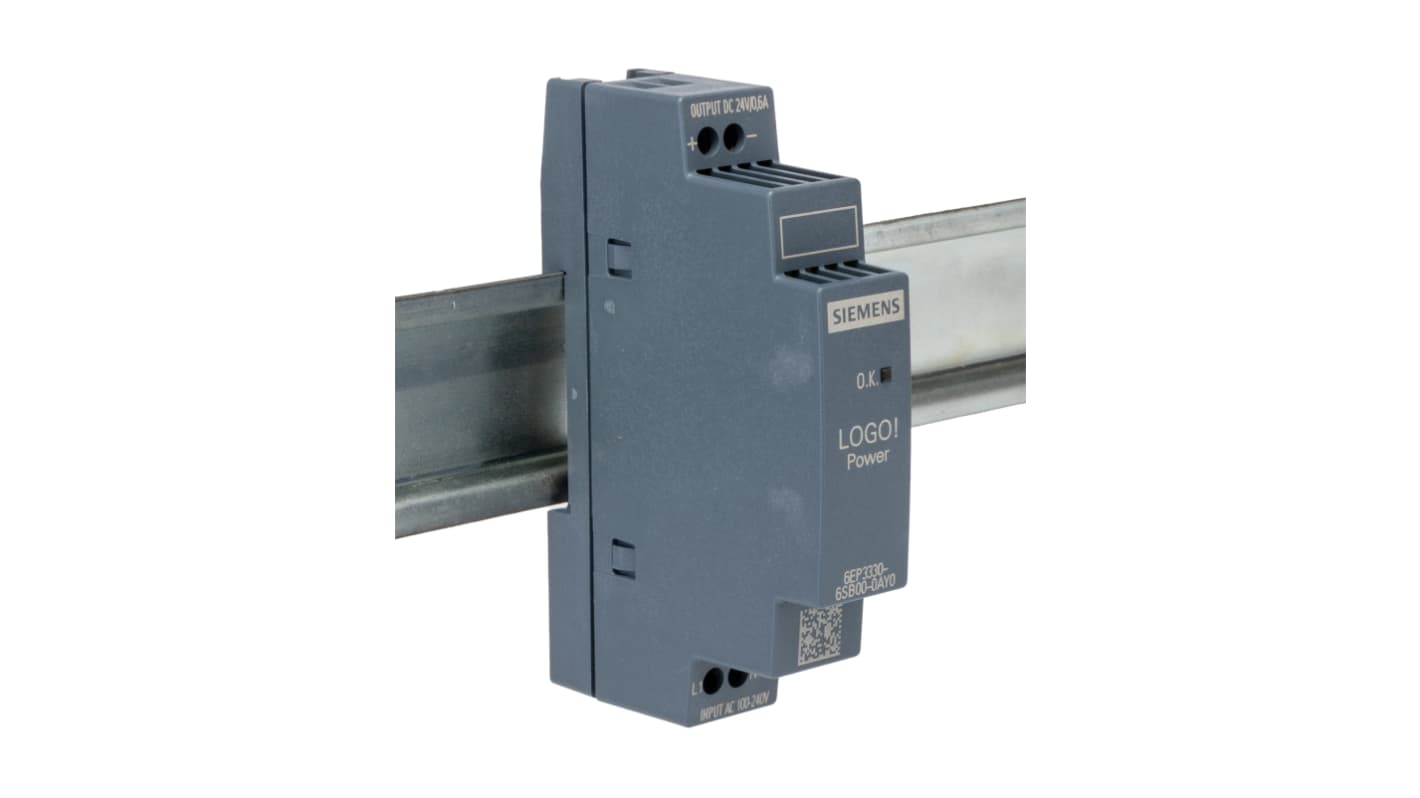

Siemens LOGO!POWER Switched Mode DIN Rail Power Supply, 100 → 240V ac, 24V dc dc Output, 600mA Output, 14W

RS Stock No.:: 136-5295
Mfr. Part No.:: 6EP3330-6SB00-0AY0
Brand:: Siemens

6 In AU stock for next working day delivery

58 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$91.94

(exc. GST)

$101.13

(inc. GST)

Units	Per unit
1 +	$91.94

RS Stock No.:: 136-5295
Mfr. Part No.:: 6EP3330-6SB00-0AY0
Brand:: Siemens

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: AT

Product Details

Siemens Switch-Mode DIN Rail Power Supply, 24V DC Output, 14W Power Rating - LOGO!POWER Series - 6EP3330-6SB00-0AY0

This miniature switch-mode power supply from Siemens ensures reliable power delivery during outages caused by incidents like lightning strikes or electrical fluctuations. Install this unit to prevent unforeseen equipment downtimes that affect production results. Thanks to compact dimensions of 18 (W) x 53 (D) x 90mm (H), it's an ideal backup solution if you have limited space. This versatile product has a wide-range input for single-phase supply systems and for DC (direct current) power networks, making it suitable for various applications such as power distribution boards and data storage systems.

• DIN rail or wall mounting for flexibility
• Wide operating temperature range of -25°C to +70°C for use in heavy-duty indoor and outdoor environments
• Simple output current measuring enables measurements without disconnecting the cable

What are the benefits of using a DIN rail power supply?

DIN rail mounting systems enable quicker installation time as you can simply snap devices onto the metal rails. These rails also allow for neat organisation of power supplies within wall boxes or other restricted areas.

Specifications

Attribute	Value
Type	Switched Mode
Output Voltage	24V dc
Output Current	600mA
AC or DC Output Voltage	dc
Input Voltage	100 → 240V ac
Power Rating	14W
Electrical Phase	1
Number of Outputs	1
Height	90mm
Width	18mm
Depth	53mm
Series	LOGO!POWER
Special Features	Flexible Deployment, Flexible Mounting, Global Use, High Energy Efficiency, Load Monitoring, Low Width, Reliable, Wide Portfolio
Load Regulation	0.1%
MTBF	4415040h
Ripple And Noise	200mV Pk-Pk
Efficiency	81%
Minimum Temperature	-25°C
Mounting Type	DIN Rail Mount
Standards Met	CB, CE Marked, CSA C22.2 No. 107.1, CSA C22.2 No. 60950, cULus, cURus Recognised, File E151273, File E197259, FM Approval, NEC Class 2, UL 508, UL 60950
Maximum Temperature	+70°C
