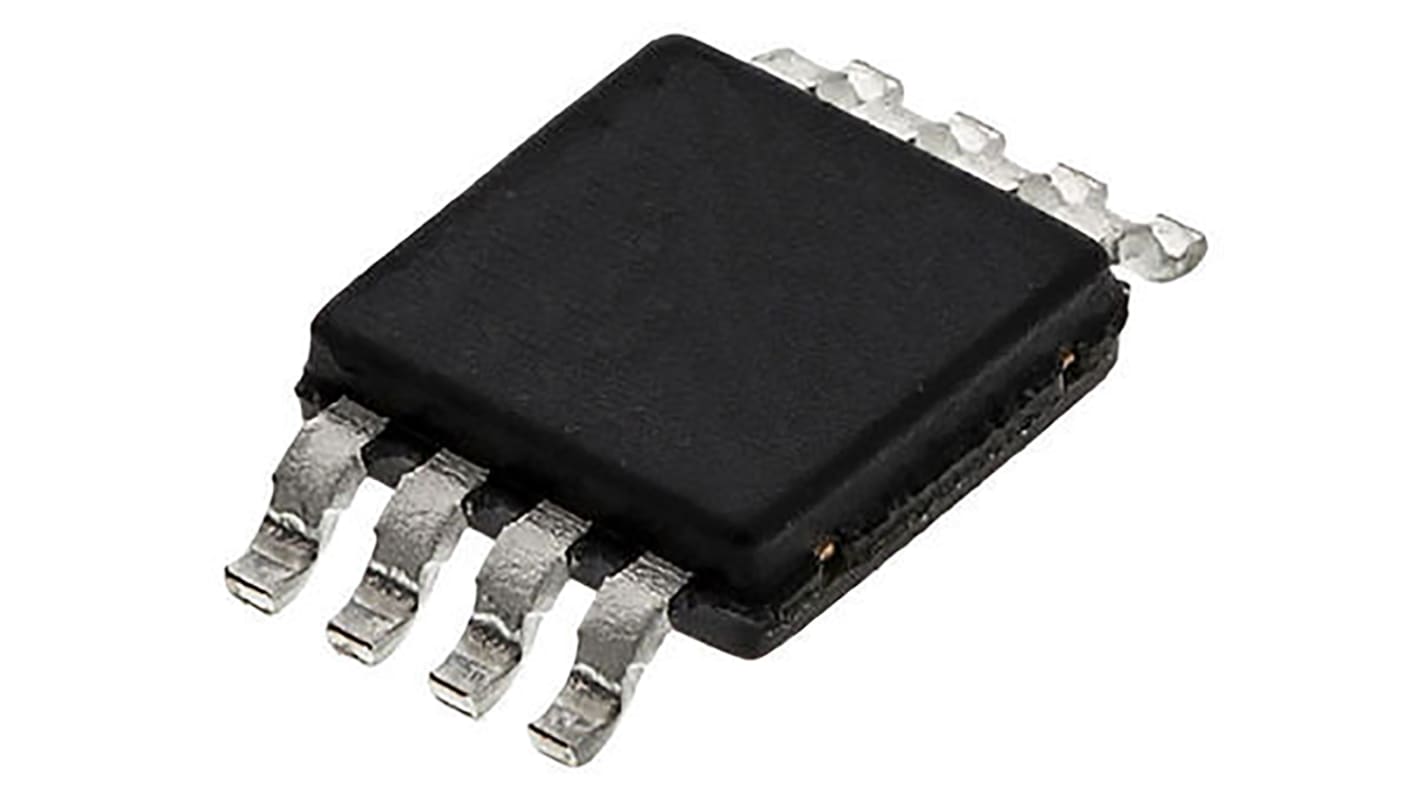

Texas Instruments, DAC 16 bit-, 93ksps, ±1.25%FSR Serial (SPI/QSPI/Microwire), 8-Pin MSOP

RS Stock No.:: 121-9190
Mfr. Part No.:: DAC8501E/250
Brand:: Texas Instruments

Texas Instruments, DAC 16 bit-, 93ksps, ±1.25%FSR Serial (SPI/QSPI/Microwire), 8-Pin MSOP

441 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each (On a Reel of 250)

$10.857

(exc. GST)

$11.943

(inc. GST)

Units	Per unit	Per Reel*
250 - 250	$10.857	$2,714.25
500 - 750	$10.586	$2,646.50
1000 +	$10.423	$2,605.75

*price indicative

RS Stock No.:: 121-9190
Mfr. Part No.:: DAC8501E/250
Brand:: Texas Instruments

Technical data sheets

ESD Control Selection Guide V1

Legislation and Compliance

Product Details

Digital to Analogue Converters 16 Bit, Texas Instruments

A range of 16-bit Digital to Analogue converters from Texas Instruments for general purpose and specialized audio applications. The range includes both Parallel and Serial interface types and covers various DAC architectures including Current Steering and Delta-Sigma types.

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Digital to Analogue Converters - Texas Instruments

Specifications

Attribute	Value
Architecture	Resistor String
Resolution	16 bit
Conversion Rate	93ksps
Full Scale Error	±1.25%FSR
Integral Nonlinearity Error	±0.098%FSR
Number of DAC Channels	1
Mounting Type	Surface Mount
Package Type	MSOP
Pin Count	8
Maximum Settling Time	10µs
Digital Interface Type	Serial (SPI/QSPI/Microwire)
Output Polarity	Unipolar
Voltage Reference	External
Typical Single Supply Voltage	3.3 V, 5 V
Power Supply Type	Single
Dimensions	3 x 3 x 0.97mm
Maximum Operating Temperature	105 °C
Minimum Operating Temperature	-40 °C
