TRACOPOWER THN 30WI DC/DC Converter, 12V dc/ 2.5 A, 36V dc Input, 9V Input 30 W, PCB, 80 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 781-3418
- Distrelec Article No.:
- 110-50-352
- Mfr. Part No.:
- THN 30-2412WI
- Brand:
- TRACOPOWER

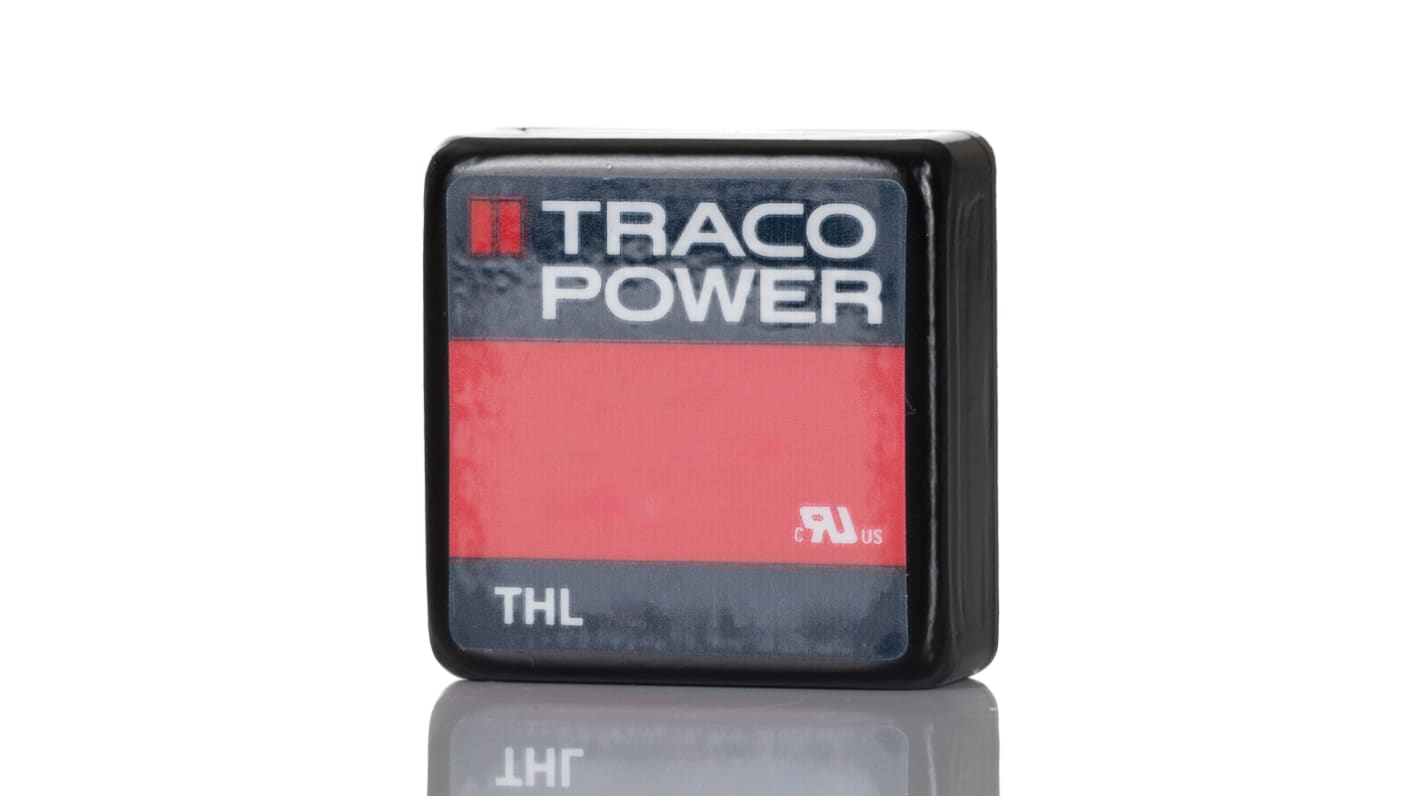

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$138.78
(exc. GST)
$152.66
(inc. GST)
FREE delivery for orders over $80.00 ex GST
In Stock
- 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 2 | $138.78 |
| 3 - 4 | $136.35 |
| 5 + | $133.22 |
*price indicative
- RS Stock No.:
- 781-3418
- Distrelec Article No.:
- 110-50-352
- Mfr. Part No.:
- THN 30-2412WI
- Brand:
- TRACOPOWER
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 12V dc | |
| Minimum Input Voltage | 9V | |
| Maximum Input Voltage | 36V dc | |
| Output Current 1 | 2.5A | |
| Mount Type | PCB | |
| Input Ratio | 4:1 | |
| Number of Outputs | 1 | |
| MTBF | 1200000h | |
| Output Voltage Adjustment Range | 10.8/13.2 V dc | |
| Number of Pins | 6 | |
| Isolation Voltage | 1.5kV dc | |
| Package Type | Shielded Metal Case with Isolated Baseplate | |
| Maximum Output Power | 30W | |
| Depth | 9.9mm | |
| Width | 25.4mm | |
| Series | THN 30WI | |
| Length | 25.4mm | |
| Standards/Approvals | No | |
| Maximum Operating Temperature | 80°C | |
| Efficiency | 89% | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type DC/DC Converter | ||
Output Voltage 1 12V dc | ||
Minimum Input Voltage 9V | ||
Maximum Input Voltage 36V dc | ||
Output Current 1 2.5A | ||
Mount Type PCB | ||
Input Ratio 4:1 | ||
Number of Outputs 1 | ||
MTBF 1200000h | ||
Output Voltage Adjustment Range 10.8/13.2 V dc | ||
Number of Pins 6 | ||
Isolation Voltage 1.5kV dc | ||
Package Type Shielded Metal Case with Isolated Baseplate | ||
Maximum Output Power 30W | ||
Depth 9.9mm | ||
Width 25.4mm | ||
Series THN 30WI | ||
Length 25.4mm | ||
Standards/Approvals No | ||
Maximum Operating Temperature 80°C | ||
Efficiency 89% | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TW
Traco Power DC-DC Converter, 1 (W) x 1 (L) x 0.4in (D) Package, 89% Conversion Efficiency - THN 30WI Series - THN 30-2412WI
To GET your power supply in line with your kit's demands, reach for this DC-DC converter from Traco Power. It delivers a smooth and steady output of 12V DC from inputs ranging between 9 and 36V DC. This prevents equipment damage or inefficiency caused by over-voltage or under-voltage. As the unit converts 89% of its load, you can be sure it wastes minimal power as it works. Thanks to integral short-circuit and overtemperature protection, it nips electrical faults in the bud.
Features & Benefits
• Remote on/off function supports convenient circuit switching from a control device
• Output voltage accuracy of ±1% for reliable power supply
• Through-hole mounting for quick and secure soldering to PCB
• Turns on in 30ms, so you can be sure of speedy responses
• Comes in a Compact 1 x 1" package to fit into busy systems
Applications
• Security equipment
• Retail units
• Industrial networking
Can I install this converter into a system with high EMI levels?
Yes, this unit's metal casing provides effective shielding against electrical interference, keeping its output reliable even when it's working in a setting with high EMI levels.
