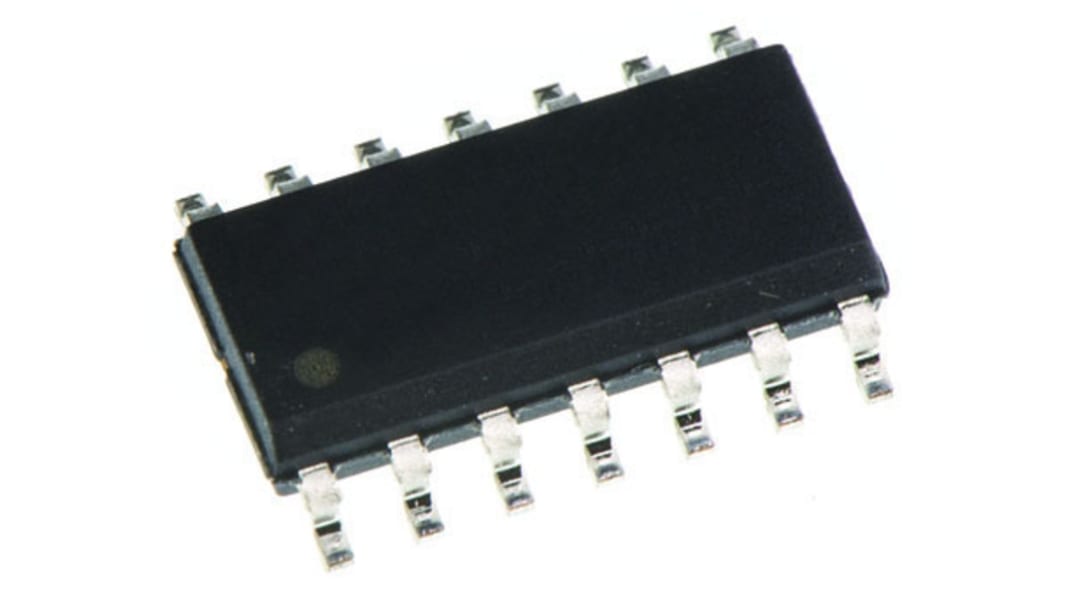

Name: XTR105U Texas Instruments, 4 → 20 mA Current Loop Transmitter 14-Pin SOIC
Brand: Texas Instruments
SKU: 661-2564
Price: 23.39 AUD
Availability: Discontinued

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Texas Instruments
	Output Current	4 → 20 mA
	Mounting Type	Surface Mount
	Package Type	SOIC
	Pin Count	14
	Dimensions	8.65 x 3.91 x 1.58mm
	Height	1.58mm
	Length	8.65mm
	Maximum Loop Supply Voltage	36V
	Width	3.91mm
	Maximum Operating Supply Voltage	36 V
	Maximum Operating Temperature	+85 °C
	Minimum Operating Temperature	-40 °C
	Minimum Loop Supply Voltage	7.5V

	Select all
	Brand Texas Instruments
	Output Current 4 → 20 mA
	Mounting Type Surface Mount
	Package Type SOIC
	Pin Count 14
	Dimensions 8.65 x 3.91 x 1.58mm
	Height 1.58mm
	Length 8.65mm
	Maximum Loop Supply Voltage 36V
	Width 3.91mm
	Maximum Operating Supply Voltage 36 V
	Maximum Operating Temperature +85 °C
	Minimum Operating Temperature -40 °C
	Minimum Loop Supply Voltage 7.5V

ESD Control Selection Guide V1

RTD Sensor Current Transmitter, Texas Instruments

The Texas Instruments XTR105 is a monolithic 4-20mA, 2-wire current transmitter with two precision current sources. It provides complete current excitation for platinum RTD temperature sensors and bridges, instrumentation amplifiers, and current output circuitry on a single integrated circuit.

LOW UNADJUSTED ERROR
TWO PRECISION CURRENT SOURCES: 800 μA each
LINEARIZATION
2-OR 3-WIRE RTD OPERATION
LOW OFFSET DRIFT: 0.4 μV/°C
LOW OUTPUT CURRENT NOISE: 30NAPP
HIGH PSR: 110dB minimum
HIGH CMR: 86dB minimum
WIDE SUPPLY RANGE: 7.5V to 36V
DIP-14 AND SO-14 PACKAGES
