- RS Stock No.:
- 173-2322
- Mfr. Part No.:
- Q24FA20H0034412
- Brand:
- EPSON
On back order for despatch 28/08/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (On a Reel of 250)
$2.637
(exc. GST)
$2.901
(inc. GST)
Units | Per unit | Per Reel* |
250 - 250 | $2.637 | $659.25 |
500 - 750 | $2.571 | $642.75 |
1000 + | $2.532 | $633.00 |
*price indicative |
- RS Stock No.:
- 173-2322
- Mfr. Part No.:
- Q24FA20H0034412
- Brand:
- EPSON
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

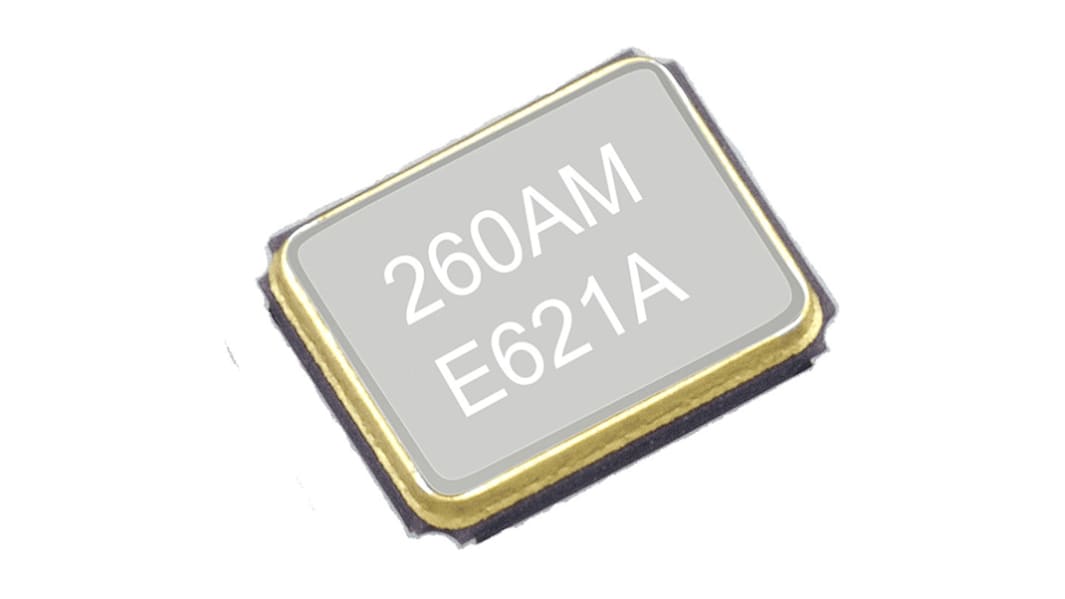

EPSON FA-20H Miniature SMD Crystal
The FA-20H Series is a low profile, ultra miniature surface mount crystal from EPSON. Applications in Mobile phones, Bluetooth, W-LAN, ISM band radio and Clock for MPU.
Features & Benefits:
Nominal frequency range: 12 MHz to 48 MHz
External dimensions: 2.5 x 2.0 x 0.55 mm
Overtone order: Fundamental
External dimensions: 2.5 x 2.0 x 0.55 mm
Overtone order: Fundamental
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Crystals 2.5x2mm Ceramic case
Specifications
Attribute | Value |
---|---|
Standard Frequency | 25MHz |
Mounting Type | Surface Mount |
Load Capacitance | 9pF |
Package Type | FA-20H |
Pin Count | 4 |
Length | 2.5mm |
Width | 2mm |
Height | 0.55mm |
Dimensions | 2.5 x 2 x 0.55mm |
Frequency Tolerance | ±10ppm |
Series Resistance | 80Ω |
Maximum Operating Temperature | 85°C |
Minimum Operating Temperature | -40°C |
