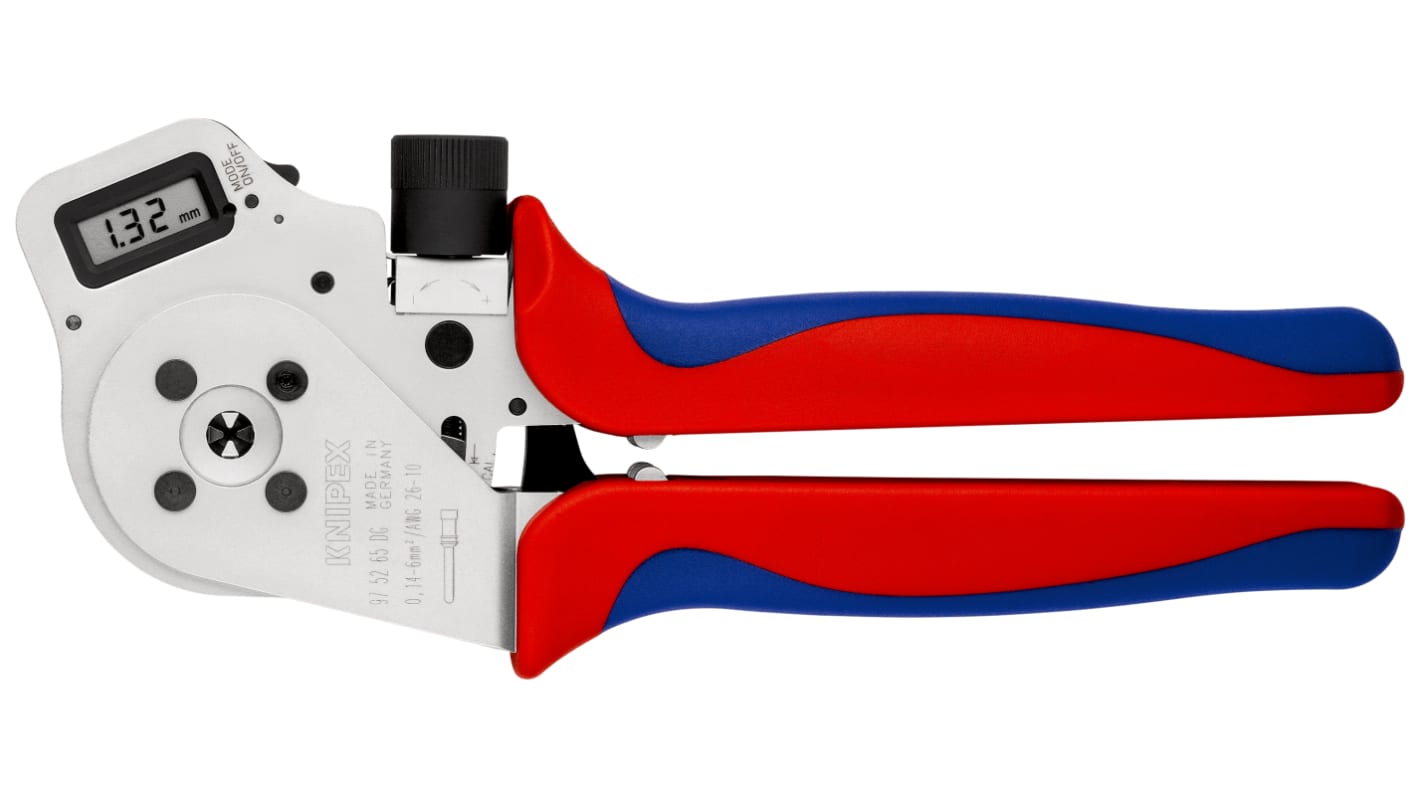

Knipex Crimping Tool, 250 mm Overall
- RS Stock No.:
- 701-0556
- Mfr. Part No.:
- 97 52 65 DG RS
- Brand:
- Knipex
1 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$1,734.13
(exc. GST)
$1,907.54
(inc. GST)
| Units | Per unit |
| 1 + | $1,734.13 |
- RS Stock No.:
- 701-0556
- Mfr. Part No.:
- 97 52 65 DG RS
- Brand:
- Knipex
Technical data sheets
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- DE
Product Details
4-point crimping pliers for turned contacts
Features and benefits
- High-quality, repetitive crimping thanks to the integrated lock (automatic release mechanism)
- Crimping pressure has been precisely defined (calibrated) at the factory, also adjustable
- Optimum force transmission through lever for fatigue-reducing operation
- Low weight
- Compact design
- Ergonomic handles
- Four-point crimping for a high-quality crimped connection
- Gauge for controlling the basic setting
- Consistently high crimping quality thanks to forced locking (unlockable)
- Increased force due to highly efficient lever transmission for less tiring work
- Very comfortable to use thanks to its practical shape
- Crimping is adjustable in 0.01 mm steps
- With digital display of the set crimping measurements and recalibration option via the electronically controlled RESET function
- Adjustment in mm, inches or comparable selector positions according to MIL
- With table for determining the setting values
- Capacities mm² / AWG : for crimping turned contacts from 0.14 to 6.0mm² - AWG 25 to 10
- Material: special grade chrome vanadium electric steel, oil-hardened
- Crimping pressure has been precisely defined (calibrated) at the factory, also adjustable
- Optimum force transmission through lever for fatigue-reducing operation
- Low weight
- Compact design
- Ergonomic handles
- Four-point crimping for a high-quality crimped connection
- Gauge for controlling the basic setting
- Consistently high crimping quality thanks to forced locking (unlockable)
- Increased force due to highly efficient lever transmission for less tiring work
- Very comfortable to use thanks to its practical shape
- Crimping is adjustable in 0.01 mm steps
- With digital display of the set crimping measurements and recalibration option via the electronically controlled RESET function
- Adjustment in mm, inches or comparable selector positions according to MIL
- With table for determining the setting values
- Capacities mm² / AWG : for crimping turned contacts from 0.14 to 6.0mm² - AWG 25 to 10
- Material: special grade chrome vanadium electric steel, oil-hardened
Clamp supplied in plastic case with foam tray and positioner for contacts
Typical applications
Crimp pliers can be used in many applications:
- Maintenance and repair
- Electrical installations
- Crimp shop
- Maintenance and repair
- Electrical installations
- Crimp shop
Product Maintenance
- To maintain proper operation and long service life, the shafts and other moving parts should be lubricated regularly.
- Lubrication* is recommended
- The crimping should also be checked
*Use a light non-mineral oil
- Lubrication* is recommended
- The crimping should also be checked
*Use a light non-mineral oil
Specifications
Attribute | Value |
|---|---|
| Overall Length | 250 mm |
