- RS Stock No.:
- 168-9619
- Mfr. Part No.:

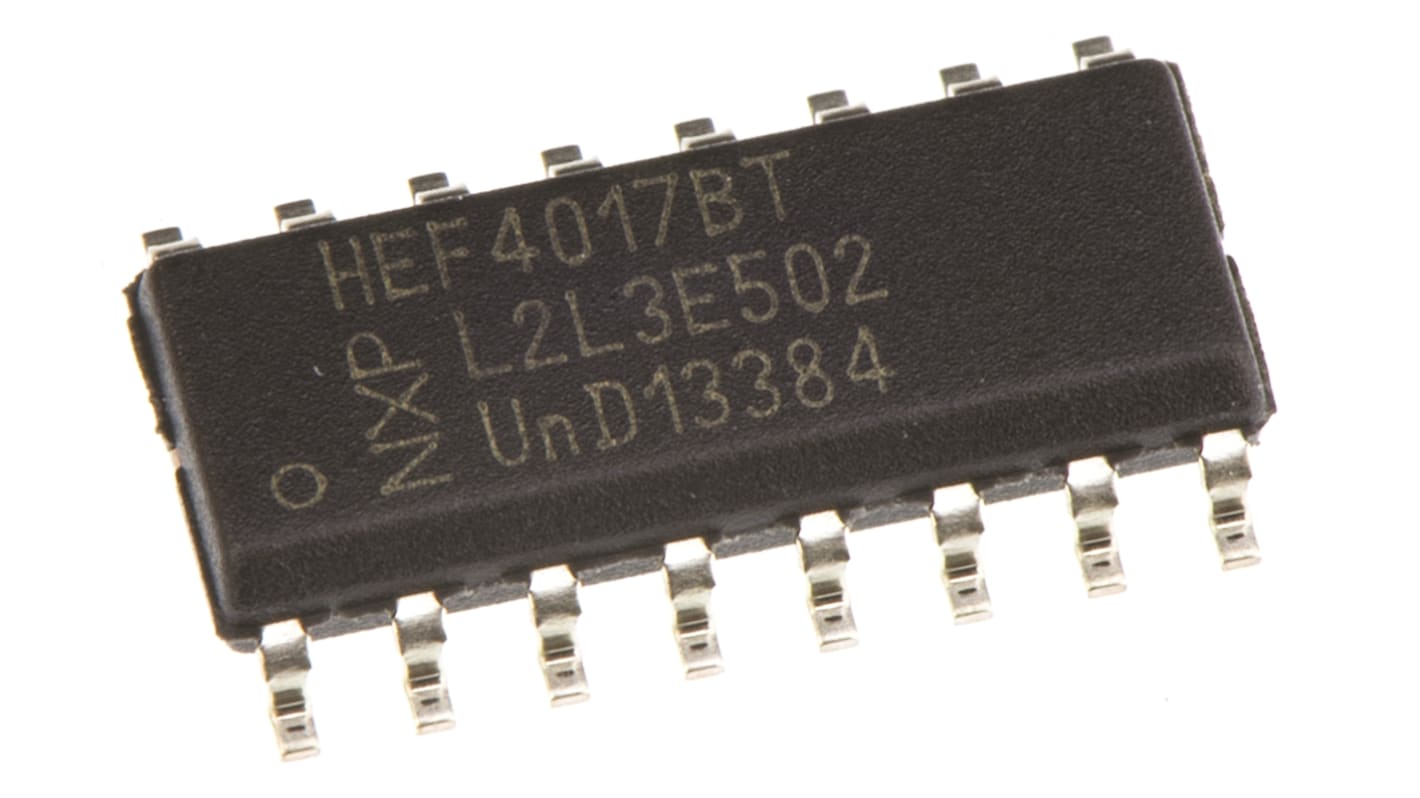

- HEF4017BT,652
- Brand:
- Nexperia
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price (ex. GST) Each (In a Tube of 50)
$0.646
(exc. GST)
$0.711
(inc. GST)
Units | Per unit | Per Tube* |
50 - 200 | $0.646 | $32.30 |
250 + | $0.582 | $29.10 |
*price indicative |
- RS Stock No.:
- 168-9619
- Mfr. Part No.:
- HEF4017BT,652
- Brand:
- Nexperia
Technical data sheets
Legislation and Compliance
Product Details
4000 Series Counters & Shift Registers, Nexperia
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
4000 CMOS Logic Family, Nexperia
CMOS Family devices
Wide operating voltage range: 3 to 18V
Wide operating voltage range: 3 to 18V
Specifications
Attribute | Value |
---|---|
Package Type | SOIC |
Logic Function | Counter, Divider |
Number of Stages | 5 |
Logic Family | 4000 |
Mounting Type | Surface Mount |
Counter Type | Decade |
Operation Mode | Up Counter |
Number of Elements | 1 |
Pin Count | 16 |
Minimum Operating Supply Voltage | 3 V |
Maximum Operating Supply Voltage | 15 V |
Dimensions | 10 x 4 x 1.45mm |
Reset Type | Asynchronous |
Direction Type | Uni-Directional |
Minimum Operating Temperature | -40 °C |
Triggering Type | Positive Edge, Negative Edge |
Maximum Operating Temperature | 125 °C |
