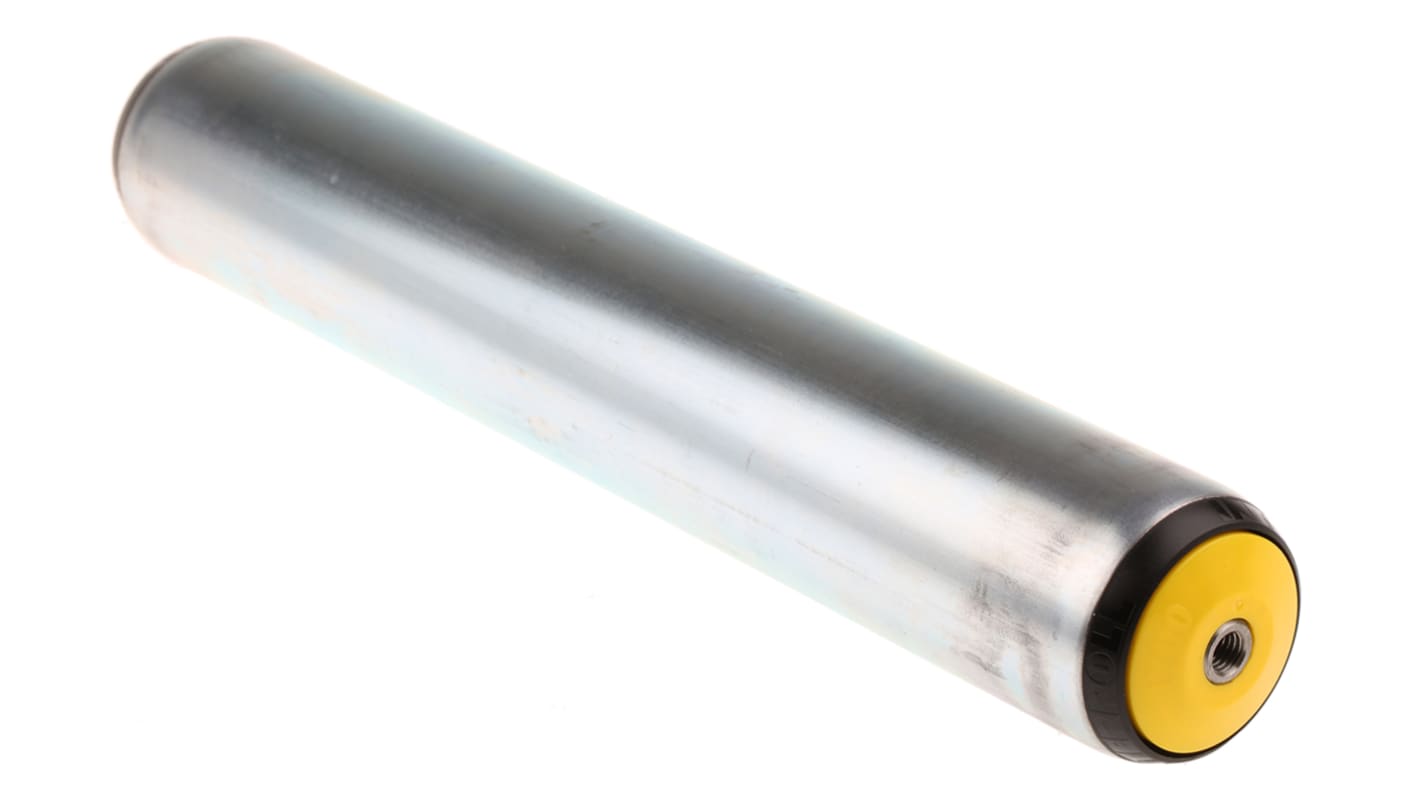

Interroll Zinc Plated Steel Round Female Conveyor Roller 50mm x 300mm

  • RS Stock No. 308-9703
  • Mfr. Part No. 17X3JAALAE
  • Manufacturer Interroll
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

50mm Diameter, Medium Duty Zinc Plated Steel

Steel rollers are resistant to deflection and have high load capacity. These are zinc plated steel or stainless steel. All are fitted with roller bearings.

Steel roller and shaft
Polymer end caps and semi precision bearings

//media.rs-online.com/t_line/L223580-01.gif

Interroll conveyor systems are used in a variety of dynamic material handling sectors, process environments, within distribution facilities, transport sectors (especially airports), and within many other environments where innovative, efficient product or material handling solutions are required. RS supply Interroll conveyor rollers in a variety of finishes, diameters, and designs (for example, medium or heavier duty rollers).

Specifications
Attribute Value
Tube Material Zinc Plated Steel
Roller Diameter 50mm
Roller Length 300mm
Inside Frame Width 310mm
Dynamic Load Capacity 2000N
Spindle Shape Round
Fixing Type Female Threaded
Spindle Material Steel
Spindle Size 12mm
Maximum Conveying Speed 2m/s
Weight Class Heavy Duty
Overall Length 310mm
126 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 18.97
(exc. GST)
$ 20.87
(inc. GST)
units
Per unit
1 - 9
$18.97
10 - 24
$18.71
25 - 49
$18.44
50 +
$18.31
