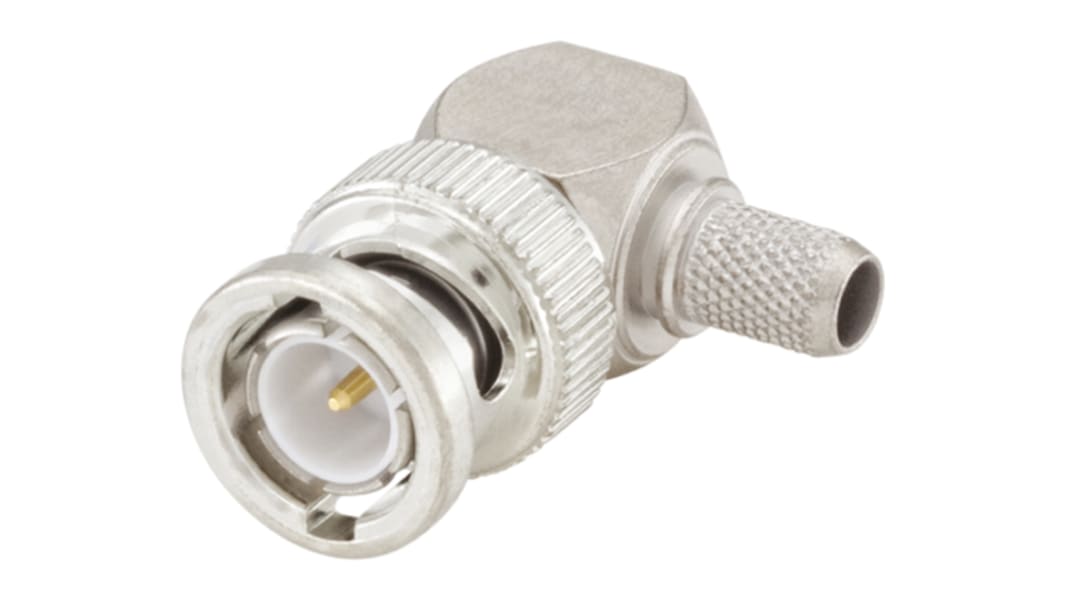

Rosenberger BNC Series, Plug Cable Mount BNC Connector, 75Ω, Crimp Termination, Right Angle Body
- RS Stock No.:
- 819-4399
- Mfr. Part No.:
- 71S201-309N5
- Brand:
- Rosenberger
On back order for despatch 16/10/2024, delivery within 10 working days from despatch date.
Price (ex. GST) Each
$27.84
(exc. GST)
$30.62
(inc. GST)
Units | Per unit |
---|---|
1 + | $27.84 |
- RS Stock No.:
- 819-4399
- Mfr. Part No.:
- 71S201-309N5
- Brand:
- Rosenberger
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- HU
Product Details
Rosenberger 75 OHM BNC RF Coaxial Cable Mount Plug Connectors
A range of 75 OHM BNC RF coaxial connectors available as straight or right angle coaxial plugs and straight jacks for use with a variety of coaxial cable types. These 75 OHM BNC RF coaxial cable mount plug and jack connectors have a mating interface compatible to IEC 61169-8, MIL-PRF-39012, CECC 22120 (apart from 819-4399 which has a mating interface compatible to IEC 60169-8, MIL-PRF-39012, CECC 22120) and a brass body with a white bronze over silver plating. BNC coaxial connectors with a crimp termination are supplied with a crimp ferrule. For suitable RF cable types please see additional data table
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Coaxial Connector Type | BNC Connector |
Gender | Male |
Mounting Type | Cable Mount |
Impedance | 75Ω |
Termination Method | Crimp |
Body Orientation | Right Angle |
Cable Type | Flexible |
Bulkhead | No |
Operating Frequency | 0 to 4GHz |
Body Plating | Flash White Bronze |
Series | BNC |
Contact Material | Copper Zinc Alloy |
Contact Plating | Nickel/White Bronze |
Series Number | 71S201 |
