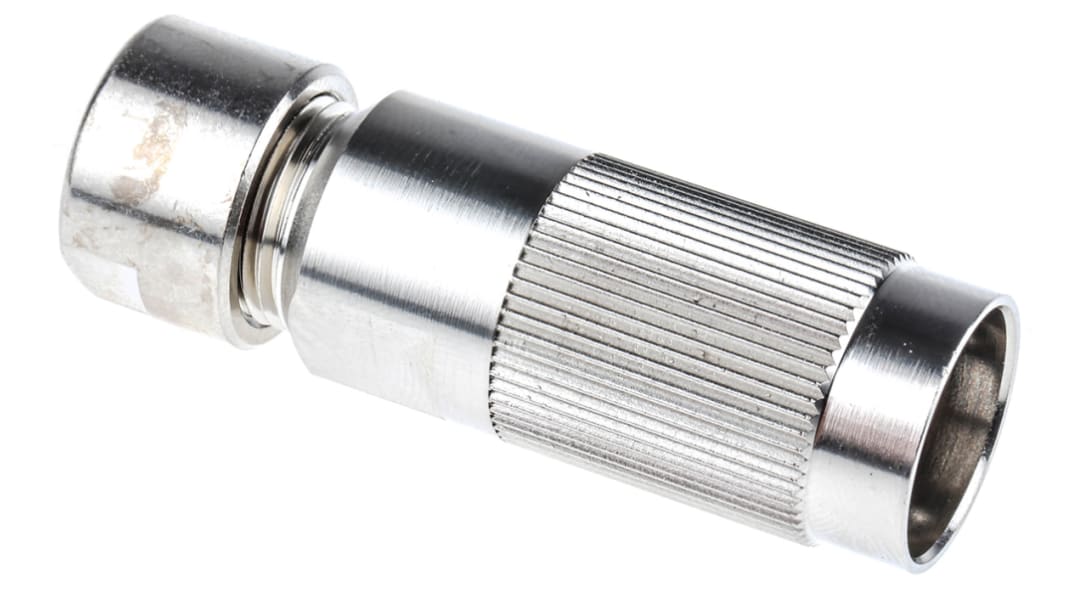

ITT Cannon Backshell

  • RS Stock No. 265-9777
  • Mfr. Part No. 192993-0081/TNA10CCSE-00L
  • Manufacturer ITT Cannon
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Shielded Backshell

Provides cable shielding termination
Internal braid is grounded to outer shell
Available in a standard or large cable exit

ITT TNM Shielded

The TNM connector range builds on the popular Trident and Neptune ranges from ITT Cannon. They feature full metal construction giving high reliability and durability.

RF shielding inherent in the full metal construction
Backshells enable cable braid termination so meeting EMC requirements
Signal versions have the same planform & contact arrangements as the QM range so upgrading and interchangeability can be achieved
Includes a rear rubber seal that enables IP67 rating to be maintained if only some contacts are used. The rubber seal can be discarded if a backshell is to be used. Both are rated to IP67
Cable, chassis and jam nut configurations available in standard and reversed formats
One, two or three part crimp contacts, also solder cup and PCB terminating contacts available for signal transfer. Power contacts are only required for power/signal connector types

Specifications
Attribute Value
Length 88.5mm
797 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 42.62
(exc. GST)
$ 46.88
(inc. GST)
units
Per unit
1 - 19
$42.62
20 - 39
$40.50
40 +
$38.48
