Analog HD Mini Dome 2 MPx (1080p, 2.8 mm

  • RS Stock No. 197-4064
  • Mfr. Part No. HDCC32502
  • Manufacturer ABUS
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

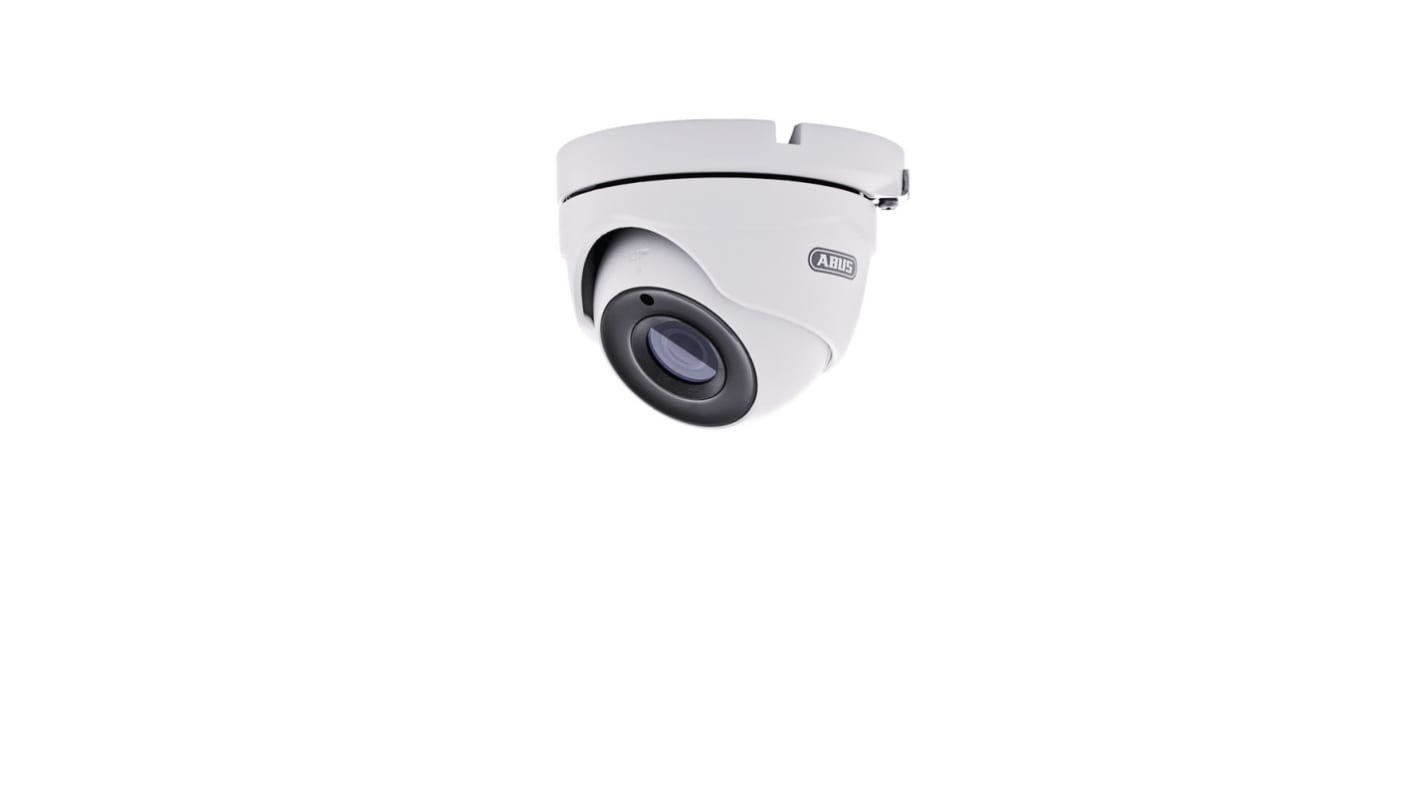

The Analogue HD Mini Dome 2MPx provides a razor sharp and fluid image due to its high-quality image sensor for the surveillance of extensive indoor and outdoor areas. The high-performance True WDR function ensures evenly lit foregrounds and backgrounds in high-contrast light situations. The IR LED technology provides for better image lighting under varying light conditions during the day or night.

Resolution of 1920 x 1080 @ 30fps
Improved illumination of up to 20m at night
Weatherproof (IP67) for outdoor use
Video Output switchable between TVI/AHD/CVI/CVBS (4 in 1)
Installation through existing CCTV infrastructure, such as coaxial or 2-wire cables

Specifications
Attribute Value
Indoor/Outdoor Indoor, Outdoor
Analogue/Network Analogue
Form Factor Minature Dome
Resolution 1920 x 1080 pixels
Maximum Resolution 1920 x 1080pixels
Power Over Ethernet Yes
IR Yes
Wireless No
IP Rating IP67
Focal Length 2.8mm
Sensor Type 1/2.7 in Progressive Scan CMOS
3 In stock for delivery within 7 working day(s) (Global Stock)
Price (ex. GST) Each
$ 280.39
(exc. GST)
$ 308.43
(inc. GST)
units
Per unit
1 +
$280.39
