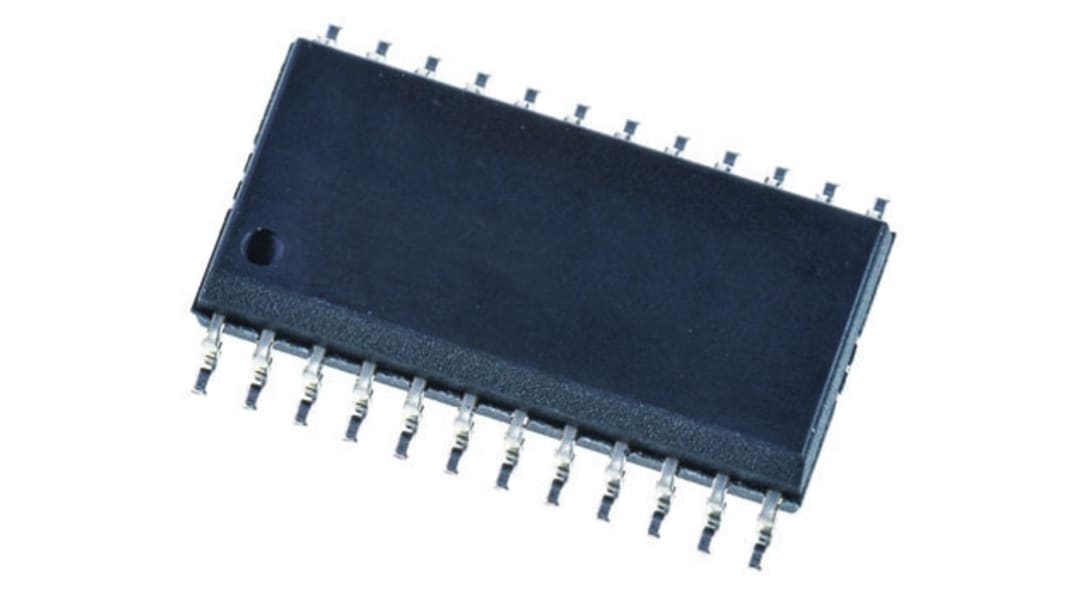

Texas Instruments SN74LVCC3245ADW, 1 Bus Transceiver, 8-Bit Non-Inverting LVTTL, 24-Pin SOIC

RS Stock No.:: 663-2928
Mfr. Part No.:: SN74LVCC3245ADW
Brand:: Texas Instruments

Texas Instruments SN74LVCC3245ADW, 1 Bus Transceiver, 8-Bit Non-Inverting LVTTL, 24-Pin SOIC

35 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each (In a Pack of 5)

$3.25

(exc. GST)

$3.57

(inc. GST)

Units	Per unit	Per Pack*
5 - 5	$3.25	$16.25
10 - 10	$3.194	$15.97
15 +	$3.138	$15.69
*price indicative

RS Stock No.:: 663-2928
Mfr. Part No.:: SN74LVCC3245ADW
Brand:: Texas Instruments

Technical data sheets

ESD Control Selection Guide V1

Legislation and Compliance

Product Details

74LVC Family Bus Transceivers, Texas Instruments

Texas Instruments range of Bus Transceivers from the 74LVC Family of Low-voltage CMOS Logic ICs. The 74LVC Family use silicon gate CMOS technology and is designed to operate at 3.3V, allowing a significant reduction in power consumption when compared to 5V systems.

Operating Voltage: 1.65 to 3.6V
5V tolerant inputs
Compatibility: Input LVTTL/TTL, Output LVCMOS
Latch-up performance exceeds 250 mA per JESD 17
ESD protection exceeds JESD 22

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

74LVC Family

Specifications

Attribute	Value
Logic Family	LVC
Logic Function	Bus Transceiver
Number of Elements per Chip	1
Number of Channels per Chip	8
Polarity	Non-Inverting
Mounting Type	Surface Mount
Package Type	SOIC
Pin Count	24
Input Level	LVTTL
Output Level	LVTTL
Maximum High Level Output Current	-24mA
Maximum Low Level Output Current	24mA
Maximum Propagation Delay Time @ Maximum CL	11.2 ns@ 3.3 V
Minimum Operating Temperature	-40 °C
Minimum Operating Supply Voltage	2.3 V, 3 V
Width	7.52mm
Maximum Operating Supply Voltage	3.6 V, 5.5 V
Propagation Delay Test Condition	50pF
Dimensions	15.4 x 7.52 x 2.35mm
Length	15.4mm
Maximum Operating Temperature	+85 °C
Height	2.35mm
