- RS Stock No.:
- 423-239
- Brand:
- RS PRO
195 In AU stock for next working day delivery
25 In Global stock for delivery within 5 working day(s)
Added
Price (ex. GST) Each (In a Pack of 5)
$5.48
(exc. GST)
$6.03
(inc. GST)
Units | Per unit | Per Pack* |
5 - 45 | $5.48 | $27.40 |
50 - 245 | $5.392 | $26.96 |
250 - 495 | $5.21 | $26.05 |
500 - 2495 | $5.074 | $25.37 |
2500 + | $4.178 | $20.89 |
*price indicative |
- RS Stock No.:
- 423-239
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

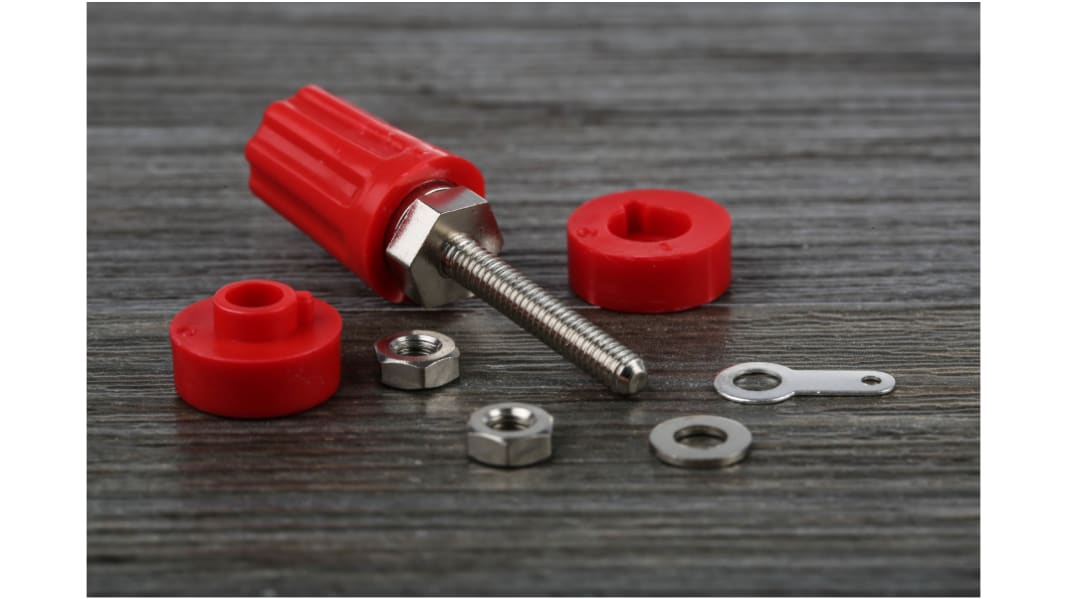

Insulated Terminal
High-quality moulded parts in acetal. Contact material Nickel plated brass. Accepts standard 4mm plug in top.,Max. panel thickness is 12.7 mm. Height above panel: 24mm to 32mm.,Overall dia. 14mm.,Thread size: 4BA clearance.
Benefits
• Excellent electrical conduction
• Very low contact resistance
• Robust contact point pressure when connected
• High durability for a high number of mating cycles
• Very low contact resistance
• Robust contact point pressure when connected
• High durability for a high number of mating cycles
Features
• Max contact resistance 0.5 mΩ
• Current rating 30A
• Contact durability 10 000 mating cycles
• Hight above panel 24mm to 32mm
• Overall diameter 14mm
• Thread size 4BA clearance
• Current rating 30A
• Contact durability 10 000 mating cycles
• Hight above panel 24mm to 32mm
• Overall diameter 14mm
• Thread size 4BA clearance
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
---|---|
Colour | Red |
Contact Material | Brass |
Contact Plating | Nickel |
Current Rating | 16A |
Voltage Rating | 50V dc |
Gender | Female |
