Gedore Bearing Puller 1.04/3A-B

  • RS Stock No. 125-3884
  • Mfr. Part No. 1.04/3A-B
  • Manufacturer Gedore
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

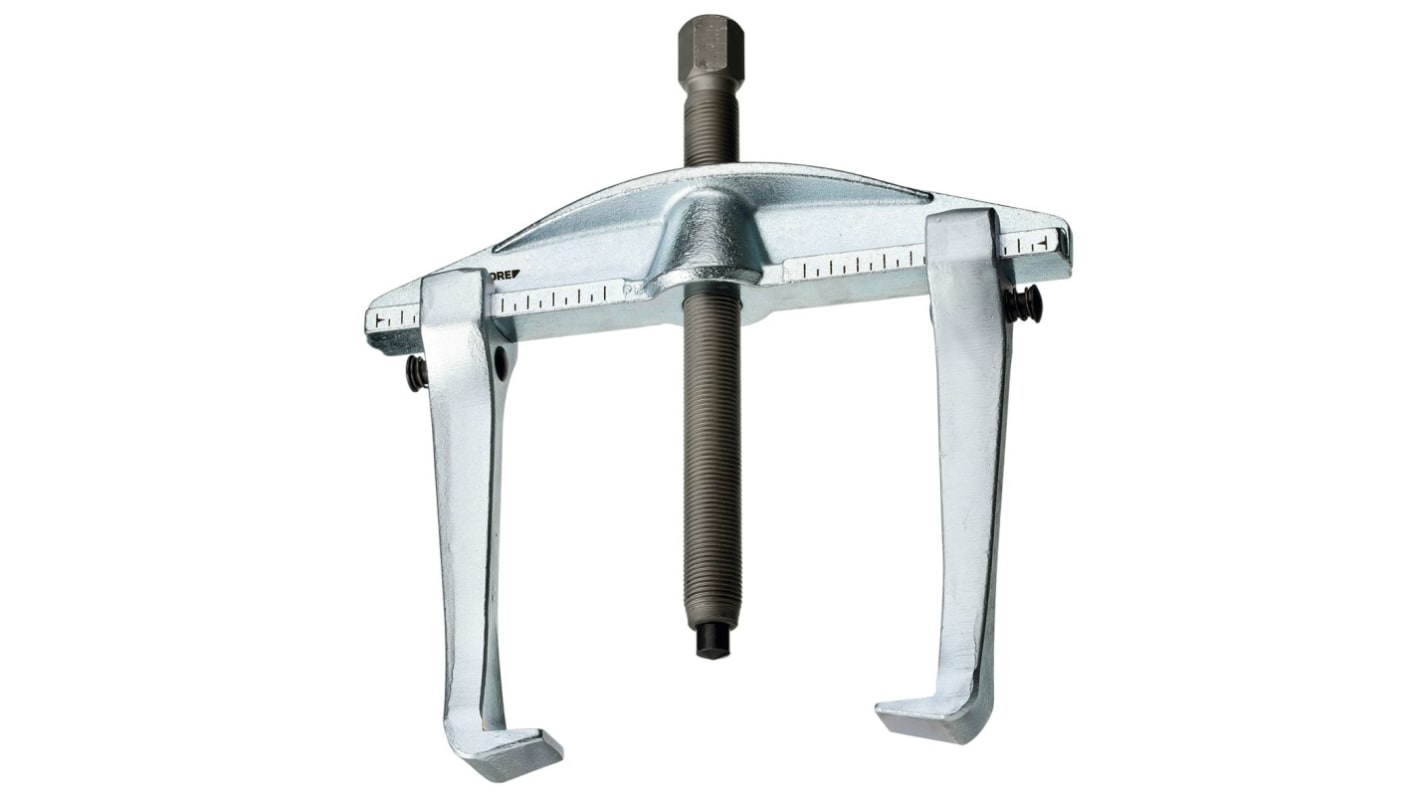

Gedore Universal Puller Rigid Legs With Leg Brake

Gedore Universal puller 2-arm pattern, rigid legs with leg brake. The legs clamp automatically when under tension, the leg brake prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button. By reversing the legs, this tool can be used as an internal or external puller.

Features and Benefits

Due to the bending-moment reinforcement on its back face, the energy-saving design of the cross-beam means even stronger and safer pulling work
Rigid legs forged from one piece
The legs clamp automatically when under tension
Leg brake prevents unintentional leg slipping, the leg can be slid along the cross-beam at the push of a button
By reversing the legs, this tool can be used as an internal or external puller
Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when high pulling forces are required
Spindle with replaceable ball and tip
Thermo-chemically hardened spindle

Specifications
Attribute Value
Capacity 350 (External) mm, 420 (Internal) mm
Operation Lever Press
1 In stock for delivery within 5 working day(s)
Price (ex. GST) Each
$ 586.57
(exc. GST)
$ 645.23
(inc. GST)
units
Per unit
1 +
$586.57
