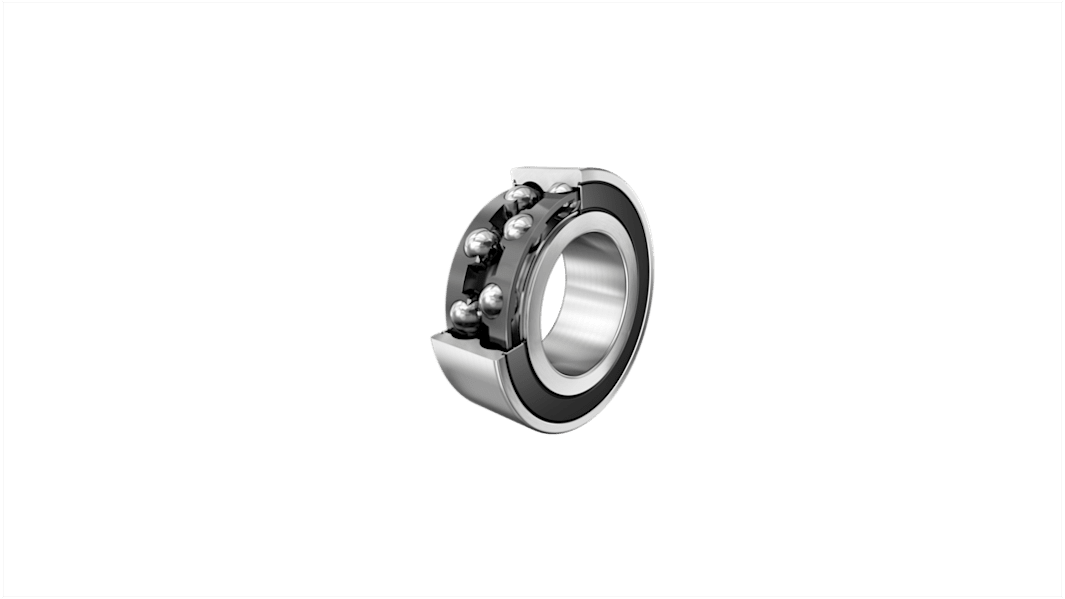

FAG 3303-BD-XL-2HRS-TVH Double Row Angular Contact Ball Bearing- Both Sides Sealed 17mm I.D, 47mm O.D
- RS Stock No.:
- 260-0776
- Mfr. Part No.:
- 3303-BD-XL-2HRS-TVH
- Brand:
- FAG
On back order for despatch 13/08/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$117.13
(exc. GST)
$128.84
(inc. GST)
| Units | Per unit |
| 1 + | $117.13 |
- RS Stock No.:
- 260-0776
- Mfr. Part No.:
- 3303-BD-XL-2HRS-TVH
- Brand:
- FAG
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- SK
Product Details
The FAG angular contact ball bearing has 17 mm bore diameter and 22.2 mm width with 30 degree contact angle.
Operating temperature -20 to 100 °C
Specifications
Attribute | Value |
|---|---|
| Inside Diameter | 17mm |
| Outside Diameter | 47mm |
| Race Width | 22.2mm |
| Ball Bearing Type | Double Row Angular Contact Ball Bearing |
| Sealing Arrangement | Both Sides Sealed |
| Bearing Clearance | CN |
| Material | Steel |
| Ball Material | Steel |
| Cage Material | Polyamide |
| Number of Rows | 2 |
| Static Load Rating | 13.1kN |
| Dynamic Load Rating | 22.5kN |
| Bore Type | Parallel |
| Bearing Series | 3 Medium |
| Race Type | Plain |
| Partial Bearing Code | 3303 |
