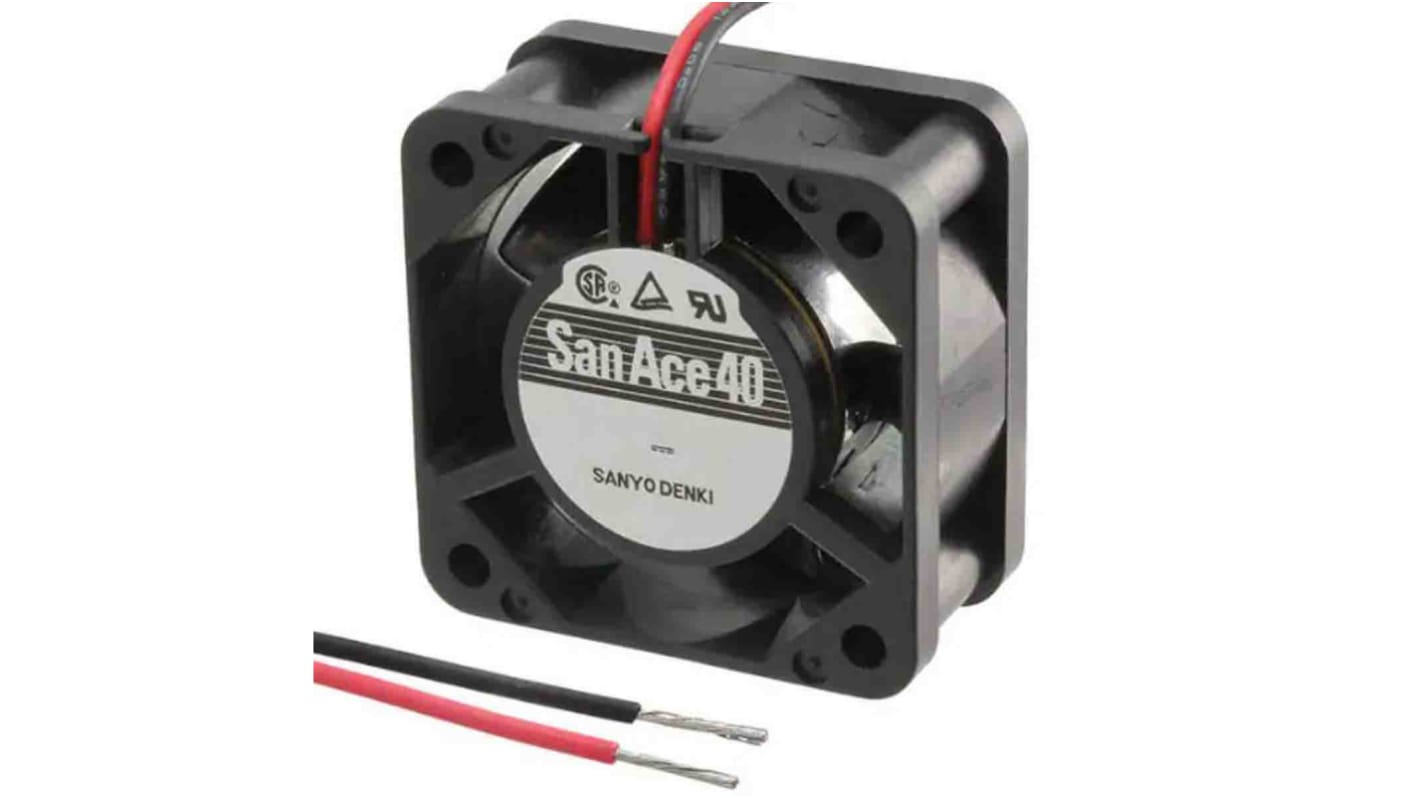

Sanyo Denki 109P Series Axial Fan, 24 V dc, DC Operation, 7.1cfm, 720mW, 60mA Max, 40 x 40 x 15mm

RS Stock No.:: 191-9243
Mfr. Part No.:: 109P0424H7D01
Brand:: Sanyo Denki

Sanyo Denki 109P Series Axial Fan, 24 V dc, DC Operation, 7.1cfm, 720mW, 60mA Max, 40 x 40 x 15mm

80 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$19.22

(exc. GST)

$21.14

(inc. GST)

Units	Per unit
1 - 4	$19.22
5 - 9	$18.65
10 - 24	$18.09
25 - 49	$17.69
50 +	$17.31

RS Stock No.:: 191-9243
Mfr. Part No.:: 109P0424H7D01
Brand:: Sanyo Denki

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: PH

Product Details

Our DC cooling fans have features such as high airflow, high reliability, and low noise. They can be used in a wide-ranging applications including servers and ICT equipment.

The San Ace DC Fans feature high airflow, high static pressure, low power consumption, and low vibration. In the development phase, we thoroughly reviewed impeller shape, motor characteristics, operating airflow, and expected life to achieve target performance. We realized excellent cooling performance by leveraging our technology accumulated over a long period of time.

The Sanyo Denki DC fan of series San Ace 109P has a plastic frame having flammability of UL 94V-0. Its impeller is also made up of plastic. It has -30°C to +70°C storage temperature.

Locked rotor burnout protection
Reverse polarity protection

Specifications

Attribute	Value
Supply Voltage	24 V dc
AC or DC Operation	DC
Height	40mm
Width	40mm
Power Consumption	720mW
Depth	15mm
Maximum Current	60mA
Dimensions	40 x 40 x 15mm
Air Flow	7.1cfm
Termination Type	Lead Wire
Noise Level	28dB(A)
Direction of Curve	Forward
Bearing Type	Ball
