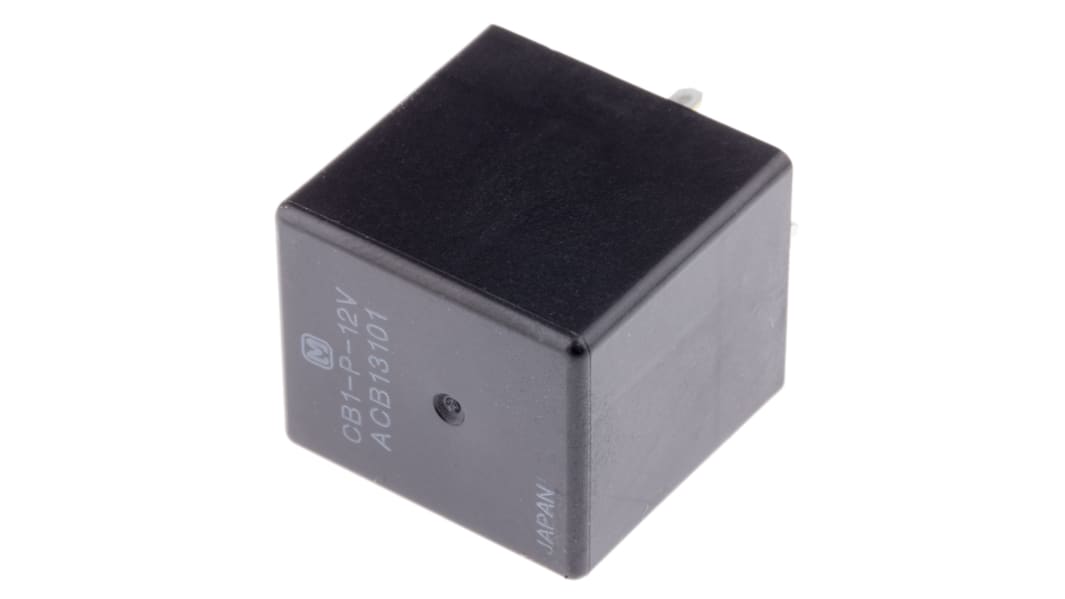

    Panasonic PCB Mount Automotive Relay, 12V dc Coil Voltage, 40A Switching Current, SPDT

    RS Stock No.:
    815-5094
    Mfr. Part No.:
    CB1-P-12V
    Manufacturer:
    Panasonic
    Panasonic

    This image is representative of the product range

    View all Automotive Relays
    15 In AU stock for next working day delivery
    34 In Global stock for delivery within 5 working day(s)
    Add to Basket
    units

    Added

    Price (ex. GST) Each

    Was $11.58

    You pay

    $8.45

    (exc. GST)

    $9.29

    (inc. GST)

    unitsPer unit
    1 - 24$8.45
    25 - 49$8.37
    50 - 99$8.19
    100 - 249$7.99
    250 +$7.81
    RS Stock No.:
    815-5094
    Mfr. Part No.:
    CB1-P-12V
    Manufacturer:
    Panasonic
    COO (Country of Origin):
    JP

    Legislation and Compliance

    COO (Country of Origin):
    JP

    Product Details

    Panasonic CB Series Automotive Relays


    Panasonic CB series high power automotive relays feature a high switching capacity and have an ISO terminal arrangement in a compact (22x26mm) space saving housing. Typical applications include automobiles, construction equipment and agricultural equipment.

    Mini-ISO terminal arrangement

    Compact

    High switching capacity of 40 A

    High thermal resistance

    Low temperature rise

    Built-in resistor type available


    Specifications

    AttributeValue
    Coil Voltage12V dc
    Coil Power1.4W
    Coil Resistance103Ω
    Contact ConfigurationSPDT
    Number of Poles1
    Switching Current40A
    Maximum Switching Voltage DC14V
    Mounting TypePCB Mount
    Terminal TypePCB Pin
    Contact MaterialGold Alloy
    Height25mm
    Length26mm
    Isolation Coil To Contact500V rms
    Maximum Operating Temperature+85°C
    Minimum Operating Temperature-40°C
    Life10 ^6 (Mechanical) Operations, 10^5 (Electrical) Operations
    Depth22mm
