Product Details

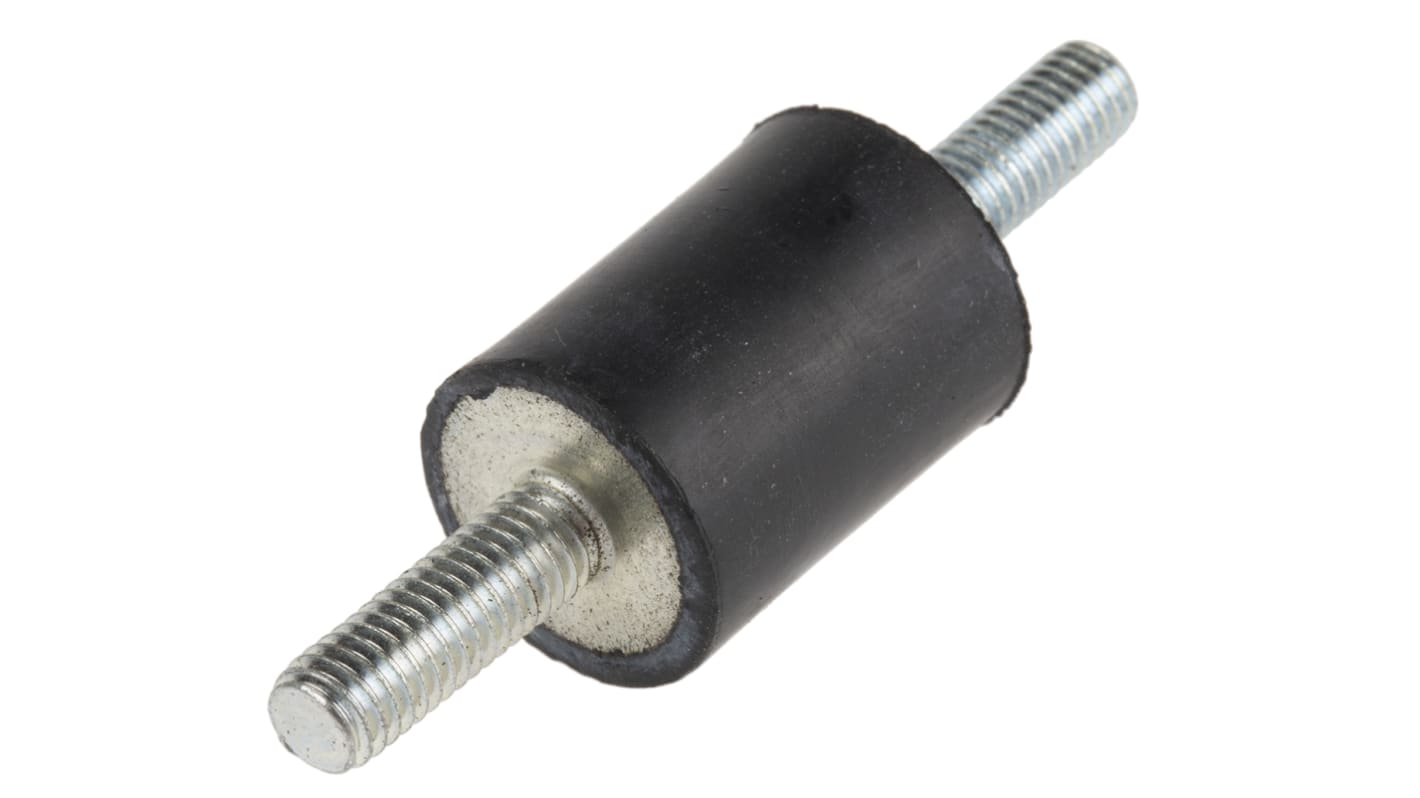

Anti Vibration Mounts when properly chosen provide a cost effective solution to problems involving vibration, shock and noise control – the rubber buffer can be used in shear/compression or both. However, it must be noted that they do not provide a fail-safe solution. Available in a large range of sizes, thread lengths and material, the cylindrical vibration damper is a classic all round solution.
Specifications
Attribute | Value |
---|---|
Anti Vibration Mount Type | Male to Male Bobbin |
Thread Size | M5 |
Diameter | 15mm |
Overall Height | 20mm |
Material | Natural Rubber |
Shore Hardness | 65 Shore A |
Metalwork | Zinc Plated Steel |
Compression Load | 11.76kg |
Series | AV Type A |
Shearing Load | 3.84kg |
Compression Deflection | 2mm |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -25°C |
