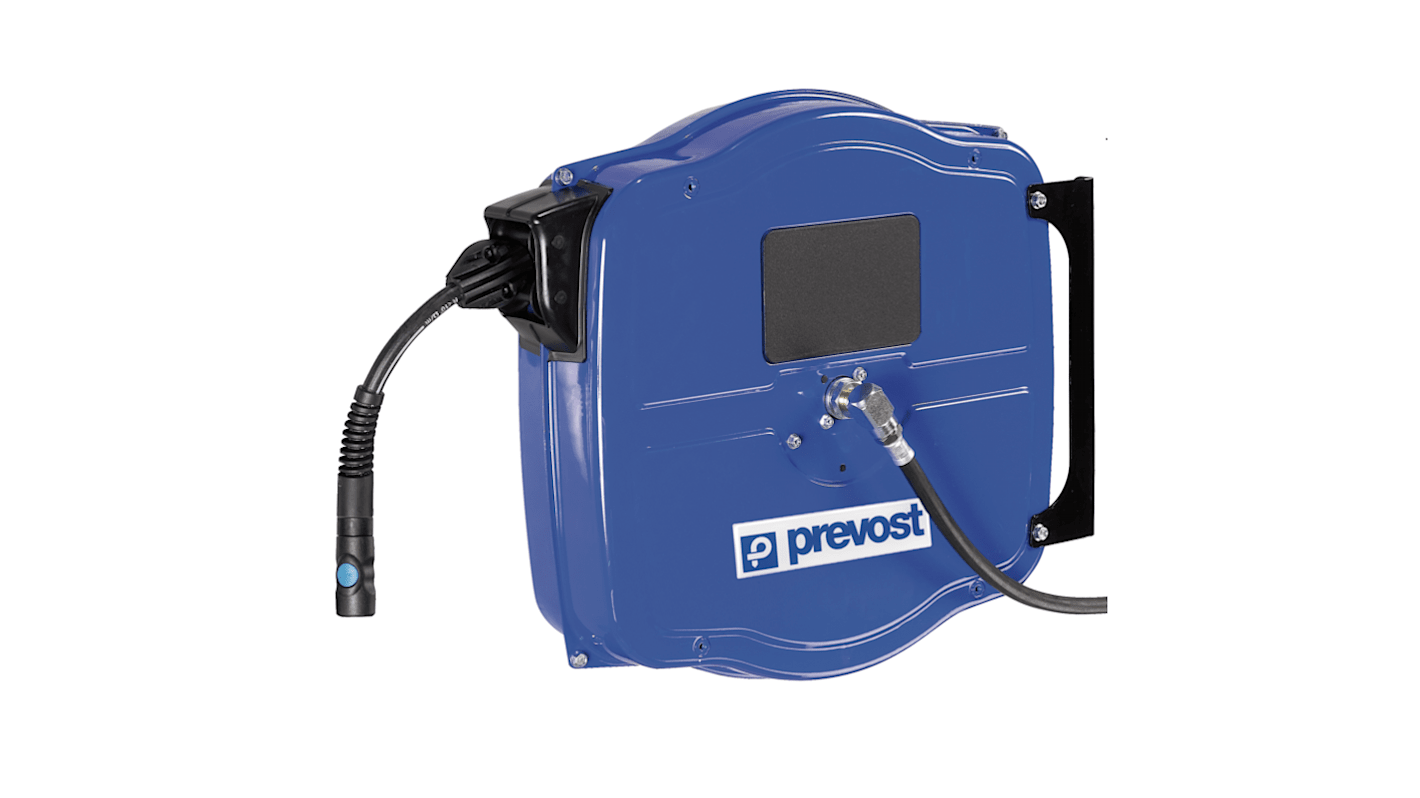

PREVOST Wall Mounted 20m Air Hose Reel, 8mm Inner Diameter, 14mm Outer Diameter, 250L/min Flow Rate
- RS Stock No.:
- 219-4369
- Mfr. Part No.:
- DGF 0820IS
- Brand:
- PREVOST
1 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$1,712.36
(exc. GST)
$1,883.60
(inc. GST)
| Units | Per unit |
| 1 + | $1,712.36 |
- RS Stock No.:
- 219-4369
- Mfr. Part No.:
- DGF 0820IS
- Brand:
- PREVOST
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
The Prevost DGF Large-sized unit has wide range of flow rates. It has 13 ´ 20 mm hose diameter. It has 12 bar pressure.
Swivel Bracket: DGF PIV
Fluid: Air
Inlet Hose: 1 m
Body Material: Hot Galvanised Pressed Steel
Flow @ 7b: 250L/min
Operating Temperature Range: -15°C → +40°C
Fluid: Air
Inlet Hose: 1 m
Body Material: Hot Galvanised Pressed Steel
Flow @ 7b: 250L/min
Operating Temperature Range: -15°C → +40°C
Specifications
Attribute | Value |
|---|---|
| Hose Length | 20m |
| Hose Inner Diameter | 8mm |
| Hose Outer Diameter | 14mm |
| Hose Included | Yes |
| Operating Pressure | 12bar |
| Mounting | Wall Mounted |
| Inlet Connection | 3/8 in G Female |
| Outlet Connection | 3/8 in G Male |
| Retraction Operation | Spring Return |
| Coupling Type | ISI 06 |
| Flow Rate | 250L/min |
