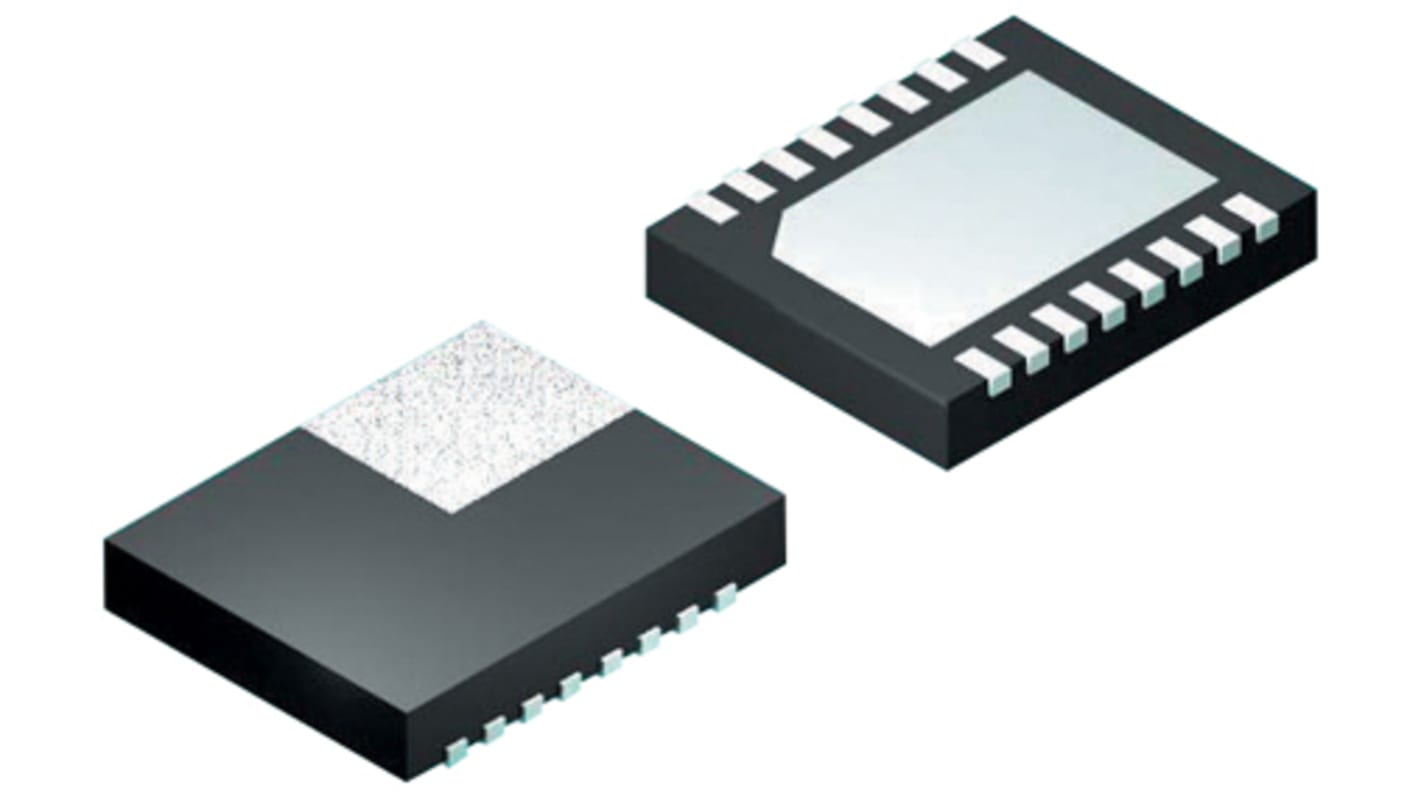

DS15EA101SQE/NOPB Texas Instruments, Adaptive Cable Equaliser 200m -0.5 → 3.6 V 16-Pin LLP

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MY
Product Details

Signal Conditioners, LVDS Equaliser, Texas Instruments

LVDS Communication

Low Voltage Differential Signaling, or LVDS, is an electrical signaling system that can run at very high speeds over cheap, twisted-pair copper cables.

Applications: Firewire, SATA, SCSI

Specifications
Attribute Value
Maximum Data Rate 1.5Gbps
Maximum Equalisation Length 200m
Maximum Jitter 0.25UI
Maximum Supply Current 77 mA
Mounting Type Surface Mount
Package Type LLP
Pin Count 16
Dimensions 4 x 4 x 0.7mm
Length 4mm
Width 4mm
Height 0.7mm
Maximum Operating Supply Voltage 3.6 V
Maximum Operating Temperature +85 °C
Operating Temperature Range -40 → +85 °C
Operating Supply Voltage Range -0.5 → 3.6 V
Minimum Operating Temperature -40 °C
Minimum Operating Supply Voltage -0.5 V
Price (ex. GST) Each (On a Reel of 250)
$ 17.497
(exc. GST)
$ 19.247
(inc. GST)
units
Per unit
Per Reel*
250 +
$17.497
$4,374.25
*price indicative
