Siretta TANGO25A/0.1M/SMAM/S/RP/29 Stubby WiFi Antenna with SMA RP Connector, Bluetooth (BLE), WiFi
- RS Stock No.:
- 124-8720
- Mfr. Part No.:
- TANGO25A/0.1M/SMAM/S/RP/29
- Manufacturer:
- Siretta
View all WiFi Antennas
20 In AU stock for next working day delivery
285 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each
Was $39.27
You pay
$29.68
(exc. GST)
$32.65
(inc. GST)
| units | Per unit |
| 1 - 4 | $29.68 |
| 5 + | $26.71 |
- RS Stock No.:
- 124-8720
- Mfr. Part No.:
- TANGO25A/0.1M/SMAM/S/RP/29
- Manufacturer:
- Siretta
- COO (Country of Origin):
- TW
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

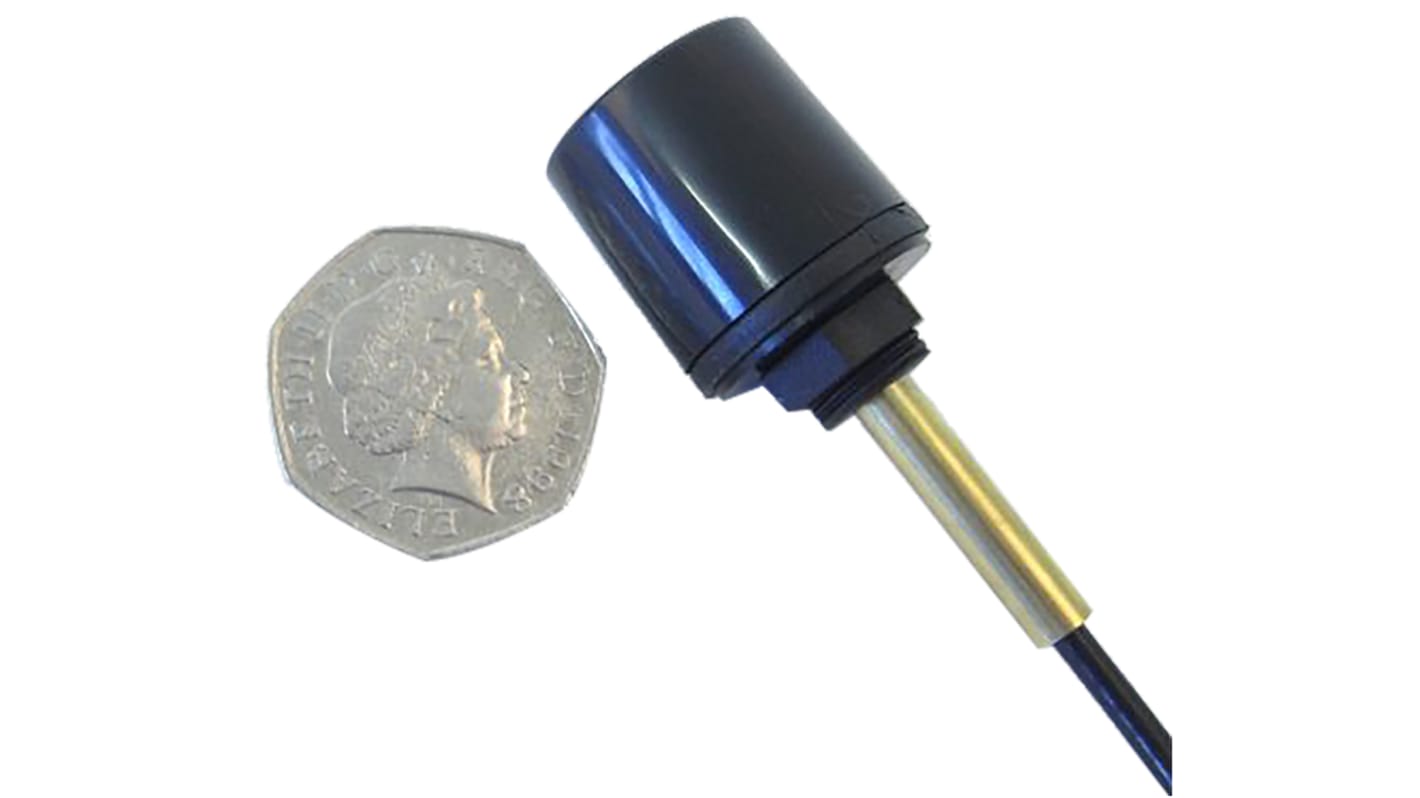

TANGO 25 / 25A - IP65 Miniature WiFi / Dual Band WiFi Antennas, Siretta
The Tango 25/25A are miniature through-hole mount WiFi/WLAN/Bluetooth/ZigBee antennas. The TANGO 25 is single band on tuned to 2.4 GHz while the TANGO25A is dual band adding in 5.8 GHz frequency band.
They measure just 22 x 22 mm and are one the most compact screw mount WiFi antennas available. A peak gain of 2 dBi on the 2.4 GHz to 2.5 GHz band, and 4 dBi on the 5.1 GHz to 5.9 GHz band providing improved signal transmission/reception of WiFi, Bluetooth or ZigBee products.
Supplied with 100 mm of RG174 coaxial cable with a reverse polarity SMA male connector.
They measure just 22 x 22 mm and are one the most compact screw mount WiFi antennas available. A peak gain of 2 dBi on the 2.4 GHz to 2.5 GHz band, and 4 dBi on the 5.1 GHz to 5.9 GHz band providing improved signal transmission/reception of WiFi, Bluetooth or ZigBee products.
Supplied with 100 mm of RG174 coaxial cable with a reverse polarity SMA male connector.
Operating Temperature: -30 to +60˚C
Impedance: 50 Ω
Gain: 2 dBi @ 2.4 GHz / 5 dBi @ 5 GHz
VSWR: 2 max
Polarisation: Vertical
Radiation: Omnidirectional
Protection: IP65
Operating Frequencies
WiFi/WLAN/Bluetooth/ZigBee: 2.4 GHz to 2.5 GHz
Dual band WiFi: 5.1 GHz to 5.8 GHz
Dimensions
22 mm (diameter), height: 22 mm (excluding screw thread)
Weight: 13 g +/- 2 g
Through hole mount: 8 mm long screw thread
Impedance: 50 Ω
Gain: 2 dBi @ 2.4 GHz / 5 dBi @ 5 GHz
VSWR: 2 max
Polarisation: Vertical
Radiation: Omnidirectional
Protection: IP65
Operating Frequencies
WiFi/WLAN/Bluetooth/ZigBee: 2.4 GHz to 2.5 GHz
Dual band WiFi: 5.1 GHz to 5.8 GHz
Dimensions
22 mm (diameter), height: 22 mm (excluding screw thread)
Weight: 13 g +/- 2 g
Through hole mount: 8 mm long screw thread
2.4GHz Antennas
Specifications
| Attribute | Value |
| RF Protocols | Bluetooth (BLE), WiFi |
| Internal/External | External |
| Antenna Physical Form | Stubby |
| Frequency Range | 2.4 → 2.5 GHz, 5.1 → 5.8 GHz |
| Mounting Type | Through Hole/Bolted |
| Connector Type | SMA RP |
| Antenna Mounting Type | Through Hole/Bolted |
| Gain | 2,4dBi |
| Connector Gender | Male |
| Antenna Directivity | Omnidirectional |
| Series | TANGO 25A |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +60°C |
