- RS Stock No.:
- 789-4079
- Mfr. Part No.:
- DRU30-12
- Brand:
- Chinfa
13 In AU stock for next working day delivery
72 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$364.24
(exc. GST)
$400.66
(inc. GST)
Units | Per unit |
1 + | $364.24 |
- RS Stock No.:
- 789-4079
- Mfr. Part No.:
- DRU30-12
- Brand:
- Chinfa
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

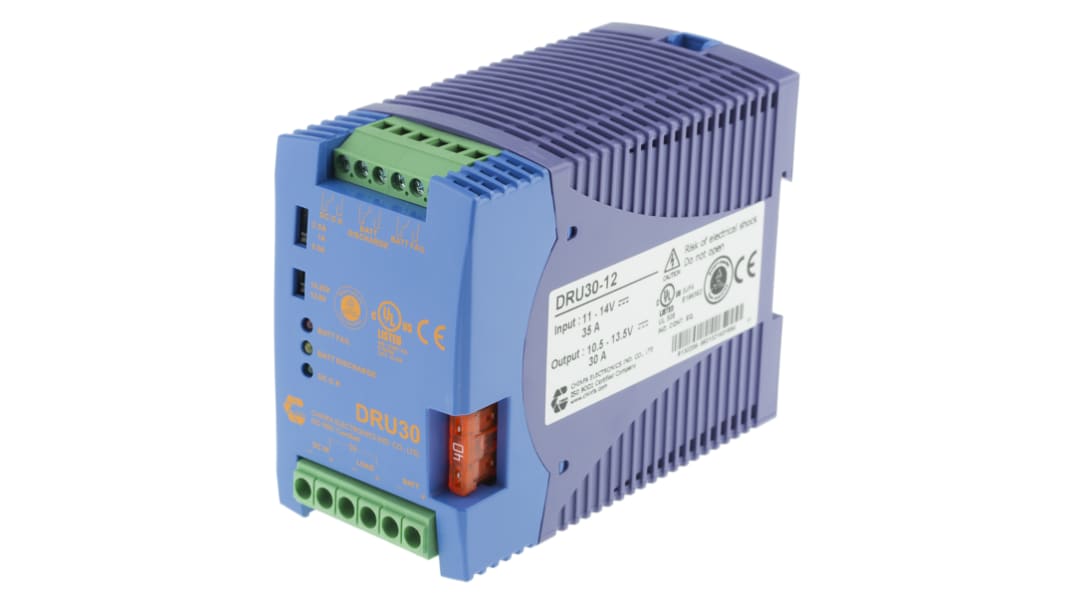

CHINFA DIN Rail Power Supply
The CHINFA DIN Rail DRU series battery backed power supply has a universal input voltage ranging between 11VDC and 14VDC with a built-in active PFC. The DRU has a built-in boost, a current limited charger which can provide either afloat or fast charge voltage to the battery. The rated output current is 30A at 12VDC output voltage. It also provides automatic battery reverse polarity protection and low voltage deep discharge protection to prevent permanent damage to the battery. This power supply is designed for DIN rail UPS systems.
Features and Benefits
Automatic battery polarity protection
Battery low voltage disconnect (LVD)
Built-in battery test function
Operation temperature ranging between -40°C and 71°C
Parallel connection to a DC bus
Relay and LED alarms
Ripple factor and noise is 100mV
Battery low voltage disconnect (LVD)
Built-in battery test function
Operation temperature ranging between -40°C and 71°C
Parallel connection to a DC bus
Relay and LED alarms
Ripple factor and noise is 100mV
Applications
Electromagnetic drives
Factory automation
Industrial controls
Instrumentation
Factory automation
Industrial controls
Instrumentation
Certifications
CE certified
cUL
TUV
UL approved
cUL
TUV
UL approved
Specifications
Attribute | Value |
---|---|
Output Voltage | 12V dc |
Type | Battery Charger |
Width | 114mm |
Depth | 90mm |
