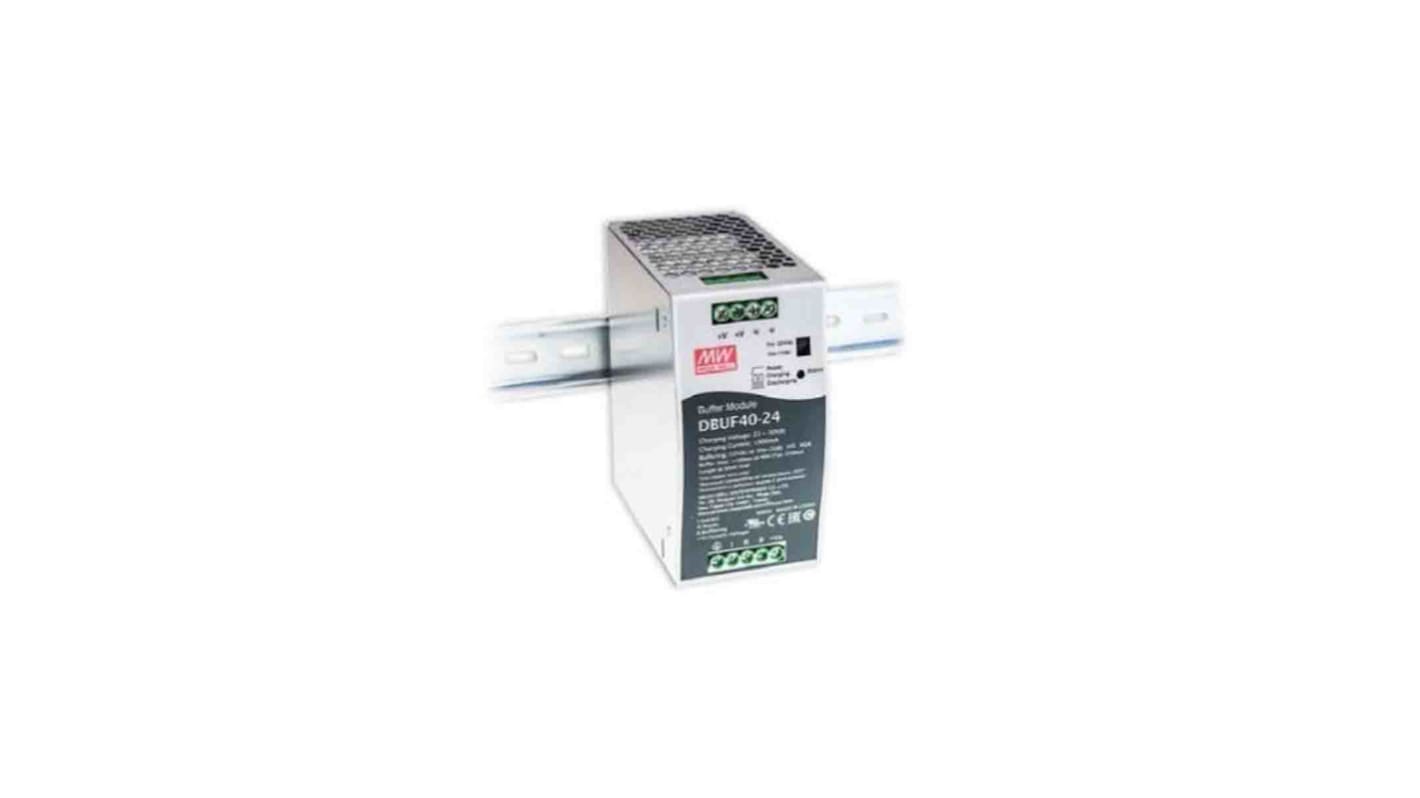

MEAN WELL DBUF40-24 24V dc Input Buffer Module DIN Rail 25 s
- RS Stock No.:
- 200-6446
- Distrelec Article No.:
- 302-29-880
- Mfr. Part No.:
- DBUF40-24
- Brand:
- MEAN WELL
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$259.98
(exc. GST)
$285.98
(inc. GST)
FREE delivery for orders over $80.00 ex GST
In Stock
- 21 unit(s) ready to ship
- Plus 25 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 12 | $259.98 |
| 13 - 24 | $256.41 |
| 25 + | $250.19 |
*price indicative
- RS Stock No.:
- 200-6446
- Distrelec Article No.:
- 302-29-880
- Mfr. Part No.:
- DBUF40-24
- Brand:
- MEAN WELL
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Product Type | Buffer Module | |
| Current | 4A | |
| Output Voltage | 22V dc | |
| Input Voltage | 24V dc | |
| Mount Type | DIN Rail | |
| Backup Time | 25s | |
| Standards/Approvals | EN55035, EN55032, EN61000-6-2, EN61000-4-4, EN61000-4-5, EN61000-4-2, EN61000-4-6, IEC62368-1, EN61000-4-3, UL62368-1, EN61000-4-8 | |
| Width | 63mm | |
| Depth | 114.9mm | |
| Series | DBUF40-24 | |
| Length | 125.2mm | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Product Type Buffer Module | ||
Current 4A | ||
Output Voltage 22V dc | ||
Input Voltage 24V dc | ||
Mount Type DIN Rail | ||
Backup Time 25s | ||
Standards/Approvals EN55035, EN55032, EN61000-6-2, EN61000-4-4, EN61000-4-5, EN61000-4-2, EN61000-4-6, IEC62368-1, EN61000-4-3, UL62368-1, EN61000-4-8 | ||
Width 63mm | ||
Depth 114.9mm | ||
Series DBUF40-24 | ||
Length 125.2mm | ||
- COO (Country of Origin):
- CN
The Mean Well DIN rail type buffer module is a supplementary device for regulated DC 24V power supplies. It is connected in parallel to increase the output ampacity or the hold up time, it utilizes maintenance free electrolytic capacitors to store energy thus eliminates the need of periodic replacement as compared to costlier batteries which also have shorter functional life span.
Buffering with electrolytic capacitors instead of lead acid batteries
LED indicator for signal status
Supports parallel connection to extend buffering time
Cooling by free air convection
Note
Available on EPLAN.
