- RS Stock No.:
- 734-7233
- Brand:
- RS PRO
55 In AU stock for next working day delivery
818 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$5.61
(exc. GST)
$6.17
(inc. GST)
Units | Per unit |
1 - 49 | $5.61 |
50 - 99 | $5.33 |
100 - 249 | $5.06 |
250 - 1249 | $4.82 |
1250 + | $4.59 |
- RS Stock No.:
- 734-7233
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

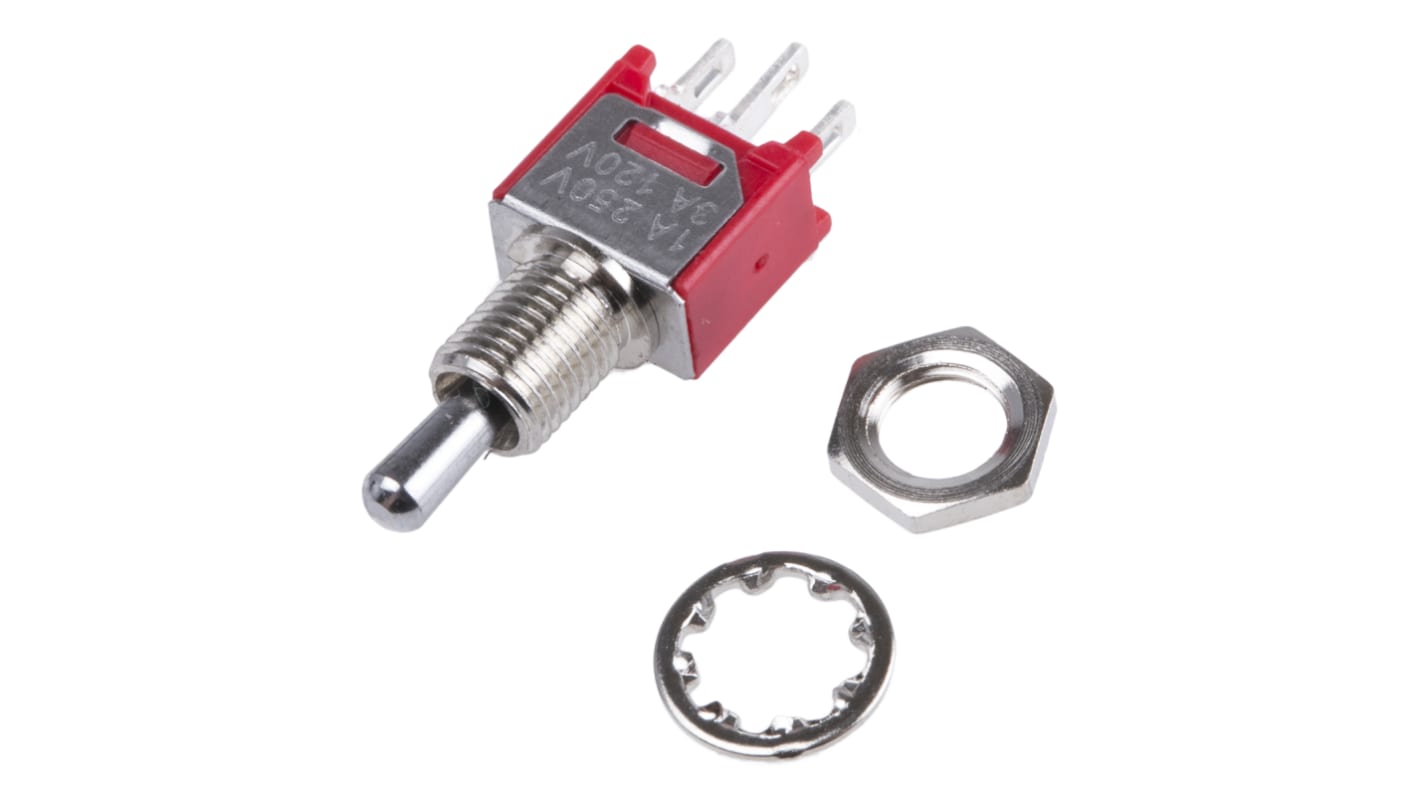

RS PRO SPDT Toggle Switch, On-Off-On, Panel Mount
This RS PRO SPDT (single pole double throw) toggle switch lets you turn a circuit on and off. Typically found in commercial and industrial settings, this type of switch is used in lighting, computing and telecommunications equipment.
It comes with a chromium-plated brass actuator that's hardwearing and resistant to tarnishing. With an actuator length of 5.33 mm and a cutout diameter of 4.95 mm, it's classed as a sub-miniature switch and will fit into small spaces. This component features a handy panel mount, so it can be easily secured to an equipment panel, external case or enclosure. It has a contact current rating of 3 A @ 120 V AC.
Like all of our RS PRO products, it's been tested to ensure it's hardwearing and reliable. The switch has a mechanical life of around 30,000 cycles and works in extreme temperatures ranging from -40°C to +85°C.
It comes with a chromium-plated brass actuator that's hardwearing and resistant to tarnishing. With an actuator length of 5.33 mm and a cutout diameter of 4.95 mm, it's classed as a sub-miniature switch and will fit into small spaces. This component features a handy panel mount, so it can be easily secured to an equipment panel, external case or enclosure. It has a contact current rating of 3 A @ 120 V AC.
Like all of our RS PRO products, it's been tested to ensure it's hardwearing and reliable. The switch has a mechanical life of around 30,000 cycles and works in extreme temperatures ranging from -40°C to +85°C.
Features and Benefits
• Toggle switch
• SPDT (single pole double throw) contact configuration
• On-Off-On switch operation
• Contact current rating of 3 A @ 120 V AC
• Panel mounting
• Solder panel terminal
• Cutout diameter of 4.95 mm
• Actuator length of 5.33 mm
• Chromium-plated brass actuator
• Contact resistance of 20 mΩ
• Mechanical life of 30,000 cycles
• Operating temperature range of -40°C to +85°C
• RoHS compliant for minimal hazardous materials
• Lead-free
• Panel cut out diameter of 4.95 mm
• Silver-plated brass contacts
• SPDT (single pole double throw) contact configuration
• On-Off-On switch operation
• Contact current rating of 3 A @ 120 V AC
• Panel mounting
• Solder panel terminal
• Cutout diameter of 4.95 mm
• Actuator length of 5.33 mm
• Chromium-plated brass actuator
• Contact resistance of 20 mΩ
• Mechanical life of 30,000 cycles
• Operating temperature range of -40°C to +85°C
• RoHS compliant for minimal hazardous materials
• Lead-free
• Panel cut out diameter of 4.95 mm
• Silver-plated brass contacts
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Contact Configuration | Single Pole Double Throw (SPDT) |
Switch Operation | On-Off-On |
Contact Current Rating | 3 A @ 120 V ac |
Mounting Type | Panel Mount |
Terminal Type | Solder |
Panel Cut Out Diameter | 4.95mm |
Actuator Length | 5.33mm |
Actuator Material | Chromium Plated Brass |
Contact Resistance | 0.02Ω |
Panel Cut Out Size | 4.95mm |
Contact Material | Silver Plated Brass |
Standards Met | RoHS & Lead Free |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +85°C |
Mechanical Life | 30000Cycles |
Maximum Operating Temperature | +85°C |
