- RS Stock No.:
- 158-4486
- Mfr. Part No.:
- 603021/70-1-043-00-0-00-20-13-46-200-8-6/000
- Brand:
- Jumo
In Global stock for delivery within 5 working day(s)
Added
Price (ex. GST) Each
$594.31
(exc. GST)
$653.74
(inc. GST)
Units | Per unit |
1 - 4 | $594.31 |
5 - 9 | $585.42 |
10 + | $562.74 |
- RS Stock No.:
- 158-4486
- Mfr. Part No.:
- 603021/70-1-043-00-0-00-20-13-46-200-8-6/000
- Brand:
- Jumo
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details

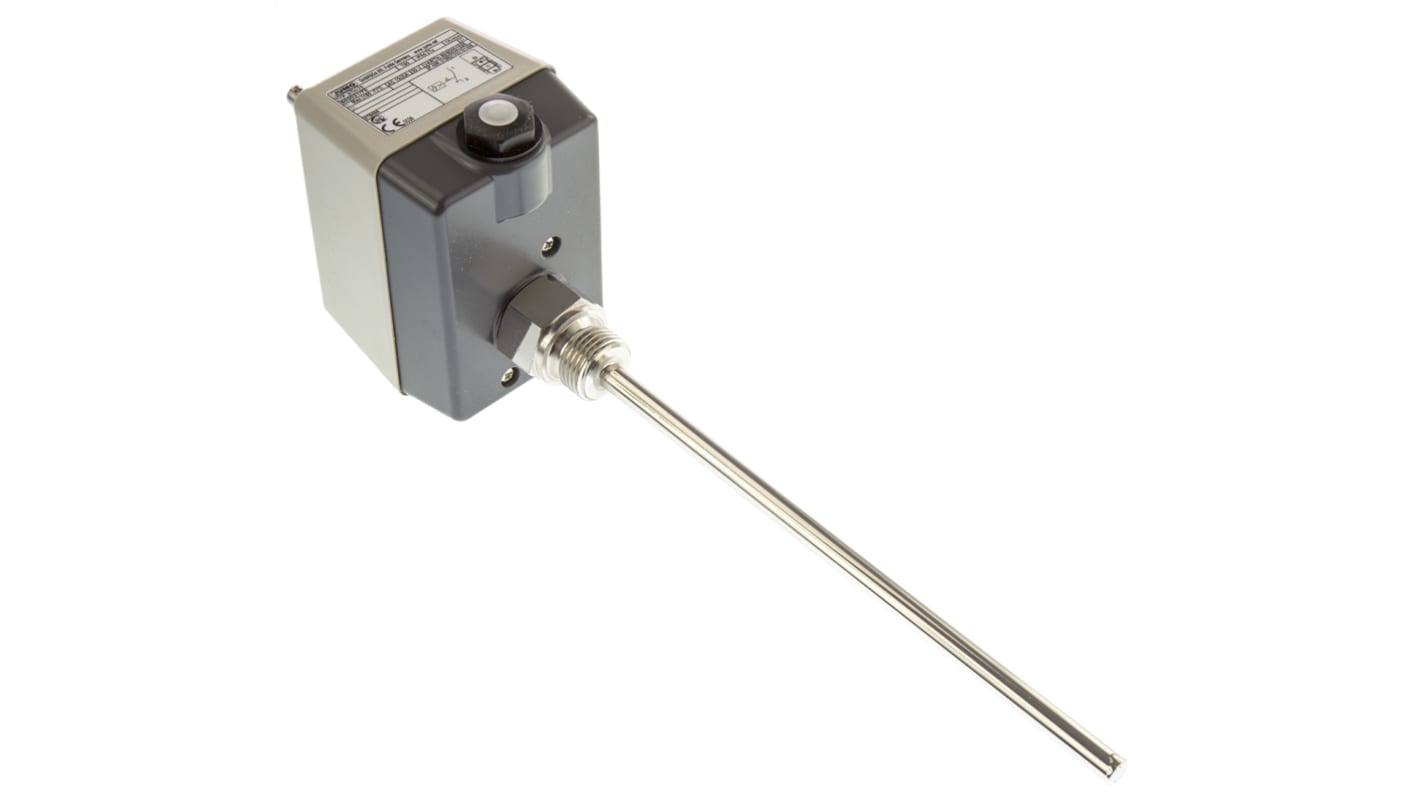

ATHs-70 - safety temperature limiter (STL)
Thermostat with rigid shaft
158-4470 shaft size: 8 x 150 mm
158-4468 shaft size: 8 x 200 mm
Max. Switching current 10 A / 250 V
2 control / limit value ranges: + 30 °C → +110 °C / +20 °C → +150 °C
Process connection: G1/2
Tested in accordance with DIN 3440
158-4470 shaft size: 8 x 150 mm
158-4468 shaft size: 8 x 200 mm
Max. Switching current 10 A / 250 V
2 control / limit value ranges: + 30 °C → +110 °C / +20 °C → +150 °C
Process connection: G1/2
Tested in accordance with DIN 3440
If the temperature at the temperature sensor exceeds the set limit, the circuit is opened and the micro switch is mechanically locked.
Once the temperature falls back below the limit, the micro switch can be manually unlocked once the cap nut has been removed.
Once the temperature falls back below the limit, the micro switch can be manually unlocked once the cap nut has been removed.
Specifications
Attribute | Value |
---|---|
Minimum Temperature | +20°C |
Maximum Temperature | +120°C |
Thermostat Type | Capillary |
Switch Configuration | NC |
Contact Rating | 10A |
Contact Voltage Rating | 230V ac/dc |
Terminal Type | Screw |
Reset Type | Manual |
Mounting Type | Surface Mount |
