Thermocouple & Extension Wire Type J, -10 +105 °C 2 Core Screened PVC Sheath 25m

  • RS Stock No. 814-0002
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

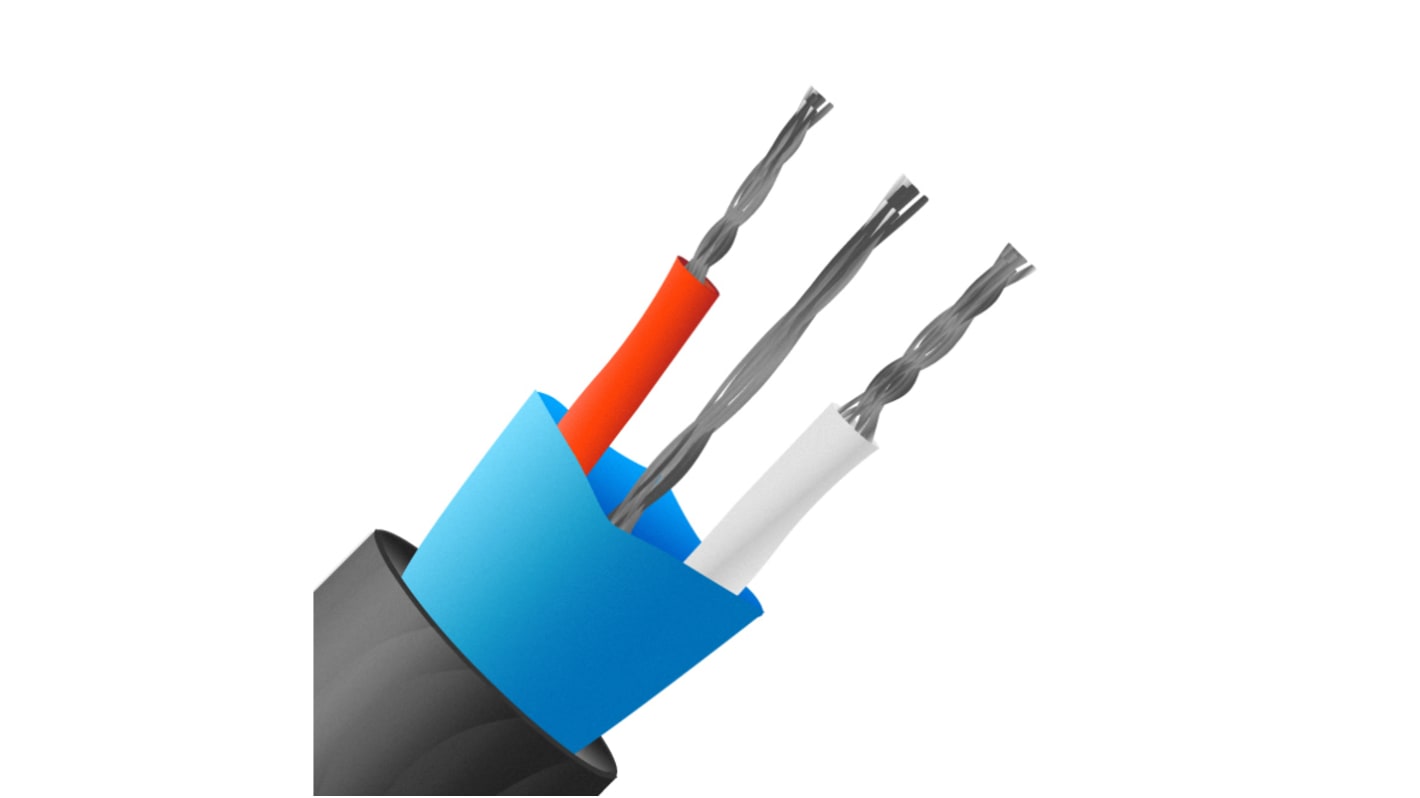

PVC Insulated & Screened Thermocouple Cables

10, 25, 50,100 & 200 metre lengths

These PVC insulated & screened thermocouple extension and compensating cables are designed with twisted cores & screened construction for lowered electrical noise.
Good quality general purpose cables, both highly waterproof and flexible.
Available in thermocouple extension types K, J, T, N and compensating type VX (KCB) for type K thermocouple.

Specifications
Attribute Value
Thermocouple Type J
Number of Cores 2
Length 25m
Minimum Operating Temperature -10°C
Maximum Operating Temperature +105°C
Screened/Unscreened Screened
Core Strands 7/0.2 mm
Insulation Material PVC
Cable Shape Twisted
Number of Strands 7
Size of Strands 0.2 mm
Standards Met ANSI MC96.1, RoHS Compliant
26 In stock for delivery within 7 working day(s) (Global Stock)
Price (ex. GST) Each
$ 37.26
(exc. GST)
$ 40.99
(inc. GST)
units
Per unit
1 - 9
$37.26
10 - 19
$36.61
20 +
$35.92
