- RS Stock No.:
- 825-1225
- Mfr. Part No.:
- 67.9773-100-22
- Brand:
- Staubli
Stock check temporarily unavailable - call for stock availability
Added
Price (ex. GST) Each
$69.10
(exc. GST)
$76.01
(inc. GST)
Units | Per unit |
1 - 4 | $69.10 |
5 - 9 | $67.16 |
10 + | $64.43 |
- RS Stock No.:
- 825-1225
- Mfr. Part No.:
- 67.9773-100-22
- Brand:
- Staubli
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

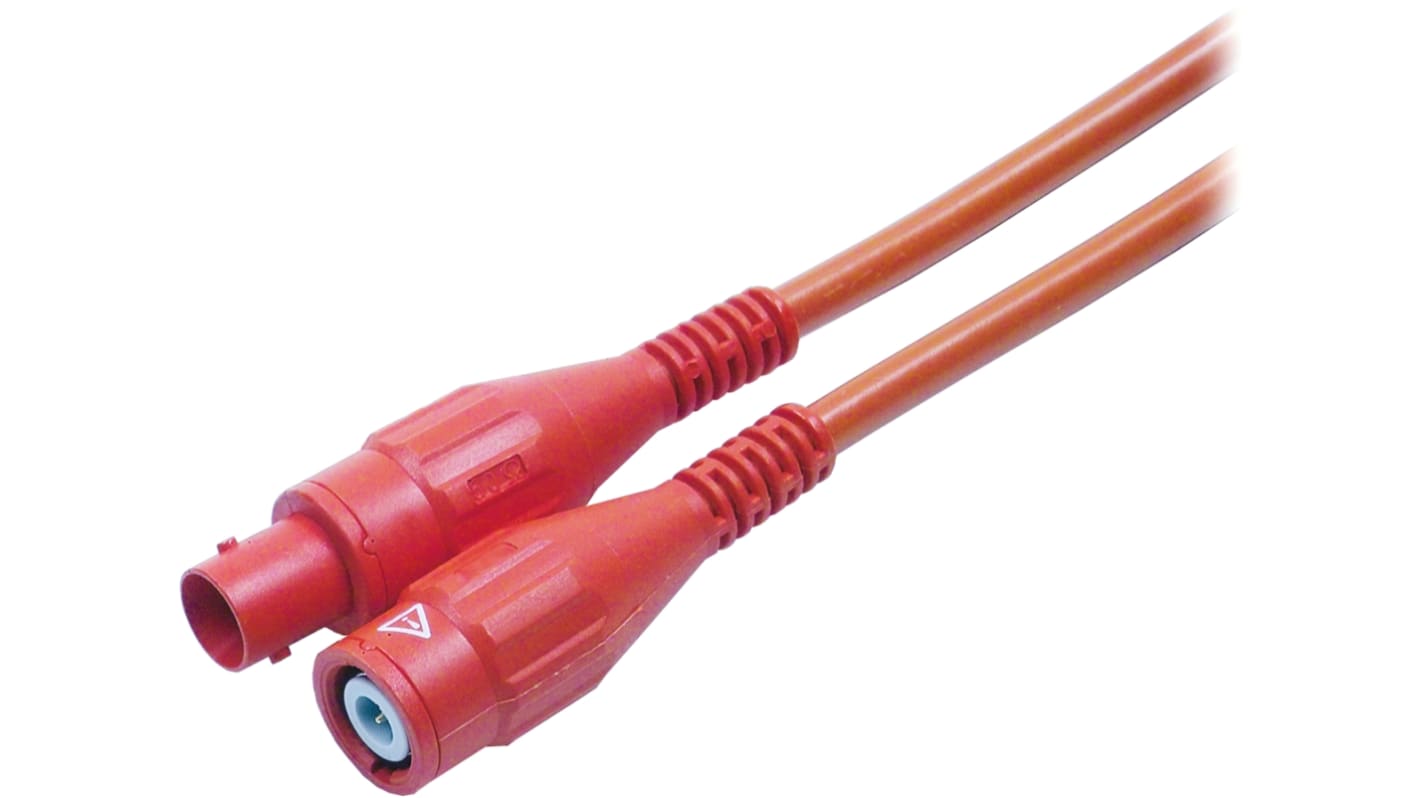

Touch-Protected Coaxial Safety Test Leads
A selection of touch protected 50ohm impedance coaxial safety test leads (RG58 cable), offered in red and black colours with either male BNC connectors on either end of the test lead, 1000V CAT II (600V CAT III) or with male to female BNC connectors, 600V CAT II (300V CAT III), both variants are 100cm in length.
50Ω impedance
Capacity 113pF
Inductance 340nH
Temperature range -10 to +70 °C
Capacity 113pF
Inductance 340nH
Temperature range -10 to +70 °C
Note
825-1219 , 825-1228 are male to male BNC, 825-1221 , 825-1225 are male to female BNC.
Specifications
Attribute | Value |
---|---|
Lead Length | 1m |
Test Lead Type | BNC Test Leads |
Colour | Red |
Voltage Rating | 1kV |
Connector A Gender | Female |
Connector B Gender | Male |
Connector A Shrouded | Yes |
Connector B Shrouded | Yes |
Connector A Orientation | Straight |
Connector B Orientation | Straight |
Contact Material | Nickel-Plated |
Insulation Material | PVC |
Safety Category | CAT II 600 V, CAT III 300V |
Safety Category Voltage | 300 V, 600V |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -10°C |
Safety Category Level | CAT II, CAT III |
