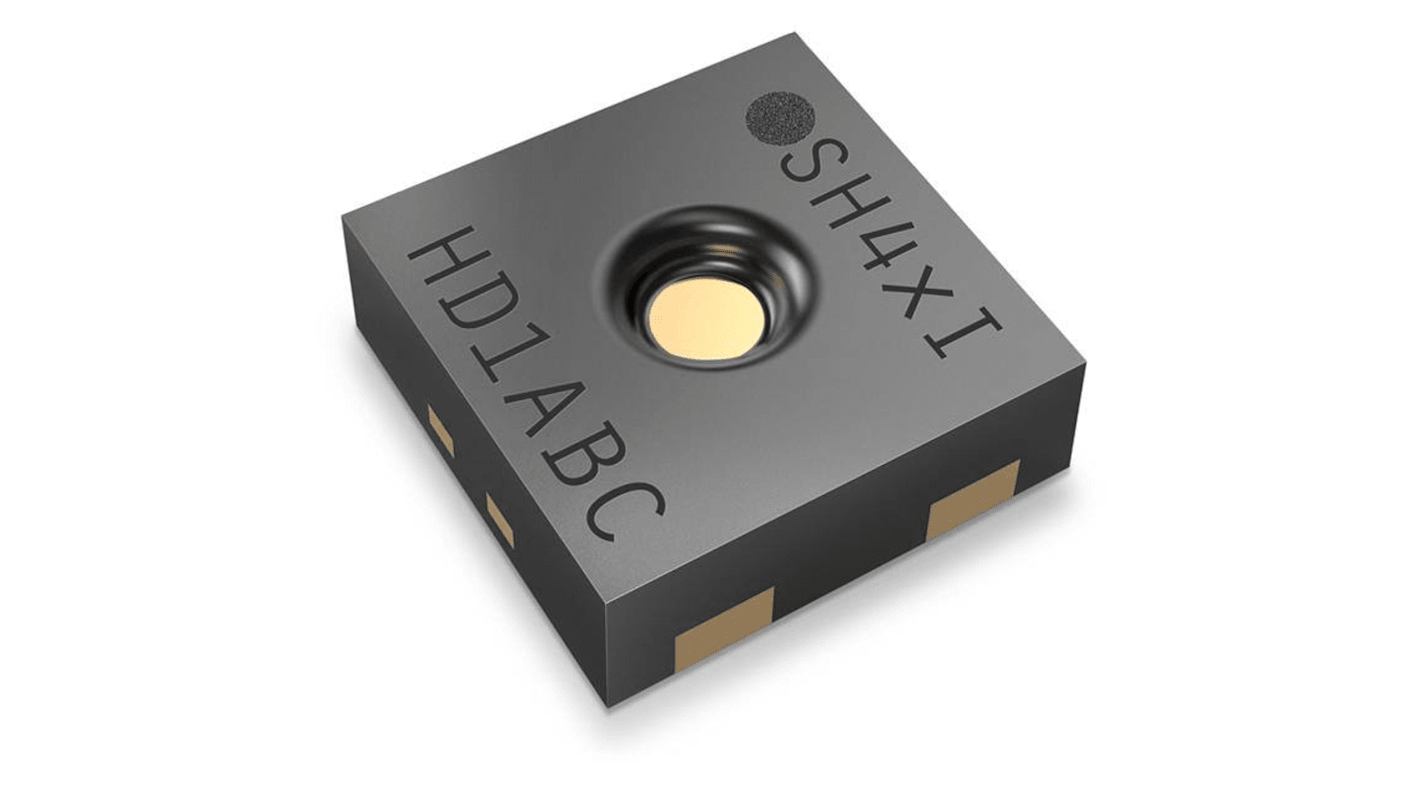

Sensirion SHT4xI Series Temperature and Humidity Sensor, Digital Output, Surface Mount, I2C, ±0.2 °C, ±2 %RH, 4 Pins
- RS Stock No.:
- 236-5205
- Mfr. Part No.:
- SHT40I-AD1B-R2
- Brand:
- Sensirion
On back order for despatch 16/07/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (On a Reel of 2500)
$2.076
(exc. GST)
$2.284
(inc. GST)
| Units | Per unit | Per Reel* |
| 2500 - 2500 | $2.076 | $5,190.00 |
| 5000 - 10000 | $2.038 | $5,095.00 |
| 12500 + | $2.002 | $5,005.00 |
| *price indicative | ||
- RS Stock No.:
- 236-5205
- Mfr. Part No.:
- SHT40I-AD1B-R2
- Brand:
- Sensirion
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
The Sensirion SHT4xI series is an industrial-grade digital sensor platform for measuring relative humidity and temperature with different accuracy classes. It meets demanding ESD and robustness requirements of industrial applications. The sensors can be interfaced via several preconfigured I2C addresses with I2C fast mode plus and CRC checksum.
Relative humidity accuracy of up to ±2 %RH
Temperature accuracy of up to ±0.2 °C
Supply voltage of 2.3 V to 5.5 V
Average current of 21 μA
Operating range of 0 to 100 %RH, -40to125 °C
Fully functional in condensing environment
Temperature accuracy of up to ±0.2 °C
Supply voltage of 2.3 V to 5.5 V
Average current of 21 μA
Operating range of 0 to 100 %RH, -40to125 °C
Fully functional in condensing environment
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Sensor Function | Temperature & Humidity |
| Output Type | Digital |
| Interface Type | I2C |
| Accuracy | ±0.2 °C, ±2 %RH |
| Mounting Type | Surface Mount |
| Pin Count | 4 |
| Operating Temperature Range | -40 → 125 °C |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | 125 °C |
| Minimum Operating Supply Voltage | 2.3 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Package Type | DFN |
| Length | 1.5mm |
| Series | SHT4xI |
| Height | 0.5mm |
| Width | 1.5mm |
| Resolution | 16 bit |
| Dimensions | 1.5 x 0.5 x 1.5mm |
