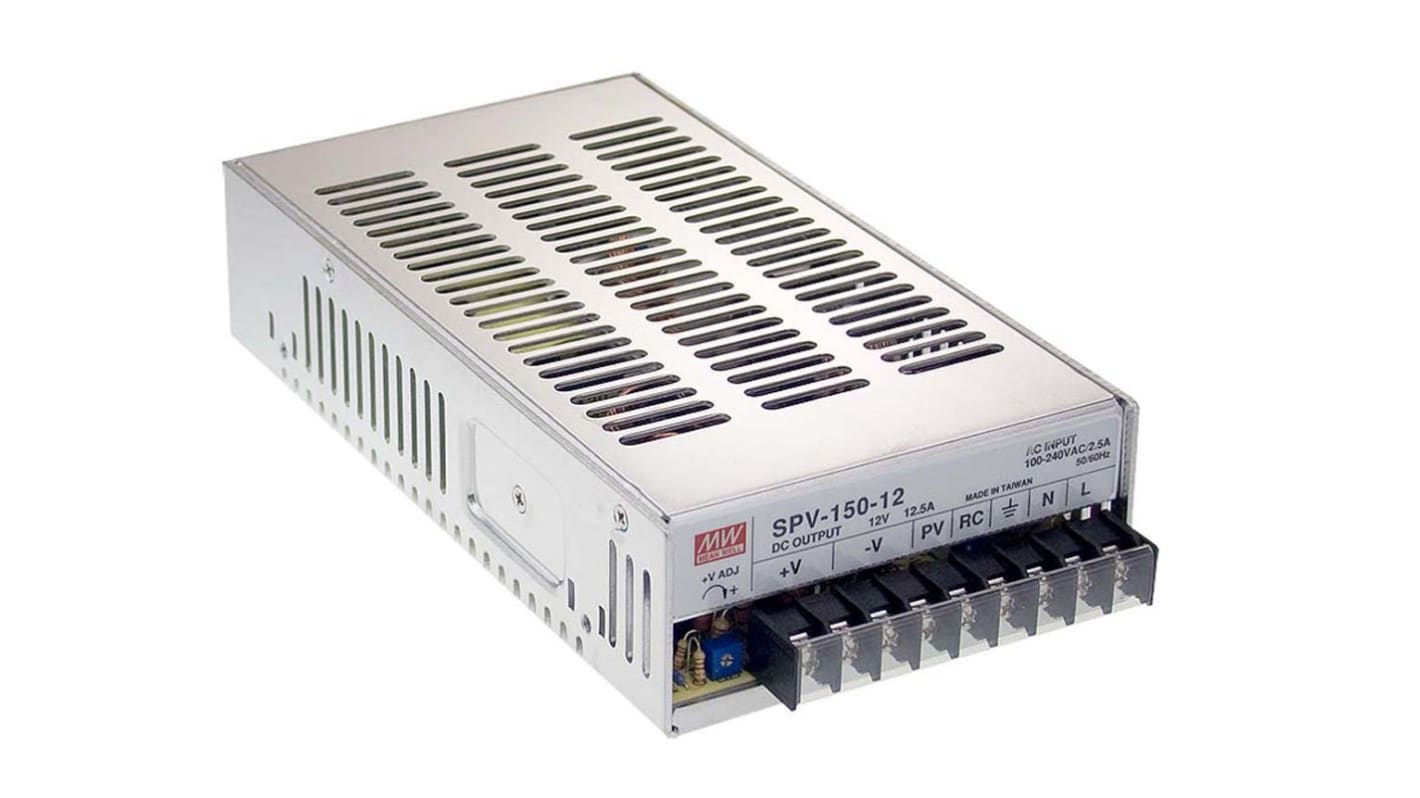

MEAN WELL Switching Power Supply, SPV-150-48RS, 48V dc, 3.125A, 150W, 1 Output, 124 → 370 V dc, 88 → 264

The SPV-150 is a series of single output enclosed type power supply with programmable output voltage function. By adding 1∼5.5 Vdc external control signal the output voltage can be trimmed from 20% to 110% of the rated value, which increases the flexibility to end systems users and fulfils equipments which requires switching between different output voltages. This power supply is high frequency design and possesses efficiency up to 83%. The SPV-150 is cooled by free air convection. This switch mode power supply features short circuit, over voltage, overload and over temperature protection. Ideal applications for the SPV-150 include LCD panel burn in system, IC testing equipment, factory automation, mechanical and electrical industry, or any applications that often need to adjust the output voltage.

Universal AC input / Full range
Built-in active PFC function, PF>0.95
Protections: Short circuit, Overload, Over voltage, Over temperature
Fixed switching frequency at 100KHz
Output voltage programmable from 20∼110% by 1→ 5.5Vdc external control signal

UL60950-1, EN60950-1
