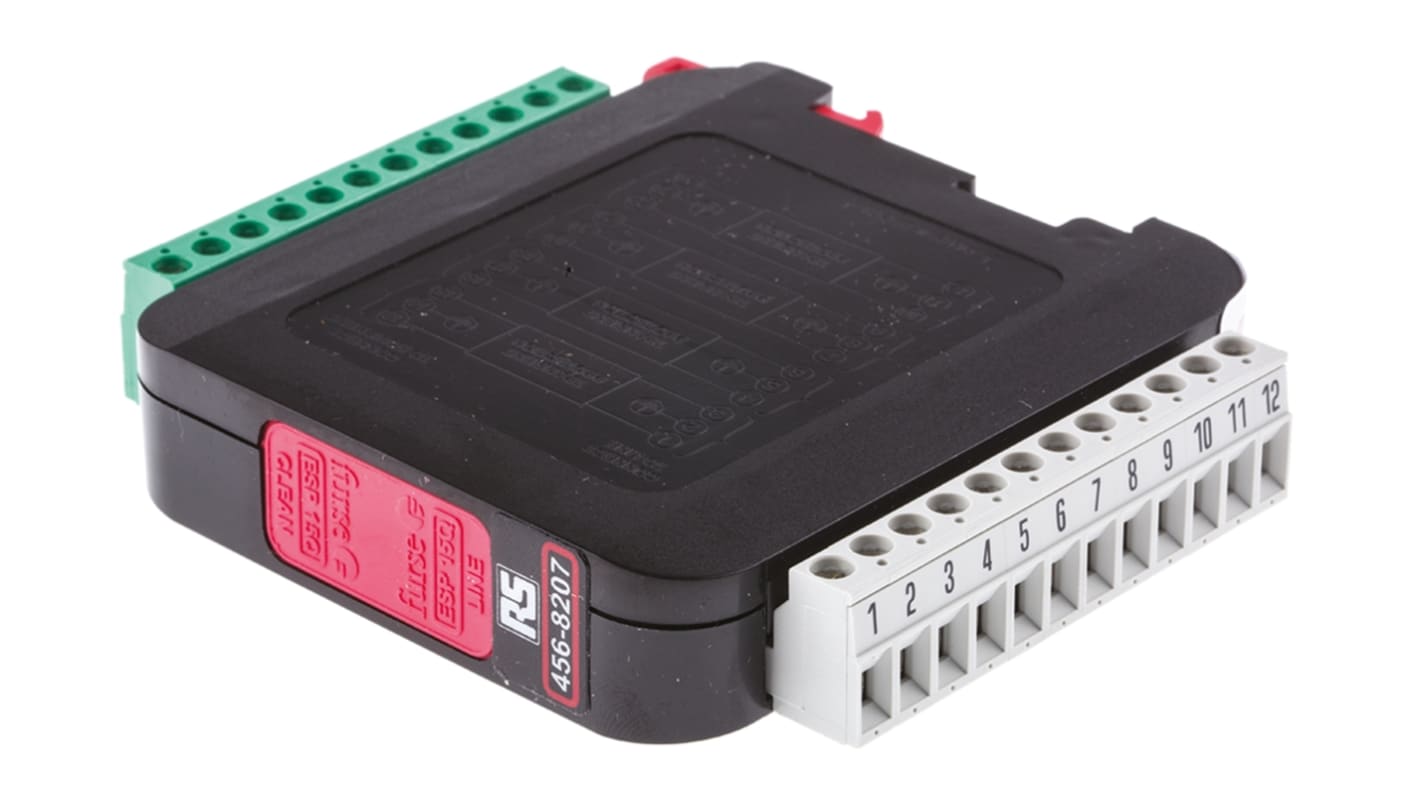

WJ Furse, ESP Q Surge Suppressor Unit 18.8 V Maximum Voltage Rating 5kA Maximum Surge Current 8 wire 15V Surge Protector
- RS Stock No.:
- 456-8207
- Mfr. Part No.:
- 7TCA085400R0098 ESP 15Q
- Brand:
- WJ Furse
1 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$709.73
(exc. GST)
$780.70
(inc. GST)
| Units | Per unit |
| 1 - 9 | $709.73 |
| 10 + | $674.95 |
- RS Stock No.:
- 456-8207
- Mfr. Part No.:
- 7TCA085400R0098 ESP 15Q
- Brand:
- WJ Furse
Technical data sheets
- ESP Q & TNQ Series Data Sheet
- Protection for Data and Signal Lines in Intrinsically Safe Circuits Application Note
- Choosing the Correct Furse ESP Lightning Barrier for your Application
- Protection of Wind Turbines Application Note
- Protection of Photovoltaic (PV) Systems Application Note
- ABB IET Wiring Regulations BS 7671 18TH Edition
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Quad 0.75A twisted-pair lightning surge arrestors
"4 pair enhanced surge protector suitable for twisted pair signalling applications
Very low let-through voltage between all lines
Very low (1Ω) in-line resistance
Space efficient
Sturdy, flame retardant, ABS housing
Built in DIN foot for top hat and G DIN connection for easy installation. Product can also be flat-mounted
Colour-coded terminals which can be removed for easy installation
Earthed via DIN rail or M5 stud"
Very low let-through voltage between all lines
Very low (1Ω) in-line resistance
Space efficient
Sturdy, flame retardant, ABS housing
Built in DIN foot for top hat and G DIN connection for easy installation. Product can also be flat-mounted
Colour-coded terminals which can be removed for easy installation
Earthed via DIN rail or M5 stud"
Approvals
UK Oftel NS/G/1235/W/100025
Approvals
UK Oftel NS/G/1235/W/100025
Transient Voltage Suppressors (Data Lines)
Specifications
Attribute | Value |
|---|---|
| Suppressor Type | 8 wire 15V Surge Protector |
| Maximum Voltage Rating | 18.8 V |
| Mounting Type | DIN Rail |
| Maximum Surge Current | 5 kA, 20kA |
| Series | ESP Q |
| Length | 110mm |
| Depth | 18mm |
| Height | 180mm |
| Dimensions | 95 x 87 x 18mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
