    TE Connectivity Open Barrel Wire Splice Connector 22 → 15 AWG

    RS Stock No.:
    718-7561
    Mfr. Part No.:
    280005-1
    Manufacturer:
    TE Connectivity
    TE Connectivity

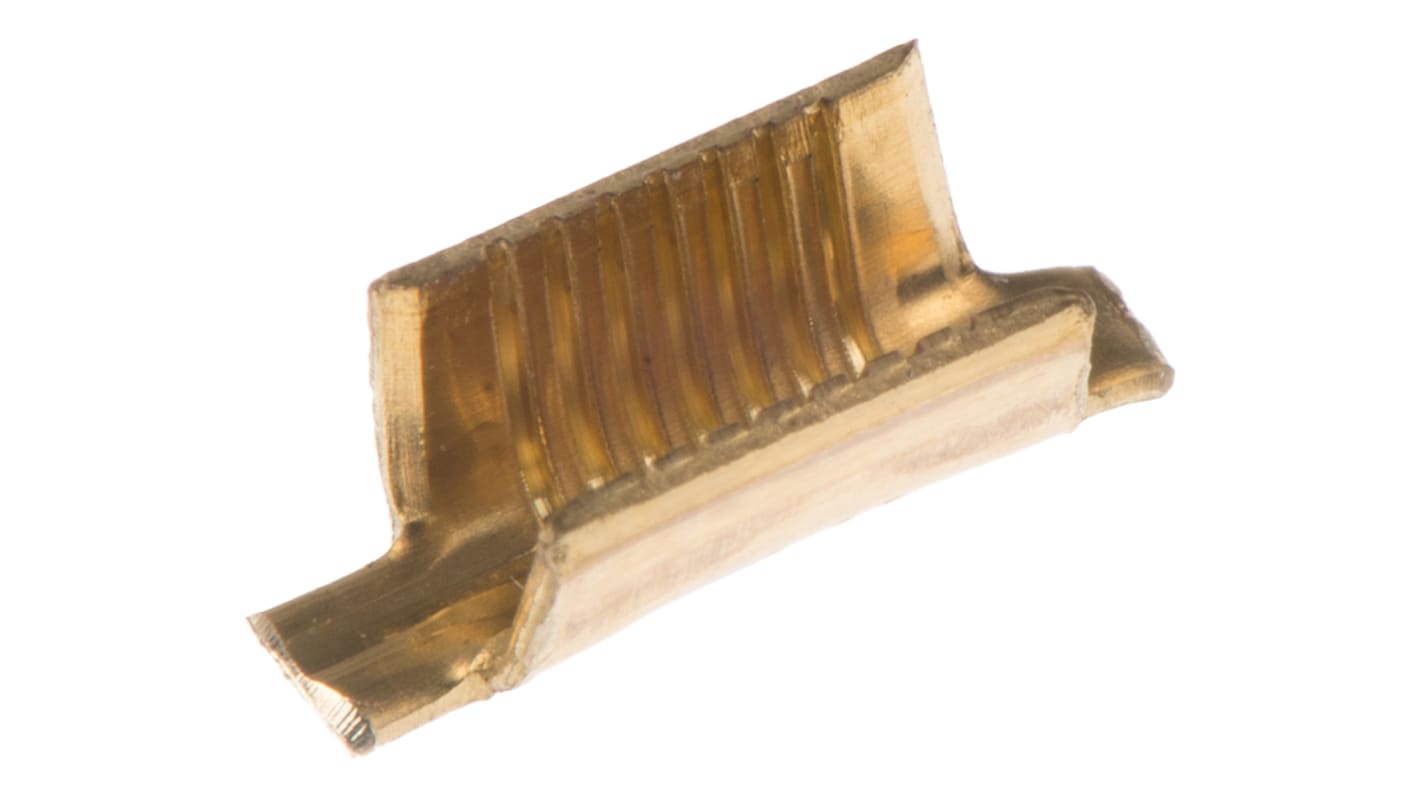

    This image is representative of the product range

    View all Splice Connectors
    Discontinued product
    RS Stock No.:
    718-7561
    Mfr. Part No.:
    280005-1
    Manufacturer:
    TE Connectivity

    Legislation and Compliance


    Product Details

    TE Connectivity AMPLIVAR Splice Terminals


    AMPLIVAR splices terminals designed for terminating copper and/or aluminium magnet wire to itself or in combination with standard solid or stranded lead wire. These AMPLIVAR wire splices are insulation displacing avoiding the need to pre-strip the wire. The wire barrel contains sharp edged serrations that, during crimping, pierce the insulation of the magnet wires providing a large contact area for a superior electrical connection. At the same time, the magnet wire is forced into the serrations inside the barrel. These AMPLIVAR splice connectors produce a crimp with an excellent tensile strength and resistance to vibration and corrosion. Connections made with these AMPLIVAR splice terminals are free from contaminant such as stripper residue and solder flux resulting in a high-quality electrical connection. Up to three magnet wires can be terminated at the same time in one barrel. Copper and Magnet wire or a combination of both can be crimped. Magnet wire can also be combined with pre-stripped solid or stranded lead wires.

    Features and Benefits


    • Insulation displacing serrations in barrel eliminate need to pre-strip wire
    • High tensile crimp
    • Vibration and corrosion resistant
    • Contaminant free high-quality electrical connection
    • Up to 3 magnet wires plus a lead wire in one crimp
    • Aluminium and copper magnet wire can be combined
    • Insulation displacing serrations in barrel eliminate need to pre-strip wire

    Applications


    These AMPLIVAR splices can be used in a wide range of applications. Applications include motor windings and connections, coil connections, transformer windings and connections, solid wire connections, lighting ballasts, power supplies and starters and alternators


    Splices

    Specifications

    AttributeValue
    Splice TypeOpen Barrel
    Wire Size22 → 15 AWG
    Overall Length8.13mm
    InsulationUninsulated
    Contact MaterialBrass
    Discontinued product
