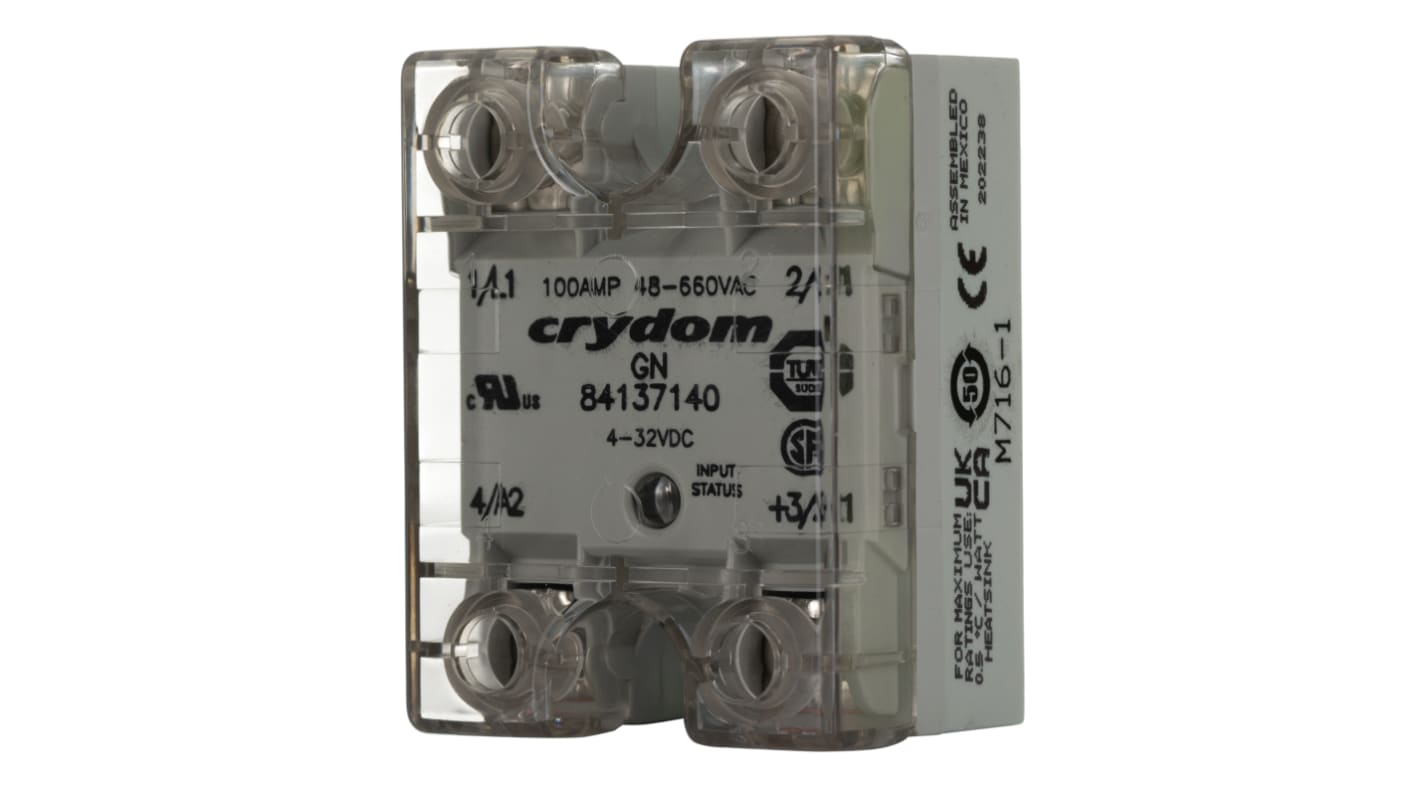

Sensata / Crydom GN Series Solid State Relay, 100 A rms Load, Panel Mount, 660 V ac Load, 32 V dc Control
- RS Stock No.:
- 145-0543
- Mfr. Part No.:
- 84137140
- Brand:
- Sensata / Crydom
17 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$259.61
(exc. GST)
$285.57
(inc. GST)
| Units | Per unit |
| 1 + | $259.61 |
- RS Stock No.:
- 145-0543
- Mfr. Part No.:
- 84137140
- Brand:
- Sensata / Crydom
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
Sensata | Crydom Solid-State Relay, Panel Mounting, 48 to 660V AC Operating Voltage Range - GN Series - 84137140
Need a reliable control solution for your heavy-duty industrial loads? This solid-state relay from Sensata | Crydom is just the thing, thanks to its rated load current of 100A. It has no moving parts, so you can take mechanical wear off your worry list. The device opens and closes your circuit based on control signals it receives through its sensor, giving you automated command of your system. Its thermoplastic housing provides the durability and resistance to impact you need in harsh environments. SSRs like this one are commonly used in robotics and lighting control applications.
Features & Benefits
• Wide operating voltage range between 48 and 660V AC makes it a versatile choice
• Dielectric strength of 4000Vrms shows it's a reliable insulator for protection against high voltages
• Screw termination method is simple and doesn't need any complex tools, saving time and hassle
• Dielectric strength of 4000Vrms shows it's a reliable insulator for protection against high voltages
• Screw termination method is simple and doesn't need any complex tools, saving time and hassle
How do I know that this unit is receiving an input signal?
This unit comes with a green LED status indicator that turns on when there's an input signal, so it's a breeze to monitor.
Crydom Solid State Relay and Accessories
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 100 A rms |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 660 V ac |
| Minimum Load Voltage | 48 V ac |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Crossing |
| Control Voltage Range | 3 → 32 V dc |
| Minimum Load Current | 100mA rms |
| Range | Easy Pick |
| Number of Poles | 1 |
| Terminal Type | Screw |
| Output Device | SSR |
| Relay Type | Solid State Relay |
| Series | GN |
| Load Voltage Range | 48 → 660V ac |
| Maximum Turn On Time | 1/2 cycle + 1 ms |
| Dimensions | 44.5 x 57.3 x 30.9mm |
| Length | 44.5mm |
| Depth | 57.3mm |
| Operating Temperature Range | -40 → +80°C |
| Height | 30.9mm |
| Capacitance | 8pF |
| Standards Met | CE, CSA LR 38595, cULus Recognised E79183, EMC Compliant, EN 60950-1, EN 62314:2006, IEC, IEC 61000-4-2, IEC 61000-4-4, TUV, UL |
| Minimum Operating Temperature | -40°C |
| Off State Leakage Current | 0.25mArms |
| Maximum Operating Temperature | +80°C |
| Special Features | Improved SEMS Screw & Washer, IP20, LED Input Status Indicator, Redesigned Housing with Anti-Rotation Barriers |
