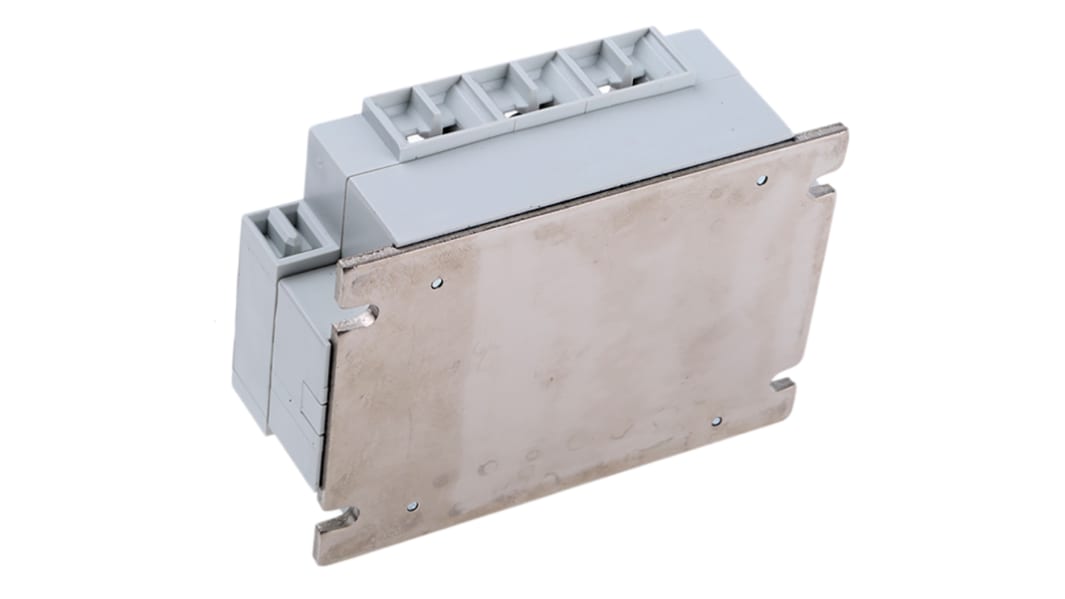

GN3 Series Three Phase Relays

The GN3 series consists of three solid-state outputs controlled by one input, and functions similar to any standard solid-state relay. When the input signal is applied, each output conducts load current for it's respective phase in the network.

Features and Benefits

DBC substrate for superior thermal performance
Epoxy-free design reduces internal component stress
Back-to-Back dual SCR output for heavy industrial loads
Zero crossing output
Snubber circuit
100k-cycle UL508 endurance rating for enhanced reliability
No external transient protection required (internal TVS)
EMC Compliant for reliable operation in harsh environments

Note

Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet

Approvals

UL, CSA, TUV

Crydom Solid State Relay and Accessories

Select all	Attribute	Value
	Brand	Crouzet
	Maximum Load Current	25 A
	Mounting Type	Panel Mount
	Maximum Load Voltage	600 V rms
	Maximum Control Voltage	32 V
	Switching Type	Zero Crossing
	Control Voltage Range	4 → 32 V dc
	Minimum Load Current	100 mA
	Output Device	SCR
	Load Voltage Range	48 → 530V ac
	Dimensions	103.89 x 79.74 x 35.43mm
	Maximum Operating Temperature	+80°C
	Depth	79.74mm
	Length	103.89mm
	Height	35.43mm
	Minimum Operating Temperature	-40°C
	Operating Temperature Range	-40 → +80°C

	Select all
	Brand Crouzet
	Maximum Load Current 25 A
	Mounting Type Panel Mount
	Maximum Load Voltage 600 V rms
	Maximum Control Voltage 32 V
	Switching Type Zero Crossing
	Control Voltage Range 4 → 32 V dc
	Minimum Load Current 100 mA
	Output Device SCR
	Load Voltage Range 48 → 530V ac
	Dimensions 103.89 x 79.74 x 35.43mm
	Maximum Operating Temperature +80°C
	Depth 79.74mm
	Length 103.89mm
	Height 35.43mm
	Minimum Operating Temperature -40°C
	Operating Temperature Range -40 → +80°C

Crouzet Solid State Relay, 25 A Load, Panel Mount, 600 V rms Load, 32 V Control
