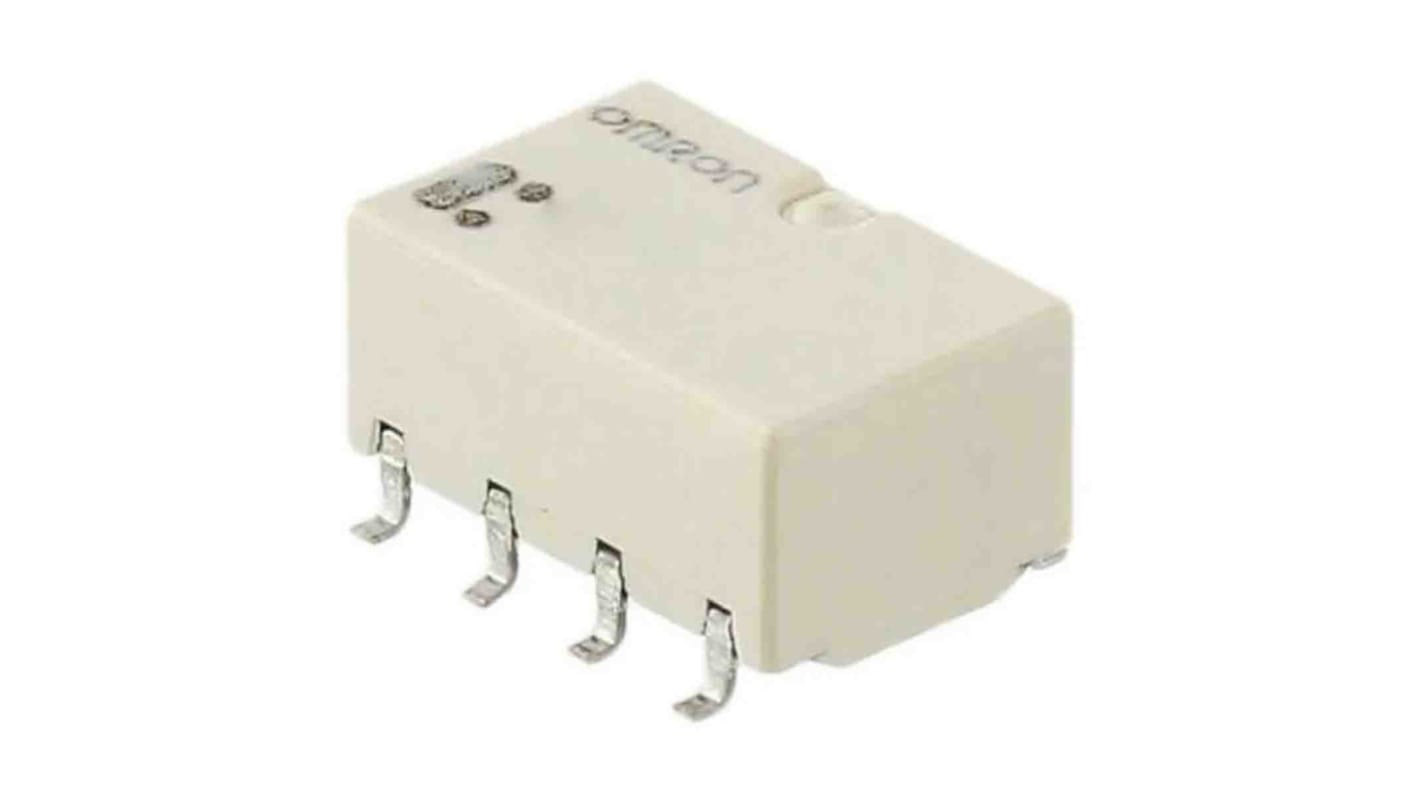

Omron Surface Mount Signal Relay, 12V dc Coil, 1A Switching Current, DPDT
- RS Stock No.:
- 205-1976
- Mfr. Part No.:
- G6K-2F-TR DC12
- Brand:
- Omron
Available for back order.
Price (ex. GST) Each (On a Tape of 1800)
$4.152
(exc. GST)
$4.567
(inc. GST)
Units | Per unit | Per Tape* |
|---|---|---|
| 1800 - 1800 | $4.152 | $7,473.60 |
| 3600 - 5400 | $4.048 | $7,286.40 |
| 7200 + | $3.986 | $7,174.80 |
*price indicative
- RS Stock No.:
- 205-1976
- Mfr. Part No.:
- G6K-2F-TR DC12
- Brand:
- Omron
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
The Omron Electronic Components Surface Mounting Relay with the worlds smallest mounting area. This Sub miniature model is as small as 5.2 (H) x 6.5 (W) x 10 (L) mm which is ideal for high-density mounting. Surface mounting terminal models incorporate a u
5% to 85% operating humidity
-40°C to +70°C operating temperature
100mO maximum contact resistance
-40°C to +70°C operating temperature
100mO maximum contact resistance
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 12V dc |
| Contact Configuration | DPDT |
| Mounting Type | Surface Mount |
| Maximum Switching Current DC | 1 A |
| Maximum Switching Voltage AC | 125V ac |
| Maximum Switching Voltage DC | 60V dc |
| Series | G6K |
| Maximum Switching Power DC | 30 W |
| Length | 10mm |
| Latching | No |
| Depth | 6.5mm |
| Height | 5.2mm |
| Dimensions | 10 x 6.5 x 5.2mm |
| Terminal Type | Surface Mount |
| Switching Current | 1A |
| Number of Poles | 2 |
| Isolation Coil To Contact | 1kV rms |
| Coil Power | 100mW |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +70°C |
| Contact Material | Gold Plated |
| Features | Low Dimension And Weight Combines To Improve Mounting Efficiency, RoHS Complaint |
| Coil Resistance | 1300Ω |
| Operating Temperature Range | -40 → +70°C |
| Electrical Life | 100000 Operations |
