RS PRO Steel Zinc plated & clear Passivated Self Clinching Stud, M4, length-12mm

RS Stock No.:: 827-388
Brand:: RS PRO

RS PRO Steel Zinc plated & clear Passivated Self Clinching Stud, M4, length-12mm

21 In AU stock for next working day delivery

54 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) 1 Bag of 50

$14.94

(exc. GST)

$16.43

(inc. GST)

Bag(s)	Per Bag	Per unit*
1 - 4	$14.94	$0.299
5 +	$12.28	$0.246
*price indicative

RS Stock No.:: 827-388
Brand:: RS PRO

Technical data sheets

Legislation and Compliance

Product Details

Captive Stud Fasteners

Threaded self-clinching studs designed for quick installation using a simple press.

Case-hardened, zinc plated & clear passivated mild steel, to BS3382
Provides a cost-effective means of threaded stud placement in thin sheet metal applications

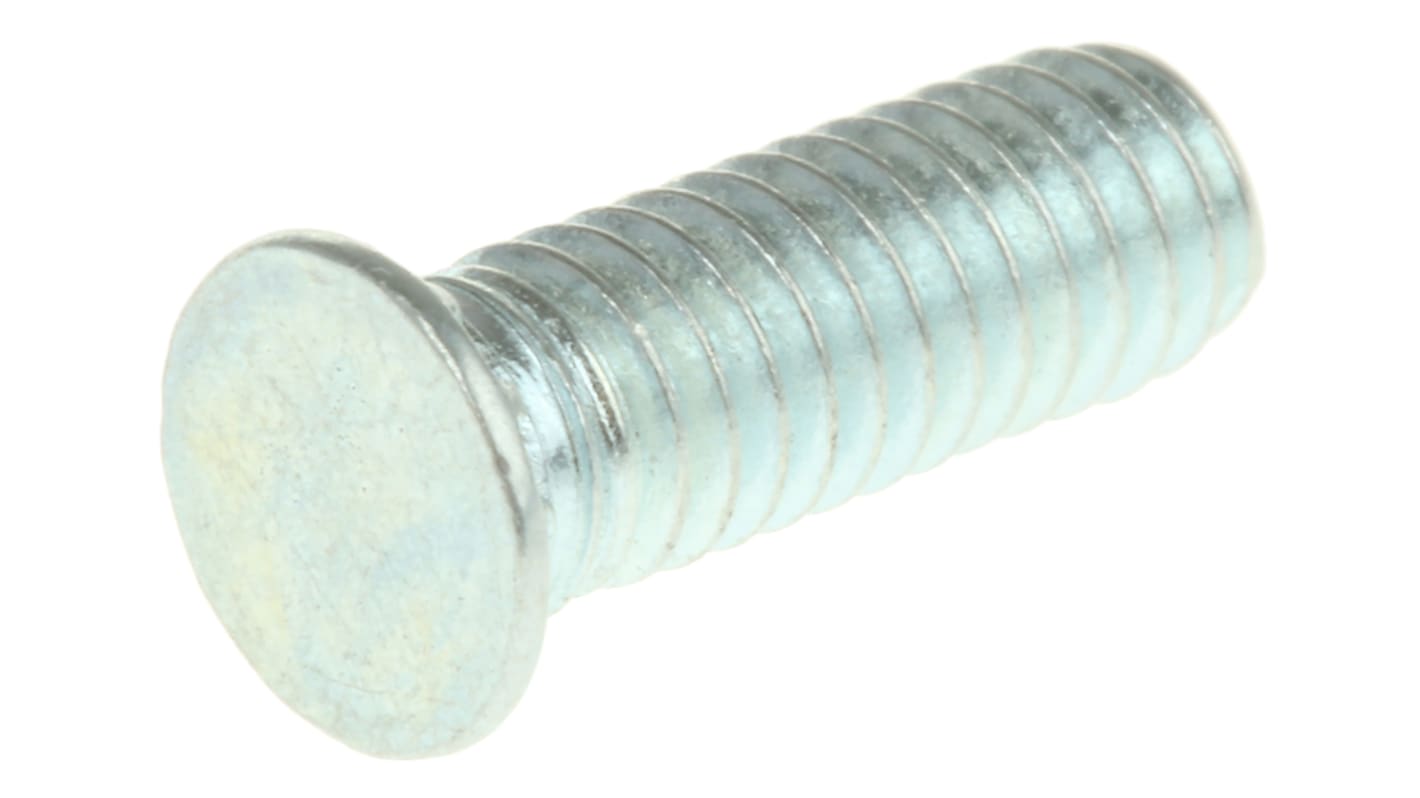

RS PRO Zinc Plated Passivated Self Clinching Captive Stud (M4 x 12mm)

Zinc plated clear passivated self-clinching captive studs designed for use in sheet metal applications. The studs are attached to the sheet metal via a simple mechanical press, creating a permanent and secure connection.

The press studs feature a Stainless Steel construction ensuring a strong and reliable stud that won’t sheer or break under pressure or vibration, and the Zinc plating is highly resistant to corrosion. On top of this the clear passivated finish provides an extra layer of resistance providing long term protection from weather and environmental factors, making the Stainless Steel captive studs suitable for use in outdoor applications and in harsh conditions.

The Zinc plated studs are easy to install and can simply be inserted into a hole before being secured with a press tool where the self-clinching design creates a permanent connection.

A cost effective and versatile fastener suitable for use in a wide range of sheet metal applications and commonly found in electronics, aerospace, automotive and construction industries.

Features and Benefits

M4 x 12mm Captive stud
Self-clinching
Stainless Steel construction
Zinc plated
Clear passivated finish

Standards and Approvals: BS3382

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Specifications

Attribute	Value
Thread Size	M4
Head Diameter	5.5mm
Length	12mm
For Panel Thickness Minimum	1mm
Fixing Hole Diameter	4mm
Material	Steel
Finish	Zinc plated & clear Passivated
