- RS Stock No.:
- 179-4743
- Mfr. Part No.:
- HS5L-VA44M-G
- Brand:
- Idec
5 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$324.06
(exc. GST)
$356.47
(inc. GST)
Units | Per unit |
1 - 24 | $324.06 |
25 - 49 | $318.59 |
50 + | $305.38 |
- RS Stock No.:
- 179-4743
- Mfr. Part No.:
- HS5L-VA44M-G
- Brand:
- Idec
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

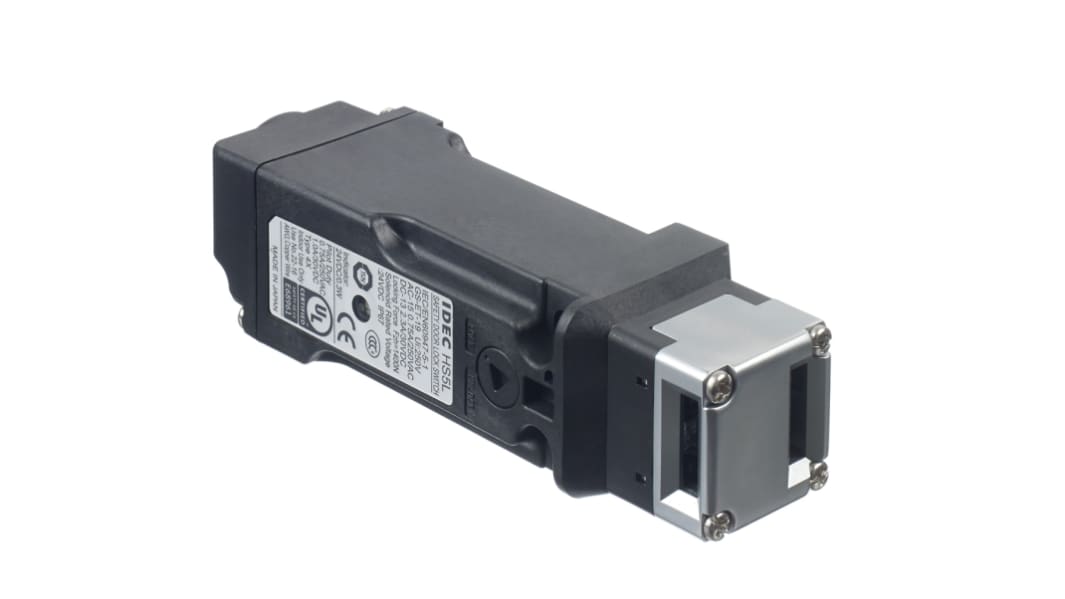

Idec Switch
The Idec HS5L series solenoid interlock switch has a locking strength of 1400N and four contacts in a compact housing. It is designed to work in applications with limited mounting spaces such as small doors. This model is equipped with a manual lock release key and an LED indicator.
Features and Benefits
1NC-1NO (door monitor) and 1NC-1NO (lock monitor) safety contacts
Compact in size
Dual safety circuit and four-circuit independent outputs available
Gold-plated contacts suitable for small loads
Head orientation can be rotated in eight different ways
LED illumination colour is green
M20 connection type
Operating temperature ranges between -25°C and 55°C
Spring clamp terminal block prevents loosening of wires due to vibration
Spring lock type
Compact in size
Dual safety circuit and four-circuit independent outputs available
Gold-plated contacts suitable for small loads
Head orientation can be rotated in eight different ways
LED illumination colour is green
M20 connection type
Operating temperature ranges between -25°C and 55°C
Spring clamp terminal block prevents loosening of wires due to vibration
Spring lock type
Applications
Cutting
Doors
Pressing
Rotating
Doors
Pressing
Rotating
Certifications
CCC certified
CE certified
cUL listed
EN ISO14119
IP67 rated
TUV
CE certified
cUL listed
EN ISO14119
IP67 rated
TUV
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Lock Style | Keyed |
Normal State Configuration | 1NC/1NO + 1NC/1NO |
Lock Type | Spring Lock |
Maximum AC Voltage | 250V |
Maximum DC Voltage | 30V |
Connection Type | M20 |
IP Rating | IP67 |
Series | HS5L |
Minimum Operating Temperature | -25°C |
Length | 35mm |
Maximum Operating Temperature | +55°C |
Width | 61.6mm |
Maximum Current | 2.5A |
Depth | 127mm |
