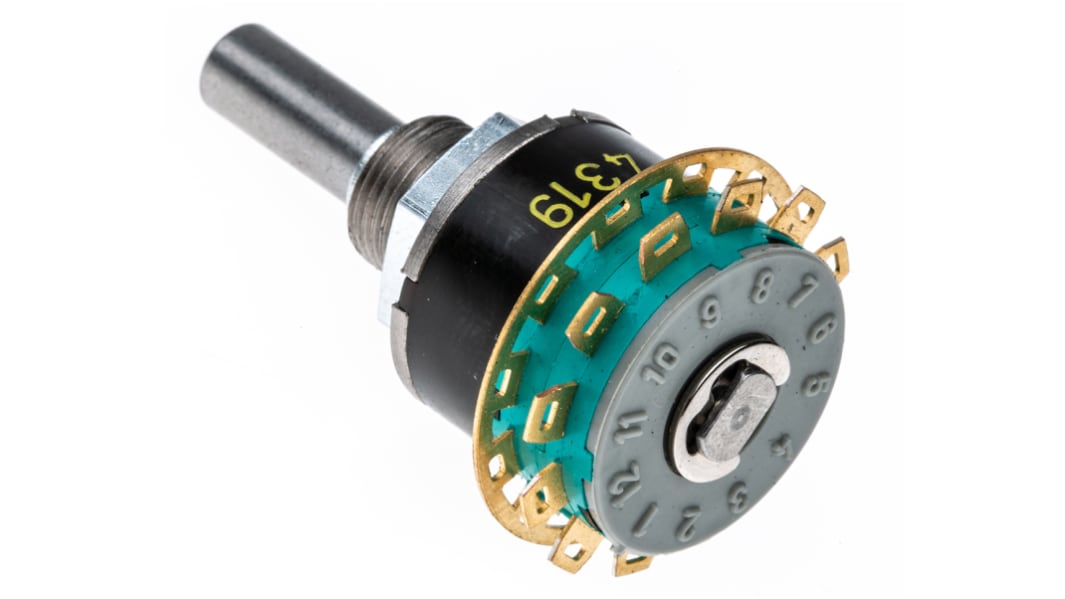

NSF GX non short, 12 Position SP12T Rotary Switch, 250 mA @ 60 V, Solder
- RS Stock No.:
- 321-363
- Mfr. Part No.:
- 500399-000-000-000
- Brand:
- NSF
287 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each
$146.76
(exc. GST)
$161.44
(inc. GST)
Units | Per unit |
---|---|
1 - 49 | $146.76 |
50 - 99 | $142.38 |
100 - 249 | $138.00 |
250 - 499 | $135.06 |
500 + | $132.12 |
- RS Stock No.:
- 321-363
- Mfr. Part No.:
- 500399-000-000-000
- Brand:
- NSF
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Enclosed Wafer Switch
A rotary wafer switch, the wafers being enclosed within a polymeric housing
The contact material is gold and the switch mechanism has 30° indexing
The contact material is gold and the switch mechanism has 30° indexing
![](https://media.rs-online.com/t_line/L321329-02.gif)
Specifications
Attribute | Value |
---|---|
Contact Configuration | SP12T |
Series | GX non short |
Contact Current Rating | 250 mA @ 60 V |
Number of Switch Positions | 12 |
Number of Contacts | 1 |
Voltage Rating | 125V ac |
Diameter | 25.5mm |
Dimensions | 25.5 x 44mm |
Mounting Type | Panel Mount |
Mounting Hole Size | 8.5 x 10 mm |
Terminal Type | Solder |
Maximum Operating Temperature | +85°C |
Mechanical Life | 25000Operations |
Minimum Operating Temperature | -40°C |
Height | 44mm |
Contact Material | Gold |
Case Material | Diallylphthalate |
