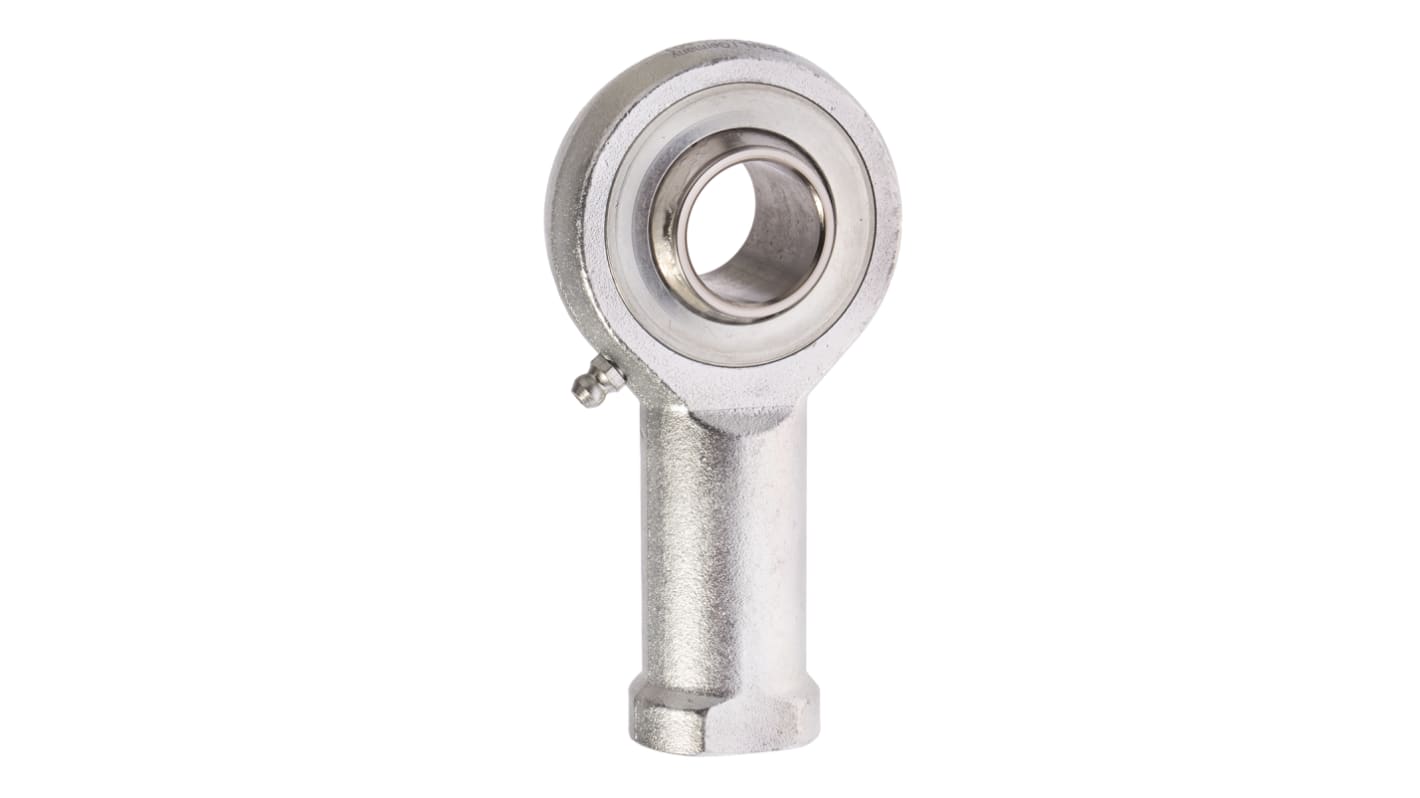

Durbal Forged Steel Rod End, 30mm Bore, 145mm Long, Metric Thread Standard, Female Connection Gender
- RS Stock No.:
- 185-0141
- Mfr. Part No.:
- BRF 30-00-502
- Brand:
- Durbal
On back order for despatch 21/05/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$624.53
(exc. GST)
$686.98
(inc. GST)
| Units | Per unit |
| 1 - 4 | $624.53 |
| 5 + | $607.03 |
- RS Stock No.:
- 185-0141
- Mfr. Part No.:
- BRF 30-00-502
- Brand:
- Durbal
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Premium Line Rod Ends low maintenance, lubrication possible rod ends with integral self-aligning roller or ball bearing.
Female thread greasable, low maintenance, shields adapter.
Rod end housing: forged steel, tempered, case hardened bearing race, ground and lapped, surface galvanized
Inner ring: ball bearing steel, hardened, superfine ground
Lubrication: Polyrex EP2 or soap complex
Temperature range -20 °C to +120 °C
Bearing clearance: 15 - 40 μm radial
Inner ring: ball bearing steel, hardened, superfine ground
Lubrication: Polyrex EP2 or soap complex
Temperature range -20 °C to +120 °C
Bearing clearance: 15 - 40 μm radial
Specifications
Attribute | Value |
|---|---|
| Bore Size | 30mm |
| Material | Forged Steel |
| Dynamic Load Rating | 14.2kN |
| Static Load Rating | 7.5kN |
| Overall Length | 145mm |
| Connection Thread Standard | Metric |
| Maximum Operating Temperature | +120°C |
| Minimum Operating Temperature | -20°C |
| Connection Gender | Female |
