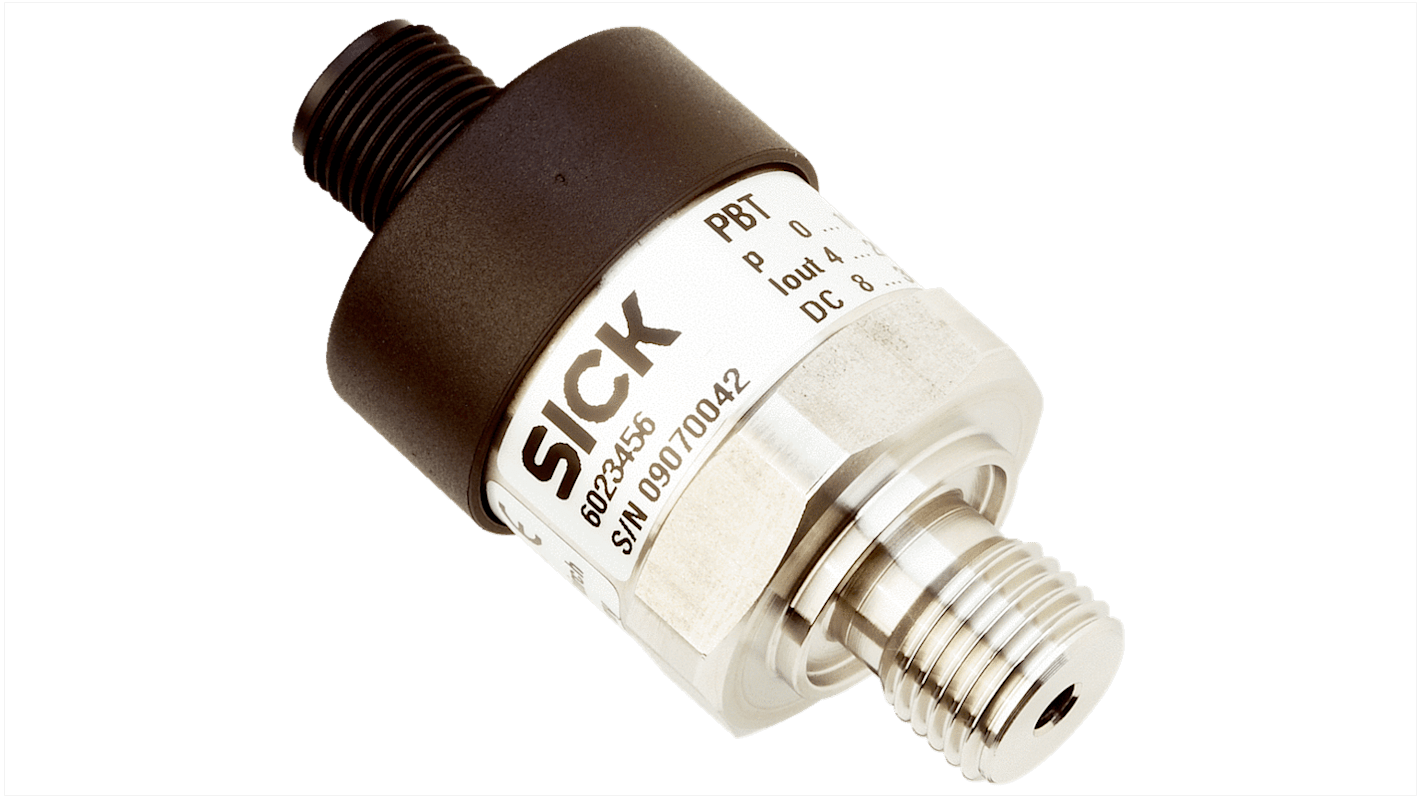

SICK PBT Series Pressure Sensor, 0bar Min, 1bar Max, Voltage Output, Relative Reading

RS Stock No.:: 213-3347
Mfr. Part No.:: PBT-RB1X0SG1SSNVMC0Z
Brand:: SICK

SICK PBT Series Pressure Sensor, 0bar Min, 1bar Max, Voltage Output, Relative Reading

Subtotal (1 unit)**

$262.94

(exc. GST)

$289.23

(inc. GST)

4 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit
1 +	$262.94

**price indicative

RS Stock No.:: 213-3347
Mfr. Part No.:: PBT-RB1X0SG1SSNVMC0Z
Brand:: SICK

Overview

At a glance

Pressure measurement ranges from 0 bar ... 0.05 bar up to 0 bar ... 1000 bar
Relative, absolute, and ± measuring ranges
Large number of process connections available
No mechanical moving parts. Hence no wear, fatigue, or maintenance
Circularly welded, hermetically sealed stainless steel membrane
Output signal 4 mA ... 20 mA, 0 V ... 5 V or 0 V ... 10 V
Electrical connection M12 x 1, angled plug (acc. to DIN 175301-803 A) or cable connection

Your Benefit

Compact size takes up less space
Simple and cost-saving installation
Available in a wide selection of configurations, enabling a perfect match to individual customer requirements
Robust design enables higher reliability
Excellent price/performance ratio

The PBT is a universal electronic pressure transmitter used in general industrial applications for pressure measurement of liquid and gaseous fluids. Suitable for standard measuring applications in machine and plant engineering, pressure control systems, hydraulics, pneumatics, etc., it supports a wide variety of configurations. and can thus provide the perfect match for individual customer requirements. Its precise and rugged measurement technology, compact dimensions, and quick and simple installation set the PBT apart as a genuinely talented all-rounder.

Applications

Pressure measurement in the hydraulic cylinder
Monitoring of pressure, flow, temperature and energy flows
Monitoring the pressing pressure
Pressure monitoring during material transportation
Pressure measurement in the hydraulic system
Pressure monitoring for hydraulic elevators
Cooling water pressure and temperature in blast air generation
Liquid natural and petroleum gas consumption at valve train burners at EAF
Cooling water pressure and temperature at ladle furnace during secondary metallurg
Cooling water pressure and temperature at vacuum degasser
Monitoring level and pressure of cooling water during continuous casting
Cooling water pressure and temperature at Ruhrstahl-Heraeus degasser
Monitoring of pressure and temperature at pressure reactor
Monitoring of pressure and temperature in red sludge conveyor system
Monitoring of pressure and temperature in crystallization container
Monitoring of pressure and temperature in collection and holding furnaces

Note

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Pressure Reading Type	Relative
	Minimum Pressure Reading	0bar
	Maximum Pressure Reading	1bar
	Accuracy	<±1 %
	Output Type	Voltage
	Media Measured	Air, Gas, Hydraulic Fluid, Liquid, Oil, Water
	Process Connection	G1/4
	Electrical Connection	M12 Connector
	Analogue Output	0 → 10 V
	Response Time	<4 ms
	Series	PBT
	Maximum Current	8 mA
	Supply Voltage	14 - 30 V
	Housing Material	Stainless Steel/Plastic
	IP Rating	IP67
	Mounting Type	Threaded
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	+80°C

	Select all
	Brand SICK
	Pressure Reading Type Relative
	Minimum Pressure Reading 0bar
	Maximum Pressure Reading 1bar
	Accuracy <±1 %
	Output Type Voltage
	Media Measured Air, Gas, Hydraulic Fluid, Liquid, Oil, Water
	Process Connection G1/4
	Electrical Connection M12 Connector
	Analogue Output 0 → 10 V
	Response Time <4 ms
	Series PBT
	Maximum Current 8 mA
	Supply Voltage 14 - 30 V
	Housing Material Stainless Steel/Plastic
	IP Rating IP67
	Mounting Type Threaded
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature +80°C
