- RS Stock No.:
- 167-4422
- Mfr. Part No.:
- PDB182-K220K-104B
- Brand:
- Bourns
On back order for despatch 15/07/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (In a Bag of 100)
$2.406
(exc. GST)
$2.647
(inc. GST)
Units | Per unit | Per Bag* |
100 - 400 | $2.406 | $240.60 |
500 + | $2.165 | $216.50 |
*price indicative |
- RS Stock No.:
- 167-4422
- Mfr. Part No.:
- PDB182-K220K-104B
- Brand:
- Bourns
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

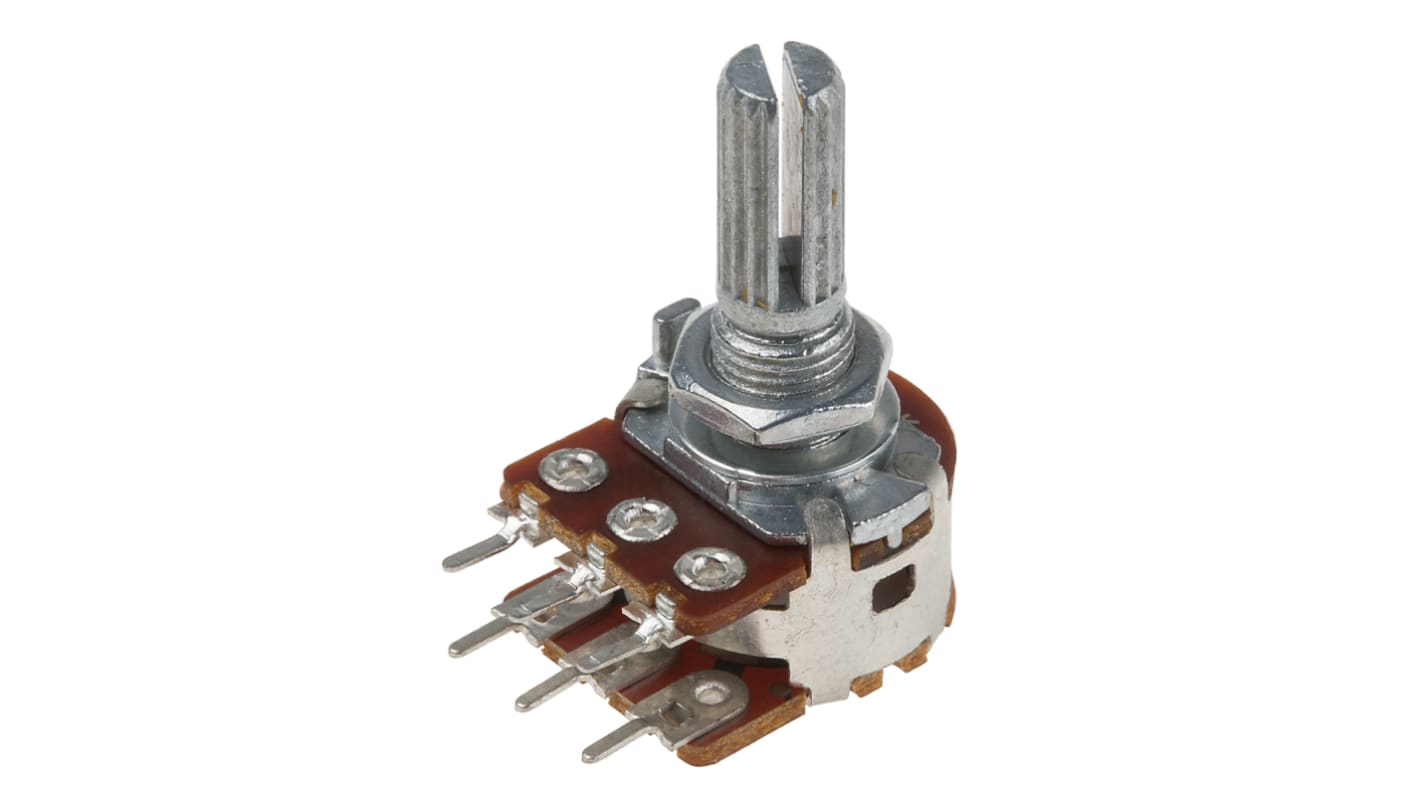

17mm Rotary Audio Potentiometer - PDB18 Series
Bourns PDB18 series dual gang drop-in replacement "audio pot" in a linear taper variant. Applications include Audio sets; Car radios; Amplifiers/mixers/drum machines/synthesizers; Appliances
Carbon element
Centre detent
Knurled metal shaft
PC Pins vertical//down facing
Centre detent
Knurled metal shaft
PC Pins vertical//down facing
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Potentiometer Type | Rotary |
Maximum Resistance | 100kΩ |
Number of Gangs | 2 |
Number of Turns | 1 |
Power Rating | 0.125W |
Electrical Taper | Linear |
Element Material | Carbon |
Mounting Type | Panel Mount, Through Hole |
Termination Style | PC Pin |
Shaft Length | 20mm |
Shaft Diameter | 6 mm |
Actuator Type | Knurled Shaft |
Series | PDB18 |
Tolerance | ±20% |
