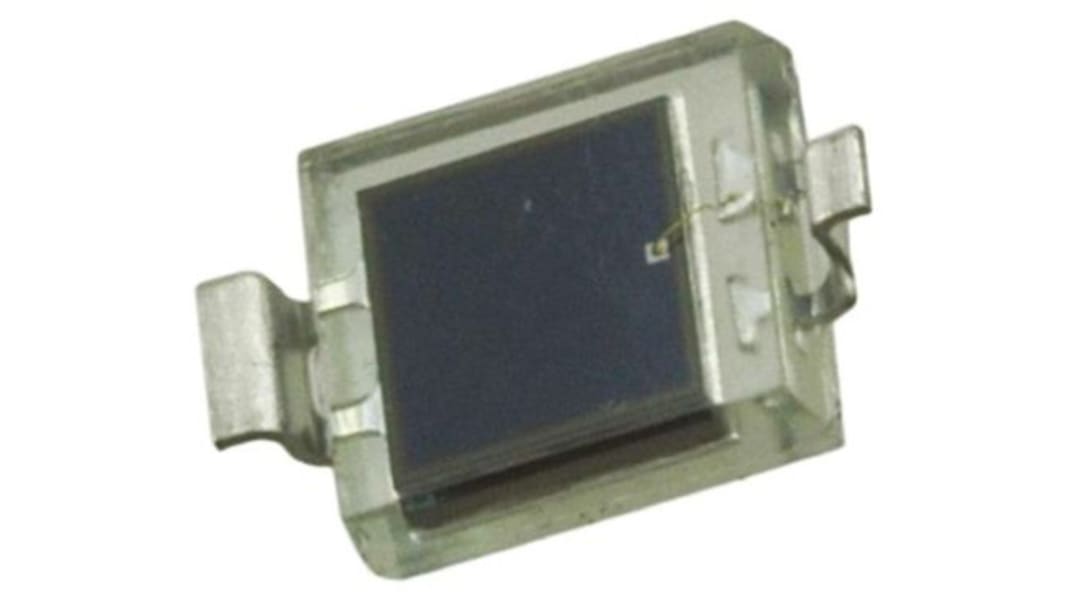

Vishay, VBPW34SR IR + Visible Light Si Photodiode, Surface Mount Reverse Gullwing
- RS Stock No.:
- 919-0988
- Mfr. Part No.:
- VBPW34SR
- Brand:
- Vishay
1000 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (On a Reel of 1000)
$0.636
(exc. GST)
$0.70
(inc. GST)
| Units | Per unit | Per Reel* |
| 1000 - 1000 | $0.636 | $636.00 |
| 2000 - 3000 | $0.631 | $631.00 |
| 4000 + | $0.621 | $621.00 |
| *price indicative | ||
- RS Stock No.:
- 919-0988
- Mfr. Part No.:
- VBPW34SR
- Brand:
- Vishay
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PH
Product Details
VBPW34 Series PIN Photodiodes
The VBPW34S and VBPW34SR series, from Vishay Semiconductor, are a family of silicon PIN photodiodes. They offer high speed and high sensitivity. The VBPW34S and VBPW34SR devices come in surface mount (SMD) packages containing a 7.5mm² chip. These PIN photodiodes are for detecting visible and near IR radiation.
Features of the VBPW34S and VBPW34SR PIN photodiodes:
SMD packages
Lead types: gull-wing (GW) and reverse gull-wing (RGW)
Dimensions: 6.4 x 3.9 x 1.2 mm
Fast response times
SMD packages
Lead types: gull-wing (GW) and reverse gull-wing (RGW)
Dimensions: 6.4 x 3.9 x 1.2 mm
Fast response times
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Photodiodes, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Spectrums Detected | Infrared, Visible Light |
| Wavelength of Peak Sensitivity | 940nm |
| Package Type | Reverse Gullwing |
| Mounting Type | Surface Mount |
| Amplifier Function | No |
| Number of Pins | 2 |
| Diode Material | Si |
| Minimum Wavelength Detected | 430nm |
| Maximum Wavelength Detected | 1100nm |
| Length | 4.4mm |
| Width | 3.9mm |
| Height | 1.2mm |
