- RS Stock No.:
- 348-1777
- Mfr. Part No.:
- 40T-72-4-00-RR-00-9
- Brand:
- Gefran
1 In Global stock for delivery within 5 working day(s)
8 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$610.99
(exc. GST)
$672.09
(inc. GST)
Units | Per unit |
1 - 9 | $610.99 |
10 - 49 | $589.61 |
50 + | $562.12 |
- RS Stock No.:
- 348-1777
- Mfr. Part No.:
- 40T-72-4-00-RR-00-9
- Brand:
- Gefran
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- IT
Product Details

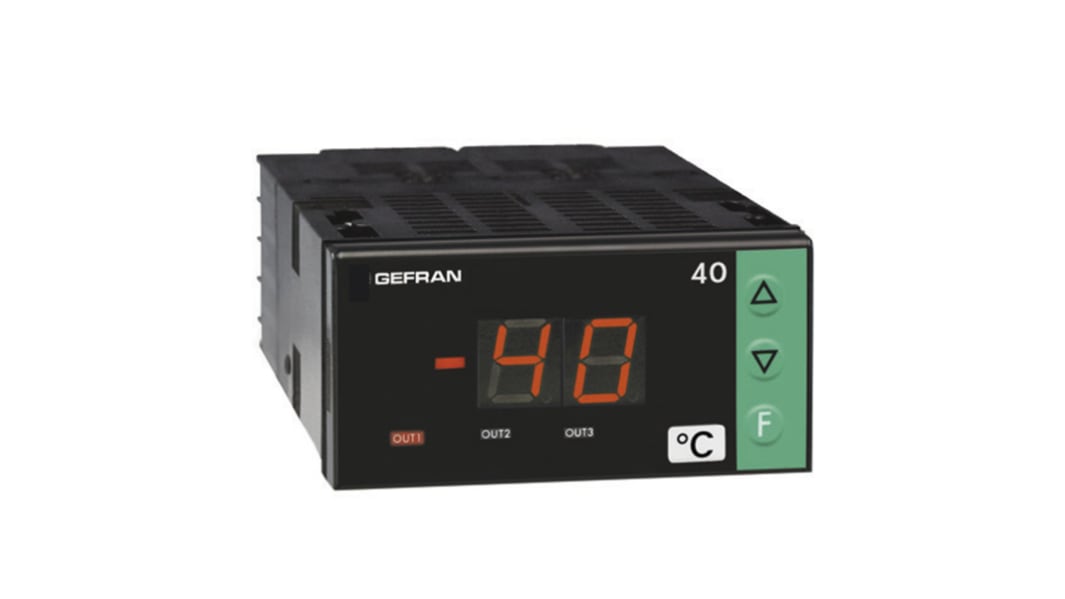

Indicators with configurable threshold and 40T series universal input
Universal process indicators that are fully configurable with linear input signal range, thermoresistance, thermocouple or thermistor.
2 configurable alarm outputs and normally open contact (N/O).
Indication of the size measured by an adhesive label on the front face (for most common physical units).
Indication of over or under-scale measurement for linear inputs.
Identification of temperature probe cut-out or short circuit.
Version 48 x 96 with 4 / 20mA recopy output or with 4 / 20 mA sensor supply and recopy.
The model with 4 / 20 mA sensor power supply and recopy features a 3rd output relay.
2 configurable alarm outputs and normally open contact (N/O).
Indication of the size measured by an adhesive label on the front face (for most common physical units).
Indication of over or under-scale measurement for linear inputs.
Identification of temperature probe cut-out or short circuit.
Version 48 x 96 with 4 / 20mA recopy output or with 4 / 20 mA sensor supply and recopy.
The model with 4 / 20 mA sensor power supply and recopy features a 3rd output relay.
Specifications
Attribute | Value |
---|---|
Supply Voltage | 11 to 27 V dc, 18 to 27 V ac |
Minimum Temperature | 0°C |
Maximum Temperature | +50°C |
Series | 40T |
