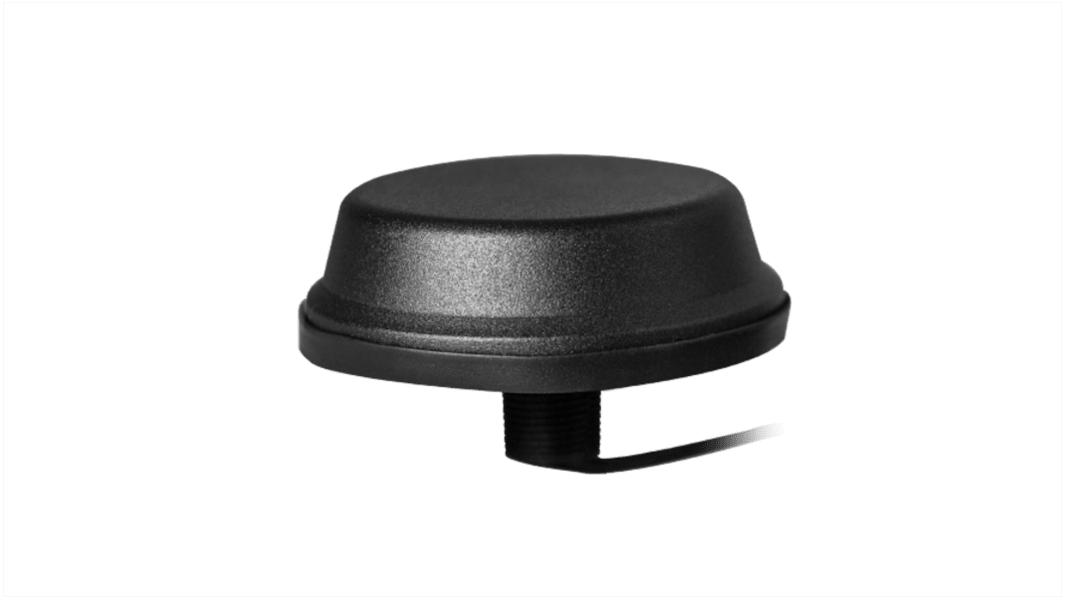

Siretta TANGO44/2.5M/LL/SMAM/S/S/19 Puck Multiband Antenna with SMA Male Connector, 5G, 5G (LTE), 4G, 4G (LTE Cat-M),
- RS Stock No.:
- 140-8070
- Mfr. Part No.:
- TANGO44/2.5M/LL/SMAM/S/S/19
- Brand:
- Siretta
594 In Global stock for delivery within 10 working day(s)
Price (ex. GST) 1 Bag of 1
$60.26
(exc. GST)
$66.29
(inc. GST)
Bag(s) | Per Bag |
---|---|
1 - 4 | $60.26 |
5 + | $54.23 |
- RS Stock No.:
- 140-8070
- Mfr. Part No.:
- TANGO44/2.5M/LL/SMAM/S/S/19
- Brand:
- Siretta
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
TANGO 44 GPRS/UMTS/LTE Antennas, Siretta
Siretta Tango 44 - 5G/4G/Dual Band Wi-Fi/Bluetooth/LoRa/SigFox Puck Antenna SMA Male Connector 2.5M Low Loss Cable
The Tango 44 is a wide band antenna with an even spread performance across the usable spectrum which allows it to be used in the ISM bands, key 4G LTE and 5G NR bands, as well as Bluetooth and the Zigbee band allocation. It also performs well as a dual band Wi-Fi antenna, coverng the 2.4 GHz and 5 GHz bands.
As well as its great RF performance, its wide operating temperature range and IP67 rated weather resistance makes it perfect for outdoor use.
The sleek design and secure mounting style of the Tango 44 makes it the perfect choice for anti-vandal and covert applications.
Supplied as standard with SMA male connectors in three cable lengths, 1, 2.5 and 5m.
Alternative cable lengths and connectors can be specified for volume orders.
As well as its great RF performance, its wide operating temperature range and IP67 rated weather resistance makes it perfect for outdoor use.
The sleek design and secure mounting style of the Tango 44 makes it the perfect choice for anti-vandal and covert applications.
As well as its great RF performance, its wide operating temperature range and IP67 rated weather resistance makes it perfect for outdoor use.
The sleek design and secure mounting style of the Tango 44 makes it the perfect choice for anti-vandal and covert applications.
Supplied as standard with SMA male connectors in three cable lengths, 1, 2.5 and 5m.
Alternative cable lengths and connectors can be specified for volume orders.
As well as its great RF performance, its wide operating temperature range and IP67 rated weather resistance makes it perfect for outdoor use.
The sleek design and secure mounting style of the Tango 44 makes it the perfect choice for anti-vandal and covert applications.
Key Features
Supports 5G NR / 4G LTE / 3G UMTS / 2G GSM
Supports LTE Cat M, LTE Cat NB, NR Cat NB bands
Supports Wi-Fi 2.4GHz and 5GHz spectrum
Supports LoRa, Sigfox, ISM 868 MHz, ISM 915 MHz, IEEE 802.15.4
Supports Bluetooth, Zigbee, WLAN2400, WLAN5800, ISM 2.4 GHz, ISM 5.8 GHz
IP67 weatherproof rating makes it suitable for internal or external use
Low profile design for covert and anti-theft applications
Supports LTE Cat M, LTE Cat NB, NR Cat NB bands
Supports Wi-Fi 2.4GHz and 5GHz spectrum
Supports LoRa, Sigfox, ISM 868 MHz, ISM 915 MHz, IEEE 802.15.4
Supports Bluetooth, Zigbee, WLAN2400, WLAN5800, ISM 2.4 GHz, ISM 5.8 GHz
IP67 weatherproof rating makes it suitable for internal or external use
Low profile design for covert and anti-theft applications
Additional Considerations
Wide Operating Temperature Range
Weather Resistant (See IP67 Certification)
Low Loss Cable
Weather Resistant (See IP67 Certification)
Low Loss Cable
Electrical Specifications
Impedance: 50 Ohm
Polarization: Vertical
Max Input Power: 50 W
Ground plane independent: Yes
Polarization: Vertical
Max Input Power: 50 W
Ground plane independent: Yes
Environmental Specifications
Mechanical Specifications
Dimensions: 23 mm height x 80 mm diameter
Weight: 80 g
Connector: SMA Male
Cable: RG174
Mounting method: M17 Screw Mount
Mounting Screw Length: 22 mm
Max Panel Thickness: 10 mm
Radome materials: Nylon PA6
Weight: 80 g
Connector: SMA Male
Cable: RG174
Mounting method: M17 Screw Mount
Mounting Screw Length: 22 mm
Max Panel Thickness: 10 mm
Radome materials: Nylon PA6
Multi-band Antennas, Siretta
Specifications
Attribute | Value |
---|---|
RF Protocols | 5G, 5G (LTE), 4G, 4G (LTE Cat-M), 4G (LTE), 4G (LTE) 5G (LTE), 3G (UMTS), 2G (GSM/GPRS), Wi-Fi, Wi-Fi (Dual Band), Omni-directional, NB-IoT, NB IoT, LoRaWAN, ISM, ISM Band, LoRaWan, Cat M, Bluetooth (BLE), IEEE 802.15.4, Wi-Fi 6, Zigbee |
Frequency Range | 699 → 6000 Mhz |
Connector Type | SMA Male |
Internal/External | External, Internal |
Antenna Physical Form | Puck |
Gain | 0 → 8dBi |
Antenna Mounting Type | Panel Mount, Screw, Through Hole, Through Hole/Bolted |
Lead Length | 2.5m |
Series | Tango 44 |
Antenna Directivity | Omnidirectional |
Includes Lead | Yes |
Antenna Internal Construction | Low Profile |
Connector Gender | Male |
