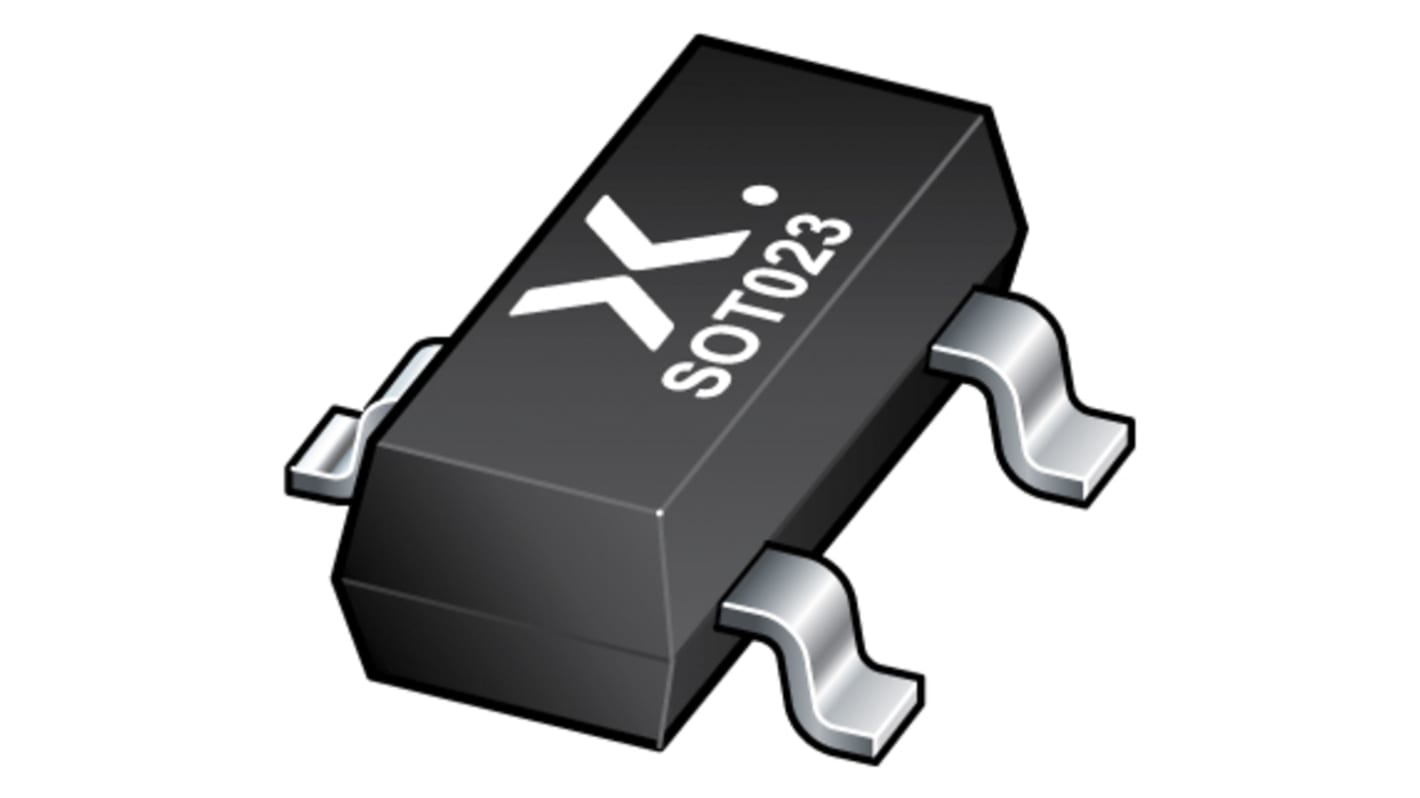

N-Channel MOSFET, 270 mA, 60 V, 3-Pin SOT-23 Nexperia NX7002BKR
- RS Stock No.:
- 151-2607
- Mfr. Part No.:
- NX7002BKR
- Brand:
- Nexperia
36000 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each (On a Reel of 3000)
$0.043
(exc. GST)
$0.047
(inc. GST)
| Units | Per unit | Per Reel* |
| 3000 - 3000 | $0.043 | $129.00 |
| 6000 - 9000 | $0.042 | $126.00 |
| 12000 + | $0.041 | $123.00 |
| *price indicative | ||
- RS Stock No.:
- 151-2607
- Mfr. Part No.:
- NX7002BKR
- Brand:
- Nexperia
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Logic- and Standard Level MOSFETs in a variety of packages, Sample our robust and easy-to-use MOSFETs in the 40 V to 60 V range, part of our massive MOSFET device portfolio. They are perfect for space- and power-critical applications, delivering excellent switching performance and class-leading safe operating area (SOA).
60 V, N-channel Trench MOSFET, N-channel enhancement mode Field-Effect Transistor (FET) in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
Logic-level compatible
Very fast switching
Trench MOSFET technology
ElectroStatic Discharge (ESD) protection > 2 kV HBM
Very fast switching
Trench MOSFET technology
ElectroStatic Discharge (ESD) protection > 2 kV HBM
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 270 mA |
| Maximum Drain Source Voltage | 60 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 2.8 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.1V |
| Minimum Gate Threshold Voltage | 1.1V |
| Maximum Power Dissipation | 1670 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 20 V |
| Width | 1.4mm |
| Number of Elements per Chip | 1 |
| Length | 3mm |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 1 nC @ 10 V |
| Height | 1mm |
| Minimum Operating Temperature | -55 °C |
