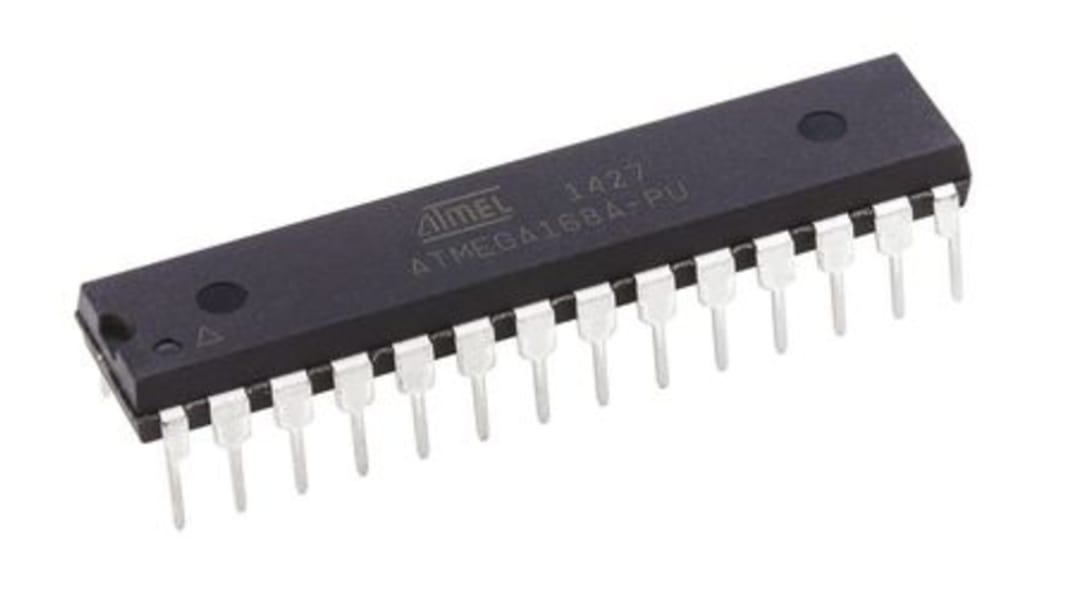

Microchip ATMEGA168A-PU, 8bit AVR Microcontroller, ATmega, 20MHz, 16 kB Flash, 28-Pin PDIP
- RS Stock No.:
- 127-8261
- Mfr. Part No.:
- ATMEGA168A-PU
- Brand:
- Microchip
1 / 1
Discontinued product
- RS Stock No.:
- 127-8261
- Mfr. Part No.:
- ATMEGA168A-PU
- Brand:
- Microchip
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Family Name | ATmega | |
| Package Type | PDIP | |
| Mounting Type | Through Hole | |
| Pin Count | 28 | |
| Device Core | AVR | |
| Data Bus Width | 8bit | |
| Program Memory Size | 16 kB | |
| Maximum Frequency | 20MHz | |
| RAM Size | 1 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 1 | |
| Typical Operating Supply Voltage | 1.8 → 5.5 V | |
| Dimensions | 34.79 x 7.49 x 4.06mm | |
| Minimum Operating Temperature | -40 °C | |
| ADCs | 1(8 x 10 bit) | |
| Length | 34.79mm | |
| Maximum Operating Temperature | +85 °C | |
| Width | 7.49mm | |
| Height | 4.06mm | |
| Program Memory Type | Flash | |
| Number of ADC Units | 1 | |
| Pulse Width Modulation | 1 (6 Channel) | |
| Instruction Set Architecture | RISC | |
