Saia-Burgess Roller Lever Micro Switch, Solder Terminal, 10.1 A @ 250 V ac, SPDT, IP40
- RS Stock No.:
- 173-9389
- Mfr. Part No.:
- XCF3-S1-Z1
- Brand:
- Saia-Burgess

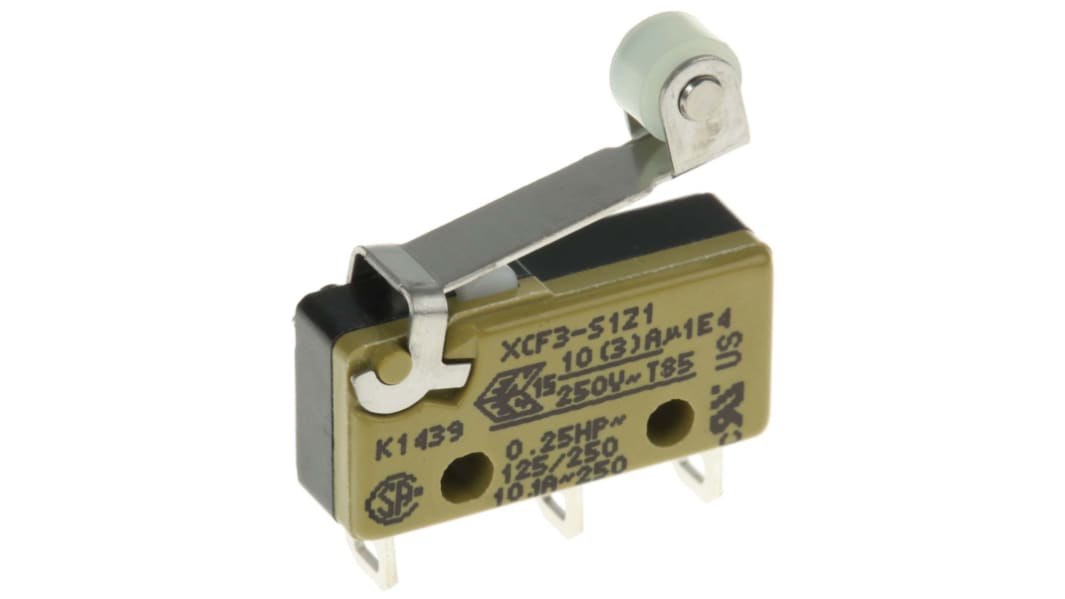

This image is representative of the product range
1 / 1
Discontinued product
- RS Stock No.:
- 173-9389
- Mfr. Part No.:
- XCF3-S1-Z1
- Brand:
- Saia-Burgess
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Saia-Burgess | |
| Actuator Type | Roller Lever | |
| Terminal Type | Solder | |
| Contact Current Rating | 10.1 A @ 250 V ac | |
| Contact Configuration | SPDT | |
| IP Rating | IP40 | |
| Operating Force | 1.1 N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Contact Material | Fine Silver | |
| Case Material | Thermosetting Formaldehyd Melamine | |
| Mechanical Life | 50000000Operations | |
| Release Force | 0.17N | |
| Operating Temperature Range | -40 → +85°C | |
Select all | ||
|---|---|---|
Brand Saia-Burgess | ||
Actuator Type Roller Lever | ||
Terminal Type Solder | ||
Contact Current Rating 10.1 A @ 250 V ac | ||
Contact Configuration SPDT | ||
IP Rating IP40 | ||
Operating Force 1.1 N | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Contact Material Fine Silver | ||
Case Material Thermosetting Formaldehyd Melamine | ||
Mechanical Life 50000000Operations | ||
Release Force 0.17N | ||
Operating Temperature Range -40 → +85°C | ||
